Wellis Igneus Installationsanleitung Seite 7

FIG 6
FIG 9

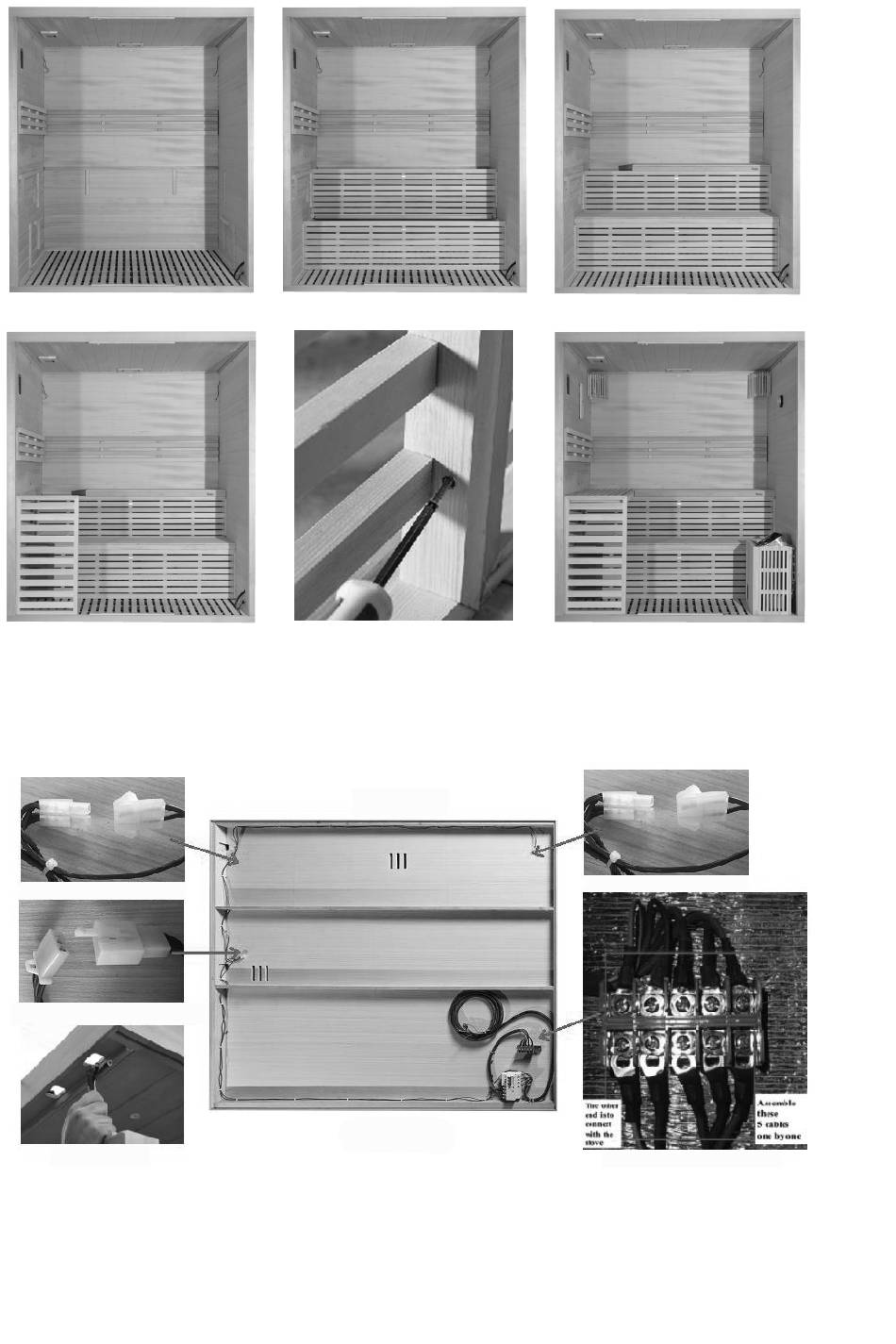

Pull the cables of Explosion proof lamp, Explosion proof lamp button and stove cables
(5pins cable: 3L (brown/gray/black color), 1N (blue color) and 1GND (yellow-green color) )
through the holes to the top. Connect roof cables together. See FIG-12.
Explosion proof lamp
Explosion proof lamp button
Roof cables
A. These wires are connected well in our factory.
B. The other end is to connected with the stove.
C. Assemble these 5 cables one by one.
FIG 7
FIG 10
Roof panel
FIG 12
FIG 8
FIG 11
Explosion proof lamp
A.
B.
Stove cables connector
C.
