Wellis Igneus Installationsanleitung Seite 5

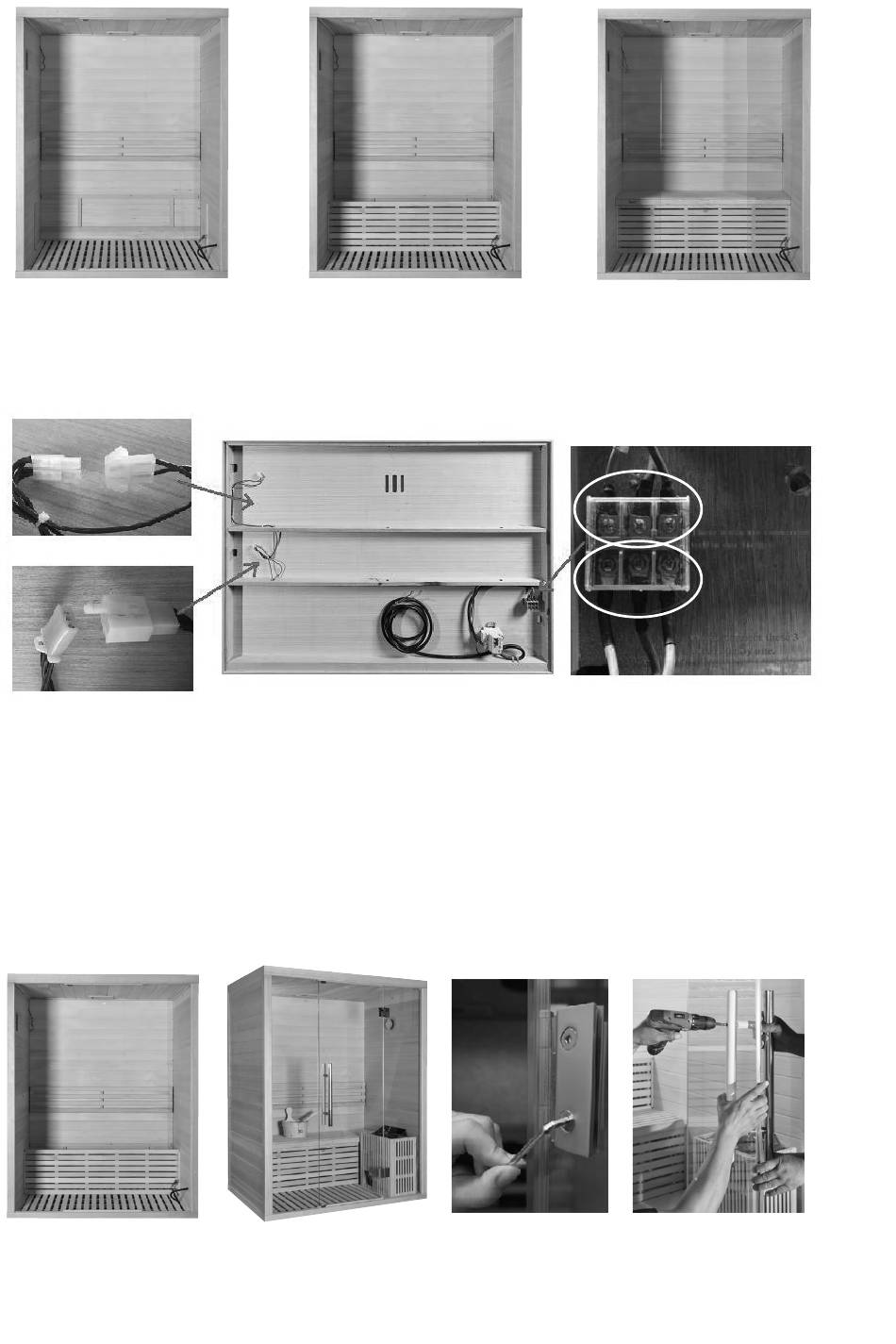

FIG 6
Pull the cables of Explosion proof lamp, Explosion proof lamp button and stove cables
(3pins cable: 1L (brown color), 1N (blue color) and 1GND (yellow-green color) ) through
the holes to the top. Connect roof cables together. See FIG-9.
Explosion proof lamp
Explosion proof lamp button
A. These wires are connected well in our
factory.
4. Align the side glass with bottom panel corresponding battens. Need one people hold up
the roof panel, another people put side glass into correct location. (be careful, glass is
very heavy). See FIG-10. Install the glass door and use wrench fasten the screws on
door hinges. See FIG 11 and 12. Install door handle. See FIG 13.
FIG 10
Other spare parts installation ways please refer to Accessories installation.
FIG 7
Roof panel
B. Please connect these 3 wires one by
one.
FIG 9.
FIG 11
Stove cables connector
FIG 12
FIG 8
A.
B.
FIG 13
