Straight Style B-General guide:
EN

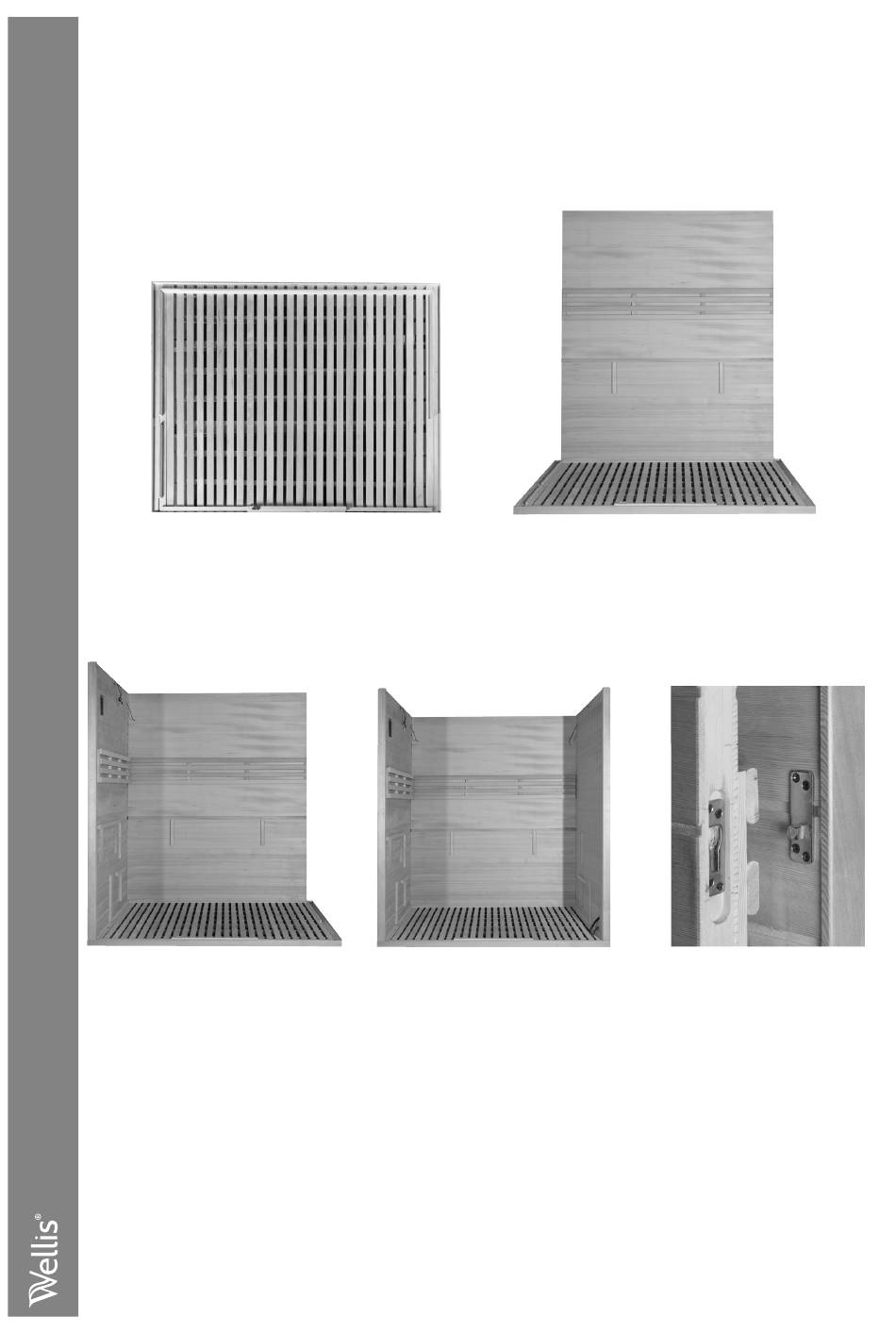

1. Place the bottom panel in the desired location (it's better in bath room near the
drainage) and assembling back panel. Make sure they are in line. At this point,
someone should be hold the rear panel until the next connection is made. SEE FIG 1
and 2.
2. Install the left and right side panels as below image FIG 3 and 4. Tighten the back
panels and sides panels with embedded latching system. See FIG 5.
FIG 3
3. Install roof panel, see FIG 6. Install bench support (See FIG 7) and bench (See FIG 8).
Then install corner bench support and use screws fixed on left side wood panel. (See
FIG 9 and 10). Finally install corner bench (See FIG 11). Slide the bench supporter
between the two vertical guides on the side panels. Install the bench top by placing it
on top of the bench stand and the horizontal guide on the rear panel.
FIG 1 FIG 2
FIG 4 FIG 5
