Rims

CAUTION against rim wear!
Check the condition of your rims regularly. Please
contact your dealer in time.
RISK OF FALL AND ACCIDENT!
Rim wear indicator:
Many aluminium rims are equipped with a wear indicator.
Request your dealer to provide detailed information.
Chain tensioning
Ensure that the chain is tensioned correctly; it is the most
important part of the drive module. A regular check is necessary
since the chain stretches in course of time. If necessary get the
chain re-tensioned by the dealer.

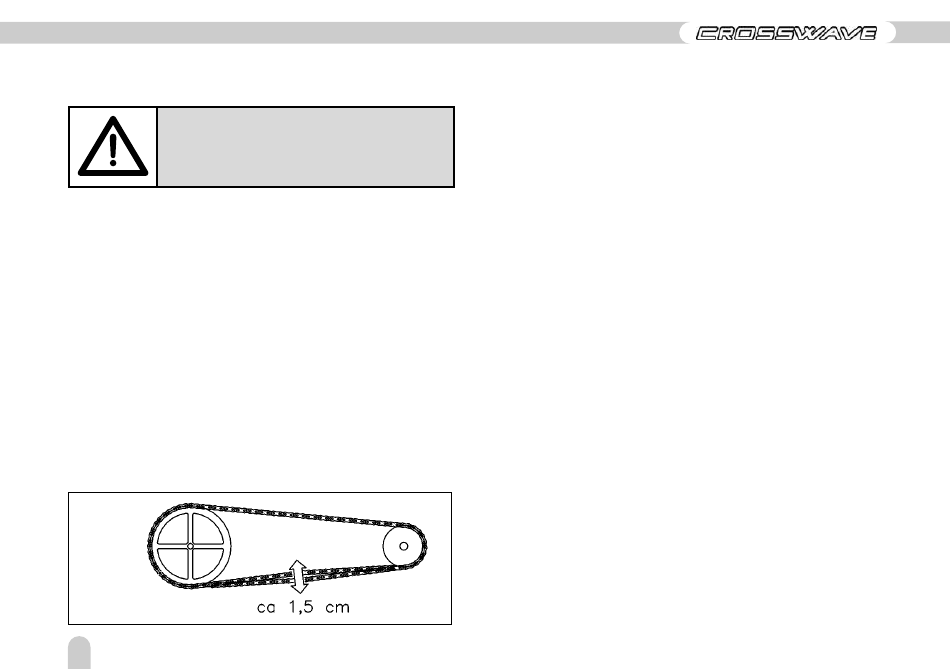

As shown in Figure 18, it should be possible to slightly move
the chain up and down by approximately 1.5 cm at the centre
of the two sprockets.
Figure 18
96

Torque specifications

Axle nuts of front wheel
Axle nuts of rear wheel
Foot pedal mounting
Brake pad mounting
Dynamo mounting
Other screws:
M4
M5
M6
M8
M10

Operation of the Pedelec Drive

For operation of the bike's functions, please refer to "General
operation".
The LCD instrument display to control the electrical auxiliary
actuator (Fig. 20) is located in the middle of the handlebars.
The ED-3.2 EX Pedelec can be switched on and off using this
panel and the desired operation mode activated.
The system is switched on by pressing and holding the On/Off
button at the bottom right of the panel. Use the arrow keys on
the left-hand side of the panel to select between the three
riding modes.
20 Nm
25 Nm
30 Nm
5 Nm
10 Nm
2,1 Nm
4,2 Nm
7,3 Nm
17 Nm
34 Nm
