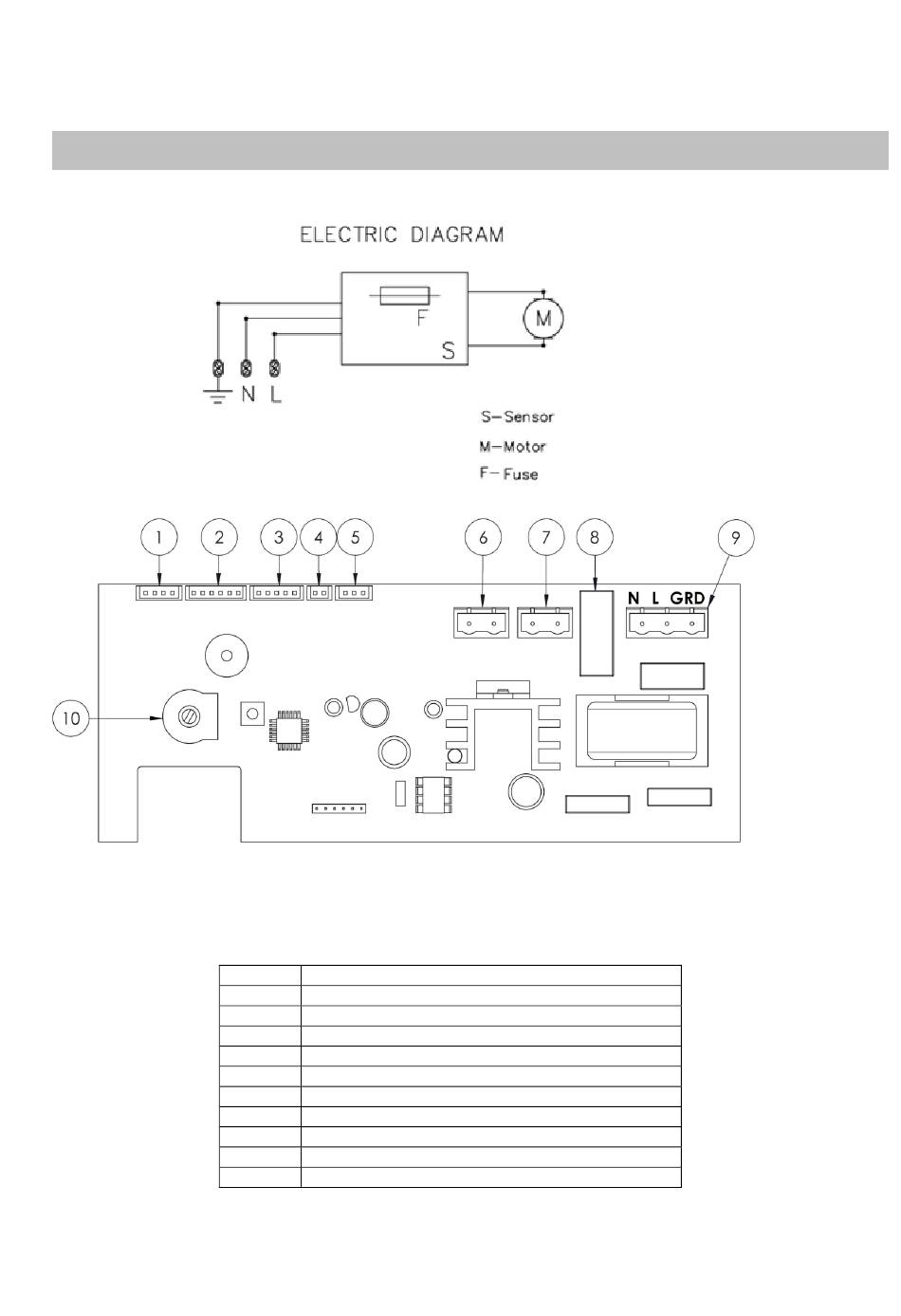

CONNECTION DIAGRAM

Figure 11
Figure 12
Numero Componente
1 IR receiver PCB wires
2 IR emitter PCB wires
3 Information light led PCB
4 Water level sensor
5 Heating element swich
6 Heating element connexion
7 Motor connexion
8 Fuse
9 Power supply wires
10 Power regulator
