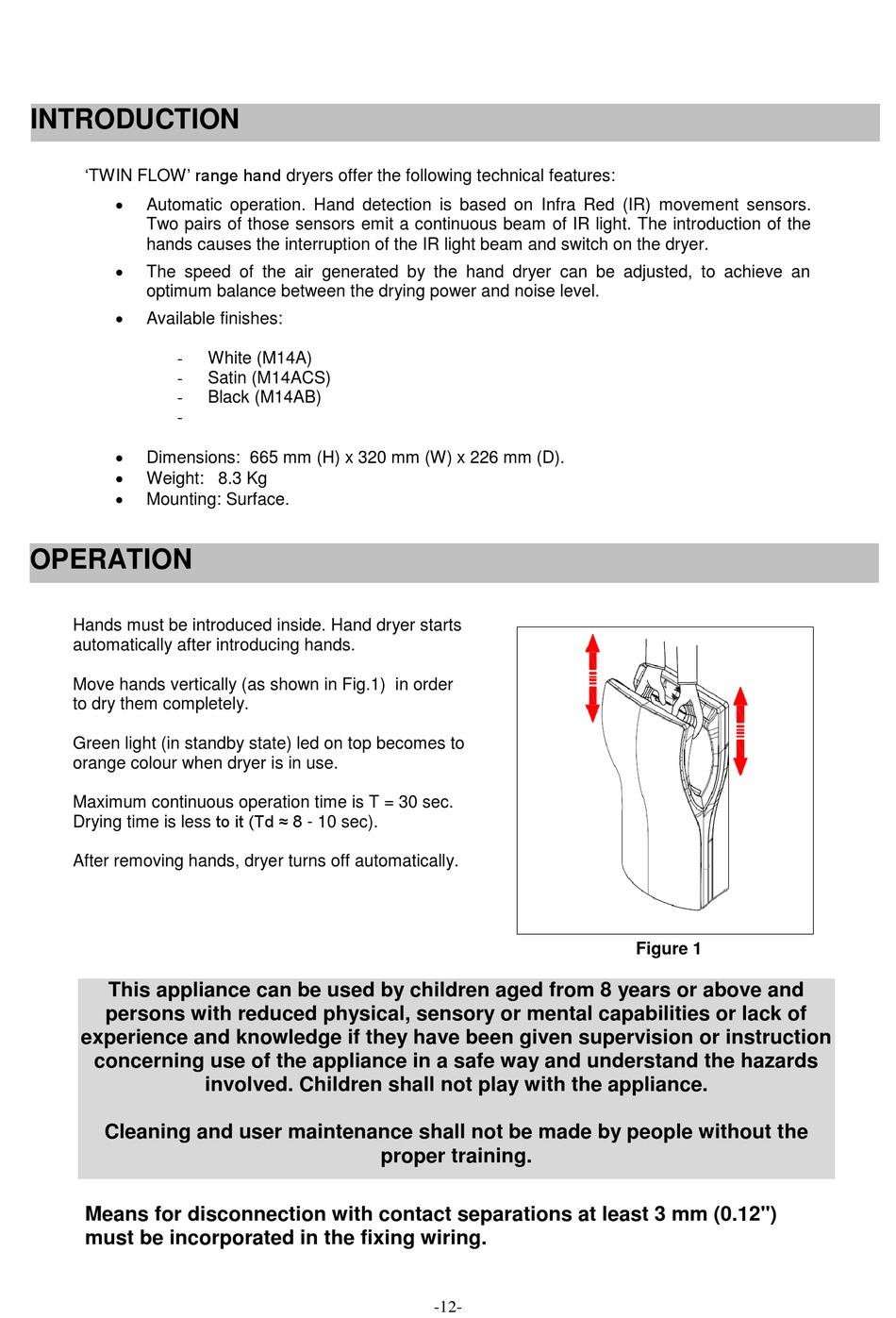

INTRODUCTION
'TWIN FLOW' range hand dryers offer the following technical features:

Automatic operation. Hand detection is based on Infra Red (IR) movement sensors.
Two pairs of those sensors emit a continuous beam of IR light. The introduction of the
hands causes the interruption of the IR light beam and switch on the dryer.

The speed of the air generated by the hand dryer can be adjusted, to achieve an
optimum balance between the drying power and noise level.

Available finishes:
-
-
-
-

Dimensions: 665 mm (H) x 320 mm (W) x 226 mm (D).

Weight: 8.3 Kg

Mounting: Surface.

OPERATION

Hands must be introduced inside. Hand dryer starts
automatically after introducing hands.
Move hands vertically (as shown in Fig.1) in order
to dry them completely.
Green light (in standby state) led on top becomes to
orange colour when dryer is in use.
Maximum continuous operation time is T = 30 sec.
Drying time is less to it (Td ≈ 8 - 10 sec).
After removing hands, dryer turns off automatically.
This appliance can be used by children aged from 8 years or above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
Cleaning and user maintenance shall not be made by people without the
Means for disconnection with contact separations at least 3 mm (0.12")
must be incorporated in the fixing wiring.
White (M14A)
Satin (M14ACS)
Black (M14AB)
involved. Children shall not play with the appliance.
proper training.
-12-
Figure 1
