JETI model MEZON PRO Benutzerhandbuch Seite 19

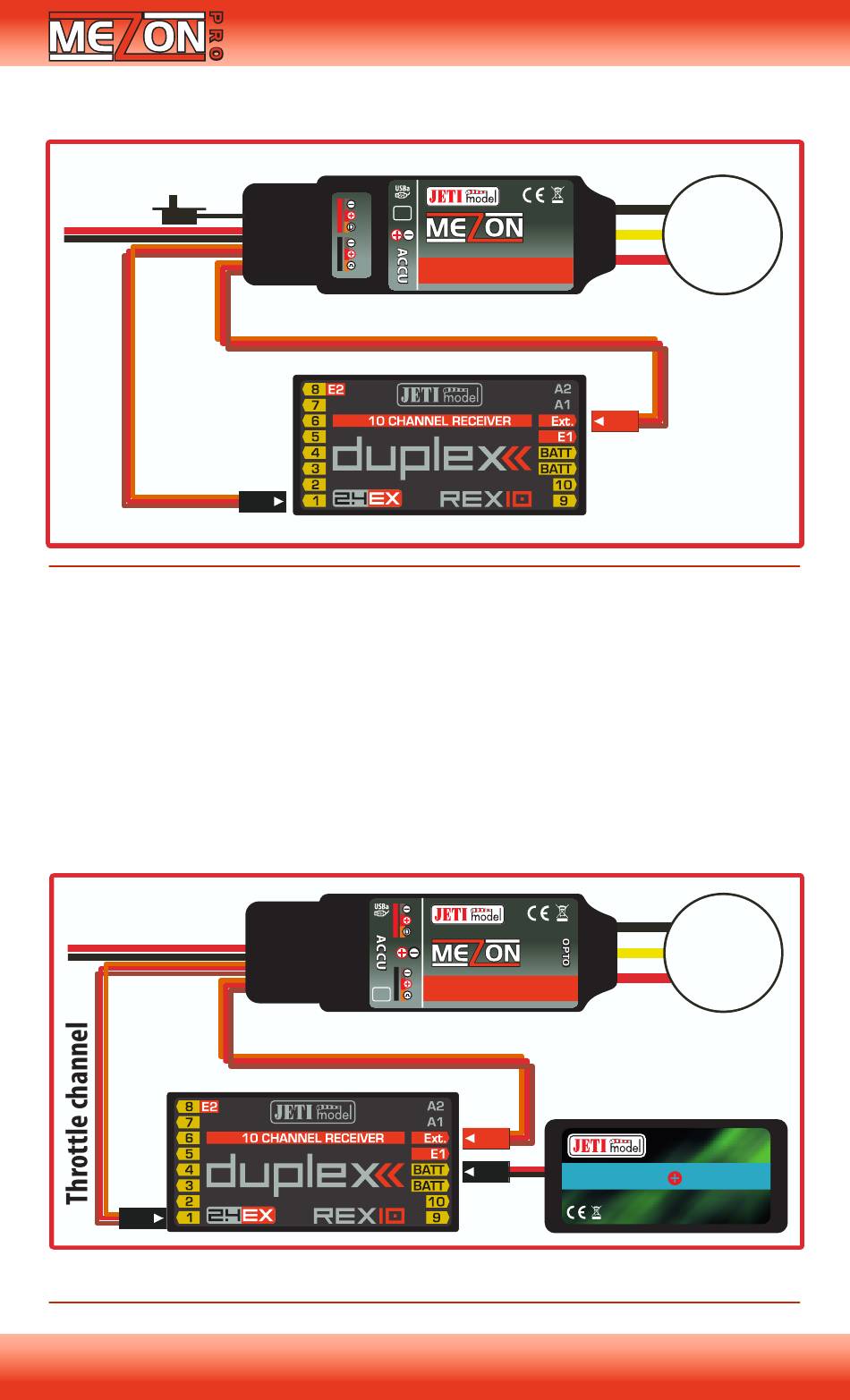

Mezon Pro ( 40LMR / 50 / 70LMR /80 ) connections
Switch BEC
Battery
Throttle
channel
BEC output
2.3 OPTO-Version of the MEZON PRO Controller
The Mezon Pro Opto controller has a galvanic isolation for
input/output signals. The switch regulator (BEC) is not included.
This means that a separate receiver and servo current source must
be provided. The incoming and outgoing signals of OPTO
controllers have no electric connection to the motor battery
Connection of Mezon Pro 55 opto, 85 opto
Battery
Y1
E
Setup
x
DC/DS
t.
R
x
Y1
Setup
DC/DS
Telemetry
19
P R O P R O
80 80
switching BEC - adjustable voltage switching BEC - adjustable voltage
ELECTRONIC SPEED CONTROLLER ELECTRONIC SPEED CONTROLLER
2 - 12 LiXX / 6 - 51V 2 - 12 LiXX / 6 - 51V
E
x
t.
P R O P R O
85 85
R
2 - 12 LiXX / 5 - 51V 2 - 12 LiXX / 5 - 51V
x
Ext.
BATT Power I n
M
Telemetry
BEC output
Ext.
M
Receiver Battery
RECEIVER BATTERY
RB 3 100
Nominal capacity: 3.1Ah
Nominal voltage: max. 7.2V
EN
