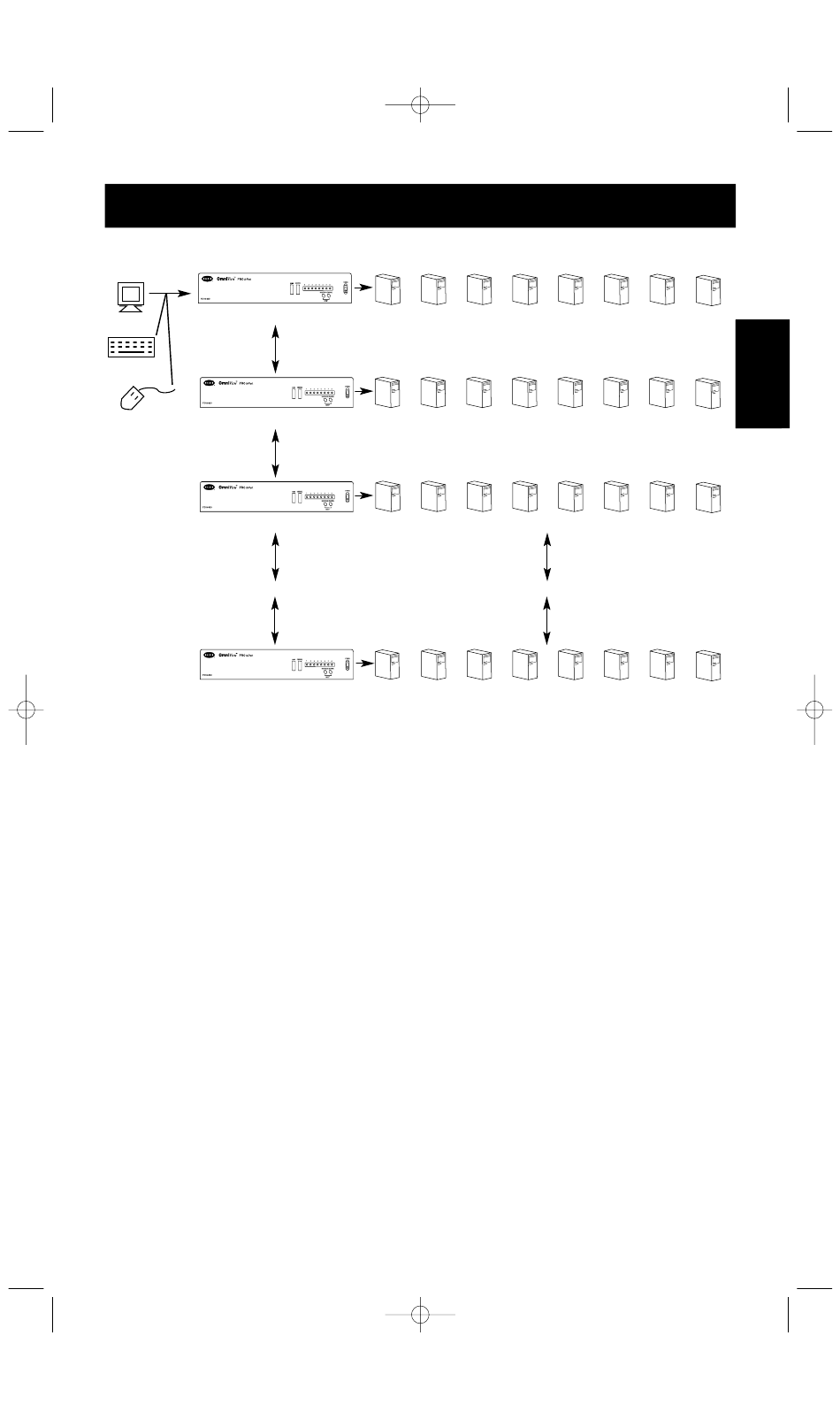

Single-unit operation or Daisy-chained operation
The OmniView
PRO has the capability to be daisy-chained to 15 more units (for a total of
™
16), giving the user control over a maximum of 128 computers!
Each OmniView
™
BANK numbers range from 0 to F (hexadecimal), for a total of 16 BANKs. BANK 0 is the
MASTER bank, while banks 1 through F are slave banks. The MASTER bank is the unit that
connects to the console keyboard, mouse, and monitor.
The DIP switches must be set correctly for proper identification and usage. See the next
section for the actual settings. If you are using the OmniView
configuration, it must be set as the MASTER (BANK 0). If it is to be used as a slave unit,
then it must be set to any unused unique bank number from 1 through F.
4/21/00
2:25 PM
Hardware Installation
Bank 0 (Master)
Bank 1 (slave)
Bank 2 (slave)
etc...
Bank F (slave)
121
PRO unit is defined as a BANK. See diagram above for more information.
