Operating Elements And Connections - EuroLite DXT-SP 1IN/4OUT Bedienungsanleitung

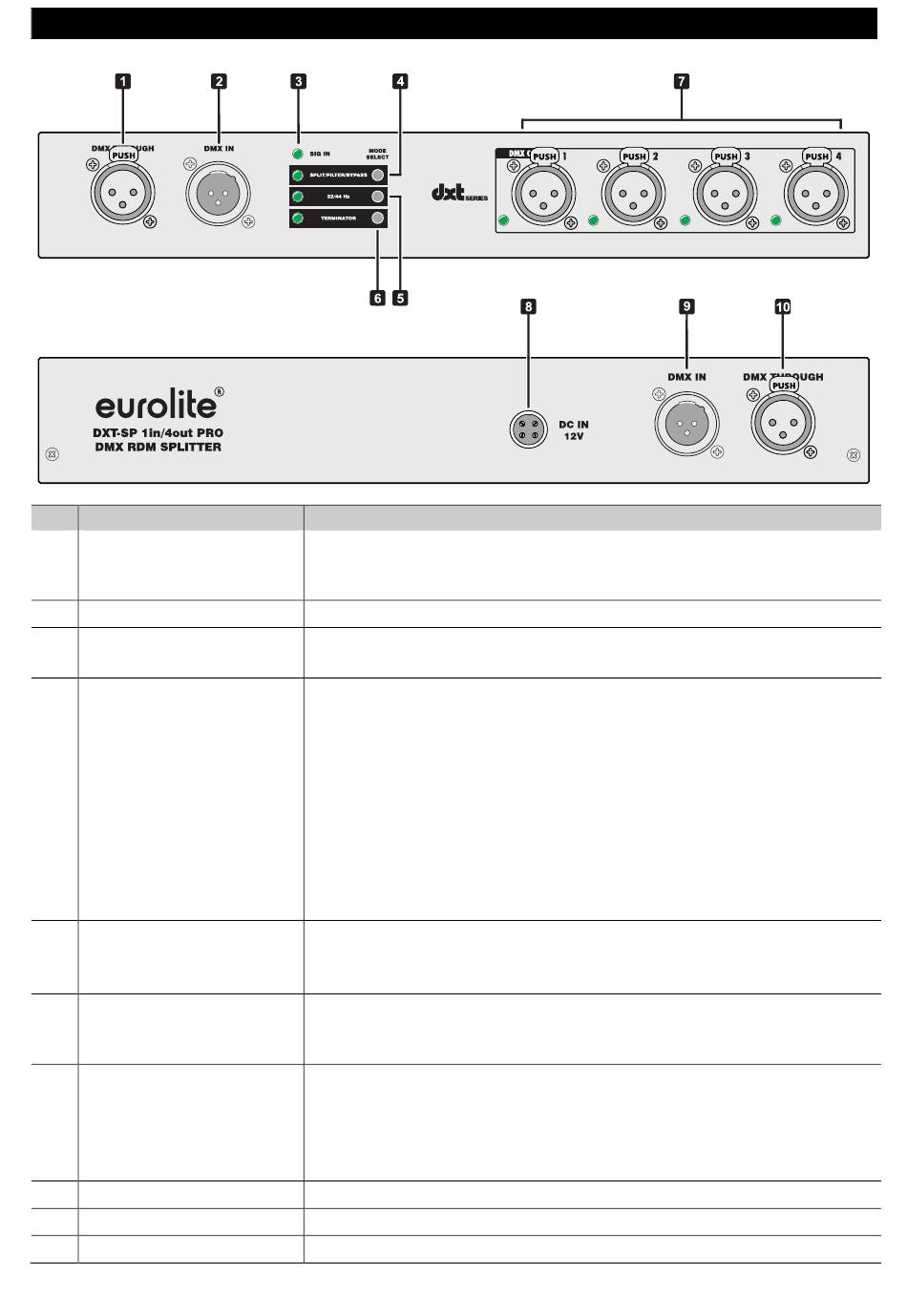

No. Element
1 DMX512 feed-through
output
2 DMX512 input
3 SIG IN indicator
4 SPLIT/FILTER/
BYPASS switch with LED
5 22/44 Hz switch with LED
6 TERMINATOR selector
switch with LED
7 DMX512 outputs 1 – 4
with LED
8 Power input
9 DMX512 input
10 DMX512 feed-through output

OPERATING ELEMENTS AND CONNECTIONS

Function
Direct DMX output for connecting additional DMX devices or DMX splitters
within the same DMX chain as the DMX input.
3-pin XLR plug to connect the DMX control signal.
• Flashes green: Incoming DMX input signal
• Lights red: No incoming DMX input signal or faulty DMX signal
Shortly press this button to adjust the operating mode.
• LED lights green: Splitter mode with RDM function without DMX refresh
• LED lights yellow: Filter mode with DMX refresh
• LED lights red: Bypass mode without DMX refresh
Keep this button pressed for 3 seconds to adjust and confirm the DMX
failure mode. Select the mode with the switch 22/44 Hz.
• LED lights green: The most recent valid DMX value is held and output
through all DMX outputs
• LED lights red: No DMX output when there is no DMX input signal
• LED lights orange: The value 0 is output on all DMX channels
To adjust the DMX output frequency in filter mode.
• LED lights red: DMX output at 22 Hz
• LED lights green: DMX output at 44 Hz
• LED lights green: The DMX line of the DMX input is terminated by a
resistor.
• LED off: The terminating resistor is not active.
3-pin XLR jack to connect DMX chains.
• LED lights green: DMX output active
• Single LED lights red: Short circuit in connected line or output module
defective
• All LEDs light red: No signal output
To plug in the power plug of the supplied PSU. Fasten it with the swivel nut.
Rear connection as an alterative to the front panel (2).
Rear connection as an alterative to the front panel (1).
