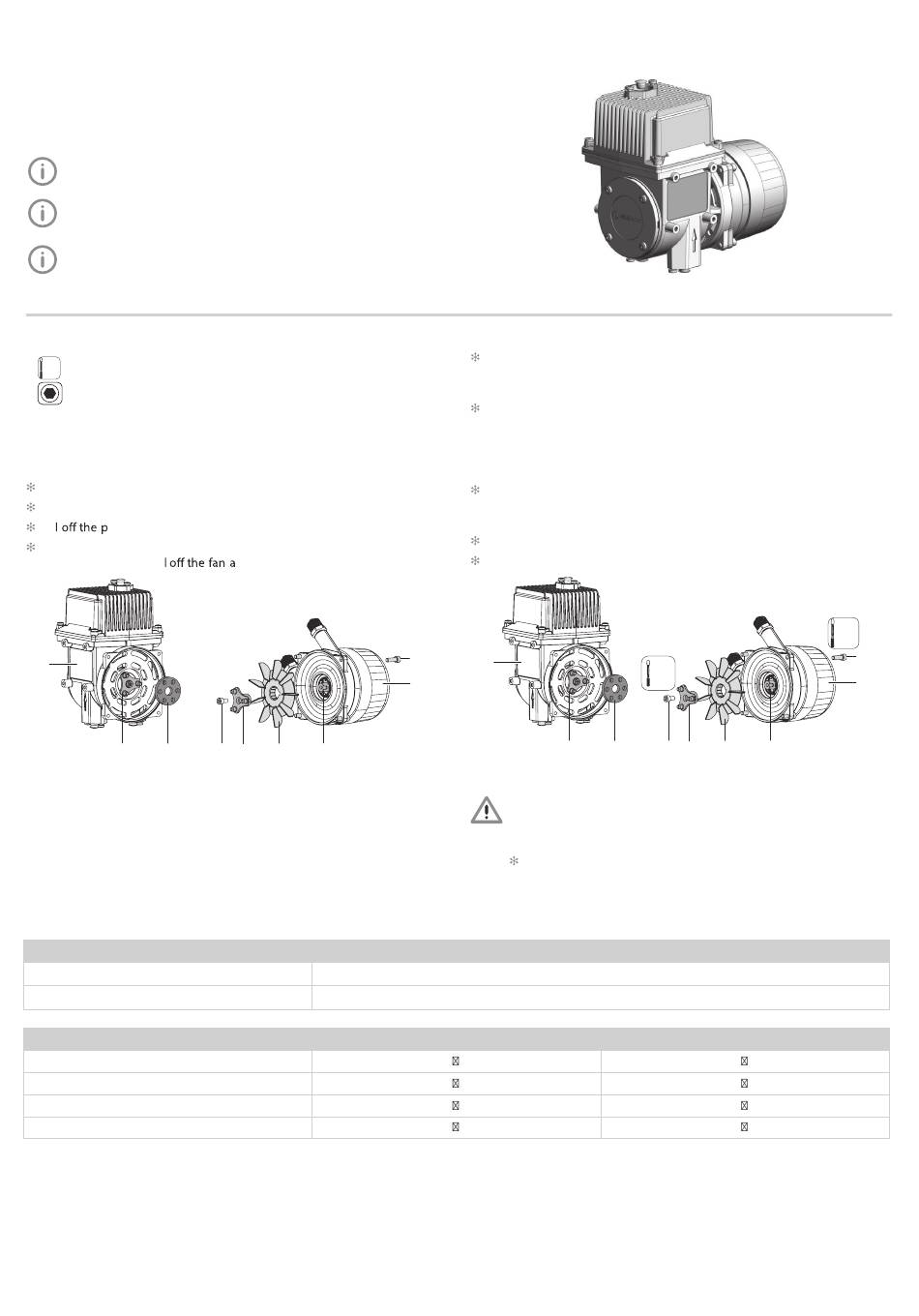

Vapor Recovery VaporTEK Pump Field Replacement
The following information supplements the unit Assembly and Operating In-structions.
Comply with the specifications of the unit Assembly and Operating Instructions as a general
rule. These instructions include important information such as safety instructions and
information on setup, electrical connection, cleaning etc.
Refitting may only be carried out by a qualified person or one of
our service technicians.
Any repairs exceeding routine maintenance
are not permitted.
Images are shown schematically
1
Tools required
Nm
–
Torque wrench
–
Allen key S W 5
2
Installation
2.1 Disassembly
Remove the lines from the pump (590)
Disconnect the pump-motor screw connections (90).
Pul
ump from the motor (650).
If necessary, disassemble the fan assembly from the motor. Disconnect
the screw (60) and pul
590
630
600
60 Fan assembly screw
90 Fixing screw (motor pump flange)
590 P ump
600 R ubber element
3
Logging record
Protocol
Motor VRM2
Pump vapour TE K
Test step description
Coupling
Pump fitted
Tightening torque
Functional / visual check
Date:________________________________
Tester:________________________________
ssembly from the motor shaft (610).
60
630
620
610
610 Motor shaft
620 Fan wheel
630 C oupling element
650 Motor
2.2 Final assembly
Slide the new fan assembly onto the motor shaft (630, 620) and tighten
the screw (60) with 12 Nm tightening torque. S ecure the thread with
anaerobic adhesive.
Place a new rubber element (600) onto the motor end of the coupling el-
ement. When doing so ensure that the 3 drive dogs of the motor end
coupling element (630) are displaced by one borehole to the 3 drive
dogs (630) of the pump end coupling element and engage the rubber el-
ement.
Slide the pump (590) onto the motor flange while taking into considera-
tion the position of the coupling element. The pump flange must lie on
the motor (650).
Tighten the fixing screws (90) with a torque of 5 - 6 Nm.
Re-connect the lines to the pump.
90 (4x)
590
650
630
WARNING
Explosion hazard from spark formation
The pump must be operated with the rubber element
Check for correct seating of the rubber element.
Serial number SN
OK
4 / 4
Nm
12
620
600
60
630
610
NOK
Nm
5-6
90 (4x)
650
