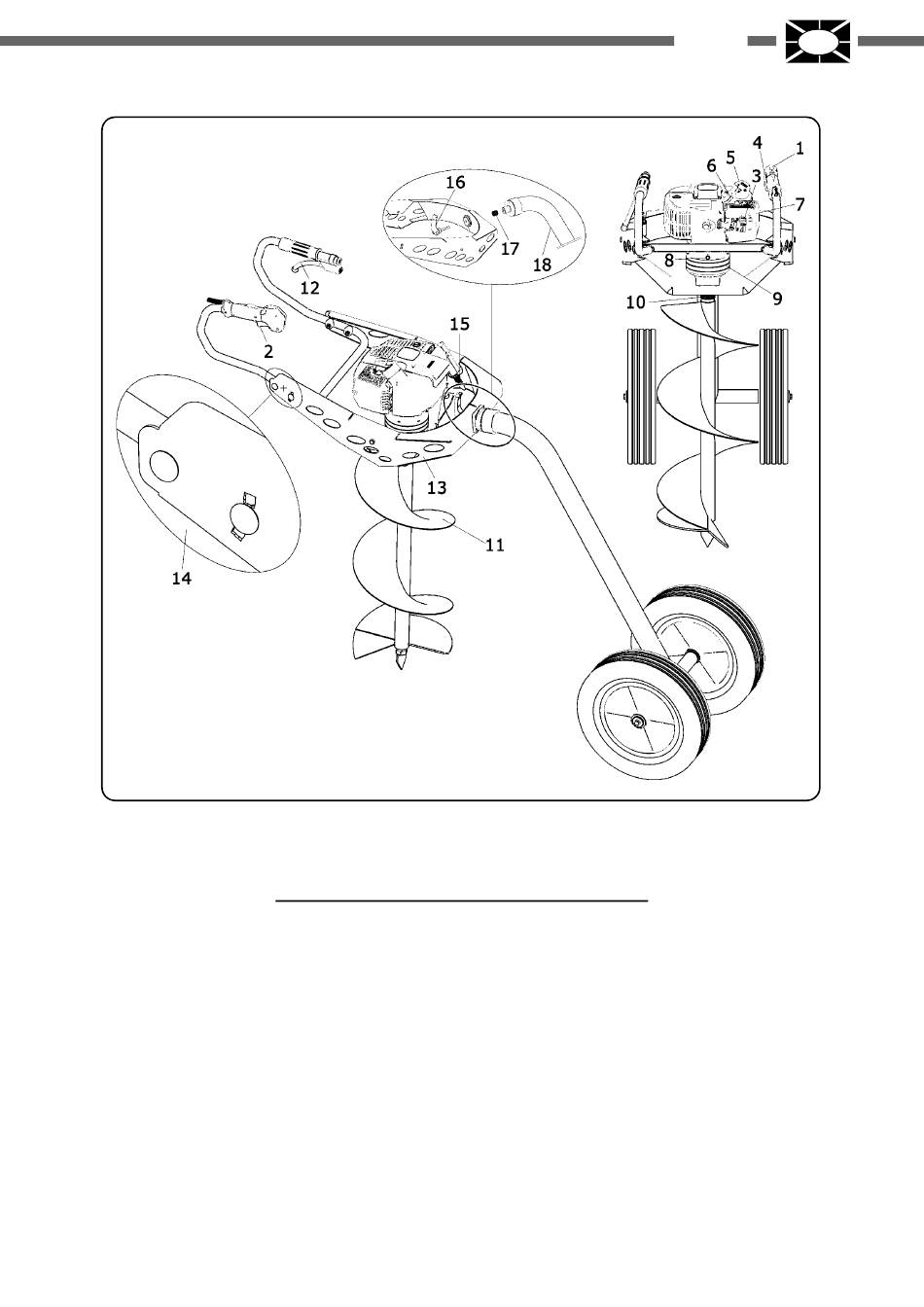

FIG. 12
1. Ignition switch (STOP)
2. Throttle lever
3. STARTER lever
4. Throttle advance (for cold engine)
5. Fuel cap
6. Starter grip
7. Air filter
8. PTO lock
9. Reduction gear
AUGER COMPONENTS (Fig 12) Mod. T165
10. Quick joint to remove the drill
11. Drill
12. Drill lock lever for transportation
13. Frame
14. Handle width adjustment
15. Drill lock device for transportation
16. Handlebar adjustment lever
17. Spring
18. Tube
