6. Installation

6. Installation
6.1 Preparation
• The Faucet should be installed over a sink with adequate drainage.
Otherwise ensure that the flow rate of the faucet is restricted to allow the water enough time to drain.
• Ensure that a power outlet for the AC power adapter is accessible.
• Avoid installing the faucet system in close proximity to a powerful light source; abnormally bright light sources directed at
the sensors could negatively impact their performance and reliability.
Highly reflective sinks, (For example those made of chrome or polished stainless steel), can also influence the performance
of the sensors, in combination with a powerful light source.

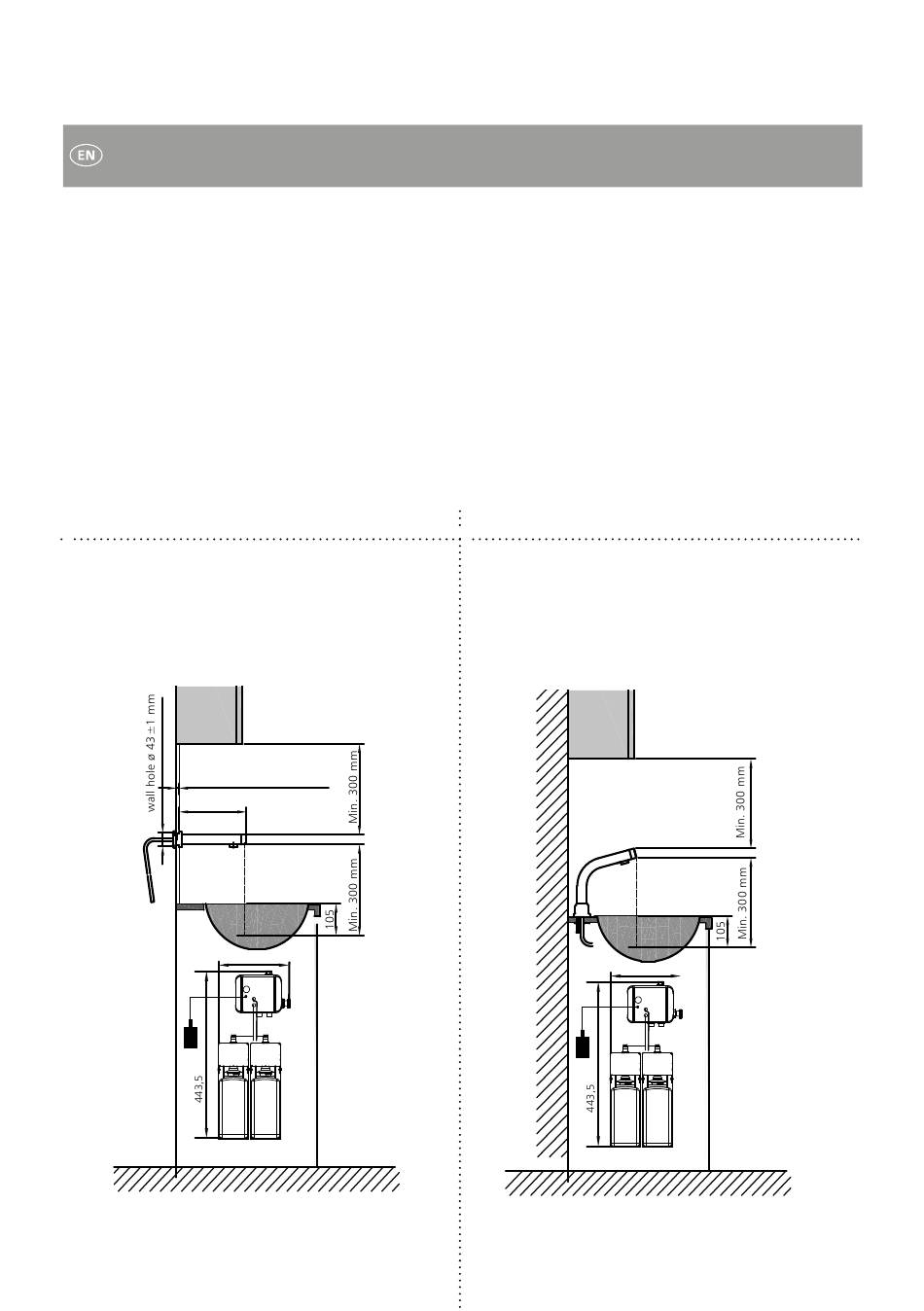

Wall Mount Model
• Front wall should be no thicker than 15 mm.
• Allow for 90 mm of space between back and front wall.
• Diameter of faucet hole in front wall should be 40 mm.
• Allow for 300 mm clearance above and below the faucet.
wall thickness 1-14 mm
229
230V
23
Instruction Manual
167,2
d=100 mm
Counter Mount Model
• Counter up to 35 mm thick.
• Diameter of the faucet opening between 33 - 35 mm.
• Allow for 300 mm clearance above and below the faucet.
167,2
230V
d=100 mm
