TDK-Lambda DSP30-Series Handbuch Seite 14

Product HANDBOOK
Input Parameters:
Description
Nominal input voltage
Input frequency range
Maximum inrush current
Output Parameters:
Output Watts
30W
Adjusting output voltage beyond the stated range may cause overvoltage protection (OVP) to operate,
whereby the output will latch
output voltage to within its range and cycle the input off then on.
All outputs are SELV except under the following circumstance: Outputs connected in series are non-SELV if
the total output voltage exceeds 60Vdc
If the total voltage of outputs connected in series exceed the 60Vdc SELV limit then all outputs must be
considered non-SELV.
Non-SELV outputs are hazardous and must not be made user accessible. Consideration must be given to
service engineers making inadvertent contact with the output terminals in the end equipment.
All outputs have functional spacing to earth, and due consideration must be given to this in the end product
design.

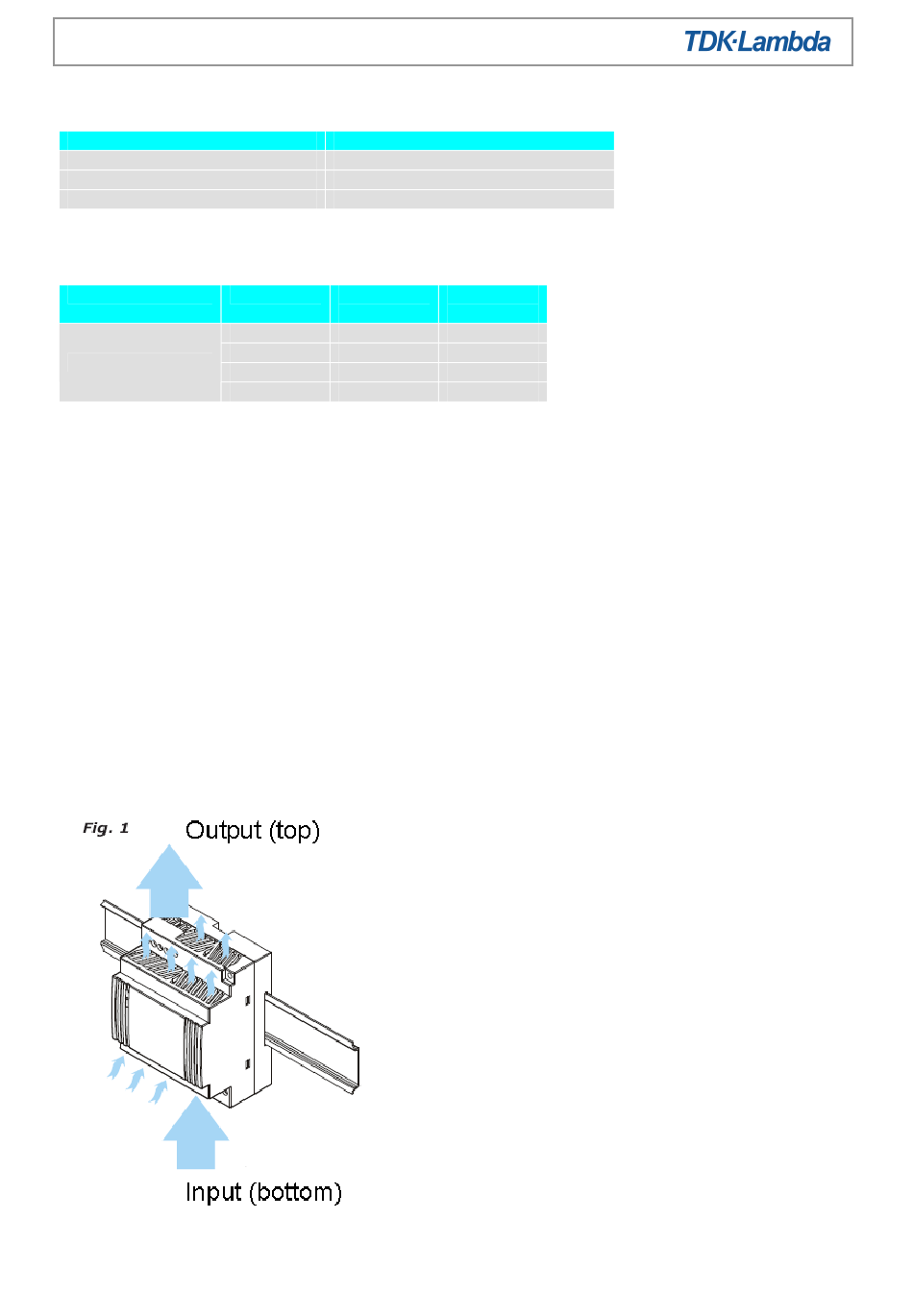

Cooling for unit
The unit must be mounted on a DIN rail with the output connection uppermost (toward the top of the
equipment/installation) as below.
Page 14 of 16
DSP30-xx
115/230 VAC(Auto select)
Vout (V) Adjustment
range (V)
5 5 - 5.5
12 11.4 -14.5
15 13.5 - 16.5
24 22.5 – 28.5
off. To reset for normal operation simply adjust the potentiometer to reduce the
Operation
47 – 63Hz
50A
Output
current (A)
3
2.1
2
1.3
DSP30 Series, 23416 issue 02, April 2013
