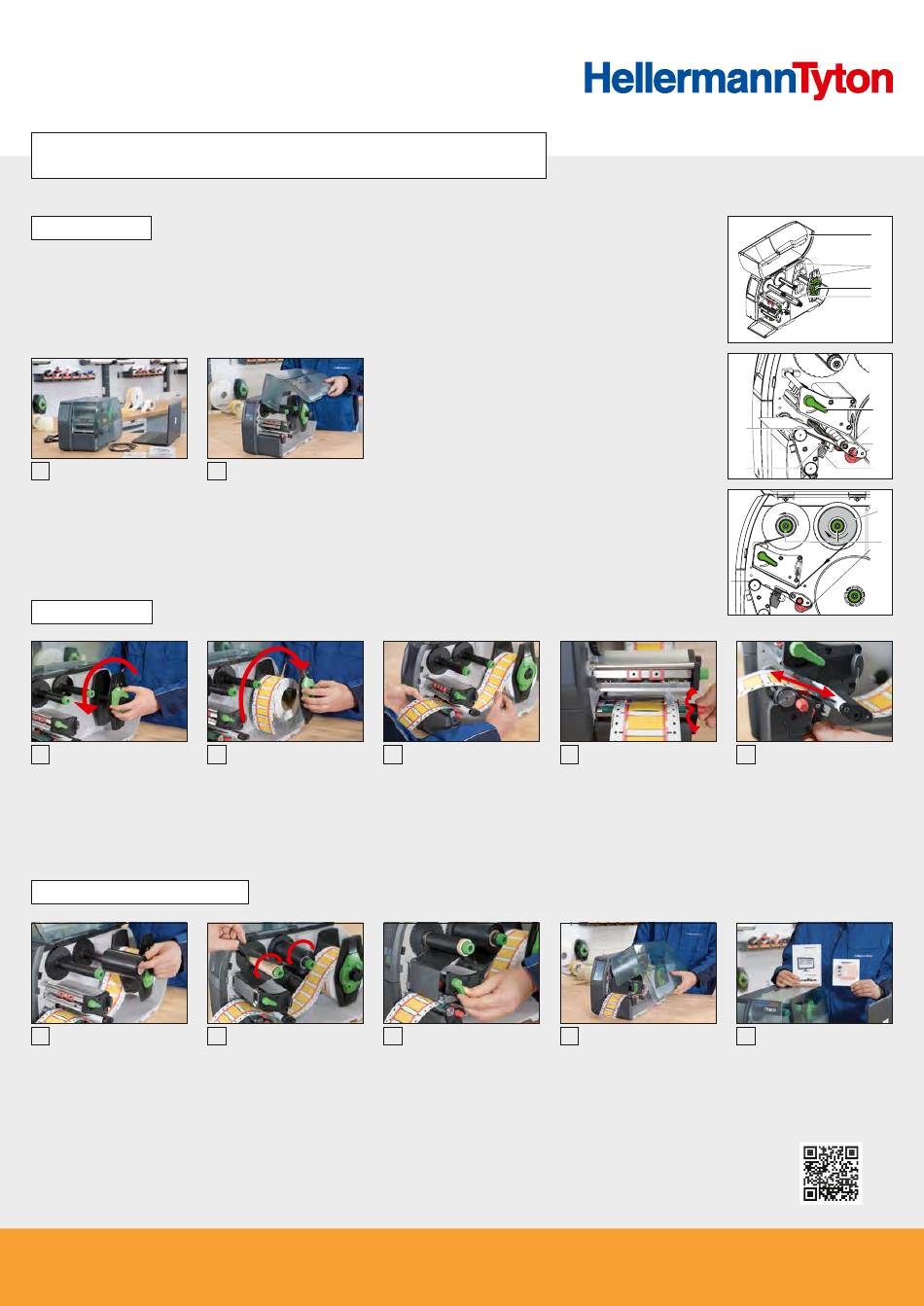

HellermannTyton TT4030 Kurzanleitung

Quick Installation Guide TT4030
Getting started
Check that your delivery includes all of the following:
• Thermal transfer printer
• Power cable
• Product safety instructions
1
• Place the printer on a flat,
stable surface
• Connect the device to the
power supply
• Turn the printer on
Insert material
3
• Turn the ring counterclockwise
to release the margin stop (B)
• Remove the margin stop (B)
Insert ribbon and start print
8
• Load the transfer ribbon (J)
onto the hub (D) - make sure
it is centered
• The colour-coated side of
the ribbon needs to face
the consumable and not the
printhead
www.HellermannTyton.com/TT4030-18qig
• RMA maintenance form
• Ribbon core
• USB cable
2
• Open the cover (A)
4
• Load the consumable material
onto the roll holder (C) – the
printable side of the material
needs to face up
• Turn the ring clockwise to
close the margin stop (B)
9
• Guide transfer ribbon through
the printing unit as shown
• Stick the leading end of the
colour ribbon to the ribbon
core with adhesive tape
• Turn the colour ribbon winder
counterclockwise to smooth
out the colour ribbon feed
• Turn the rotary knobs (K)
counterclockwise until the
colour ribbon roll is fixed
• WLAN device
• CD-ROM (driver, operator manual, demo software)
5
• Guide the consumable material
strip towards the print head
10
• Turn the lever (E) clockwise to
lock the printhead
6
• Move and position the guides
closely to the edges of the
material by turning the knob
(F) – do not squeeze the
material
11
• Close the cover (A)
A
B
C
D
E
H
F
I G
J
K
7
• The sensor position (H) is
indicated by a yellow lamp
• Loosen the screw (I)
• Position the sensor (H) by using
the handle (G) so it can detect
the gaps between the labels or
cut-out marks
• Tighten the screw (I)
12
• Install the driver and the
software TagPrint Pro
• The printer is ready for printing
