4. REFERENCE PART
Before changing the fuse or opening the cover for the paper jam clearance please note:
Machine must be switched off and the power supply must be disconnected!
Now open the cover by means of the lever (in the hollow).
The wheels are now easy to reach and the paper can be removed.
Please do not use force!

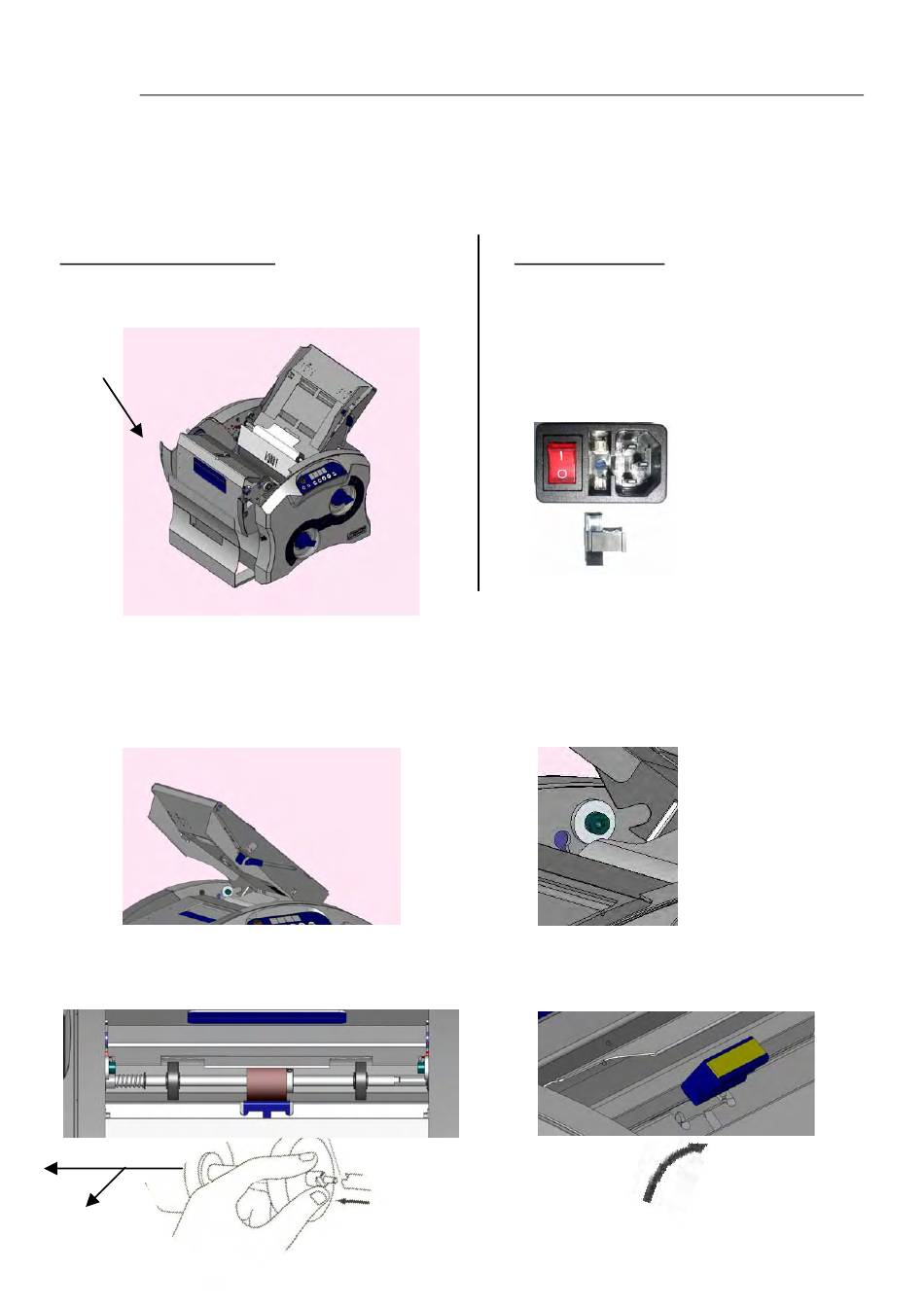

Removal of a paper jam:
In case of a jam open the cover and remove
the paper.
Opening lever
4.2. Changing paper cassette, paper feed roller and pad (e.g.abrasion)
First remove the paper cassette. Turn
it frontwards to the shown position and
To remove the paper feed roller
Press in the direction of the arrow to remove
the joint of the shaft.
Change the fuse:
The fuse is located between the
main switch and the socket.
Pull out the fixing unit; then you can
change the fuse!
move it out of the two notches for fitting.
After this, you can remove the pad.
Tip it out.
16
