The ultimate battery charger

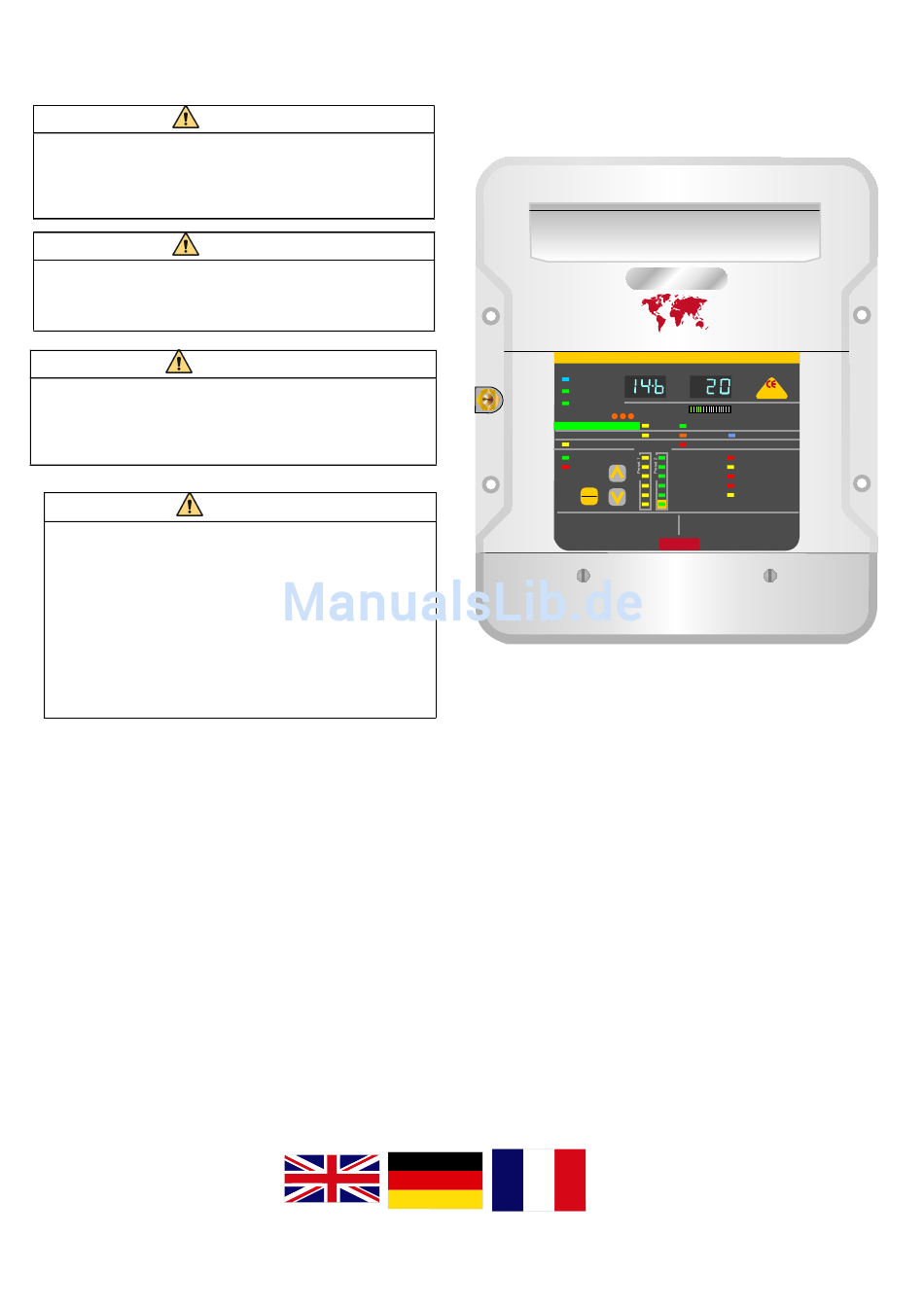

DANGER
HIGH VOLTAGE
AVOID SERIOUS INJURY OR DEATH FROM ELECTRICAL
BEFORE PERFORMING ANY ELECTRICAL WORK TURN
OFF AC POWER SUPPLY
DANGER
EXPLOSION HAZARD
AVOID SERIOUS INJURY OR DEATH
MAKE CONNECTIONS IN AN ATMOSPHERE FREE OF
EXPLOSIVE FUMES
WARNING
LOW VOLTAGE
AVOID SERIOUS INJURY FROM ELECTRICAL BURNS AND
SPARKS.
BEFORE PERFORMING ANY ELECTRICAL WORK
DISCONNECT ANY DC POWER SUPPLY FROM UNIT
HOT SURFACES – TO REDUCE RISK OF BURNS DO NOT TOUCH
WHILE IN SERVICE
CHARGE ONLY USER SELECTED TYPE BATTERIES
(Flooded, AGM, GEL, lithium or Calcium)
OTHER TYPES OF BATTERIES MAY BURST CAUSING PERSONAL
INJURY AND DAMAGE
RISK OF ELECTRIC SHOCK, NO USER SERVICEABLE PARTS,
RETURN TO MANUFACTURER FOR SERVICING
THIS UNIT IS IGNITION PROTECTED
This product requires a knowledge off both a/c and d/c
electrical installation, please do not install or attempt to
install this product unless you are qualified to do so. All
effort is made to make the instructions as safe as
possible but it is not possible to cover all electrical safety
and installation aspects. Sterling can only assume a
certain basic knowledge is held by the installer
Top Function
1) 11 pre programmed battery curves including Lifep04.
2) 1 custom set, can be set from charger, no need for computer.
3) 2 x digital meters for current and voltage measurement.
4) 1 x power meter to show what reserve power left on the unit.
5) PFC, active, up to 0.99 pf, ensuring efficient power conversion, up to almost 90% as
opposed to about 50% for older non PFC technology. Combine with ( below )
6)New synchronised rectification output as opposed to diode output, giving up to a extra10%
efficiency
7) High voltage de-sulphation cycle.
8) New, low activity, standby mode to increase battery life.
9) Battery health program.
10) Multiple speed fan control to reduce unnecessary fan noise experienced by the customer,
even though the new extreme efficiency reduces the need for fans, at high ambient
temperatures: ( 40-50 deg c ) fans would still be required to ensure operation.
11) Primary ( processor digitally controlled ) and an emergency backup secondary ( analogue
controlled ) high voltage trip.
12) 32 L.E.D. information pane .
13) Internal scan and systems check.
14) Remote control
15) Small footprint and light weight
16) Include battery temperature sensor
17) As with all our marine chargers no exposed ferrous metals used, only aluminium/stainless
steel/copper /brass/gold, exposed to air
SHOCK.
CAUTION
www.busse-yachtshop.de | info@busse-yachtshop.de

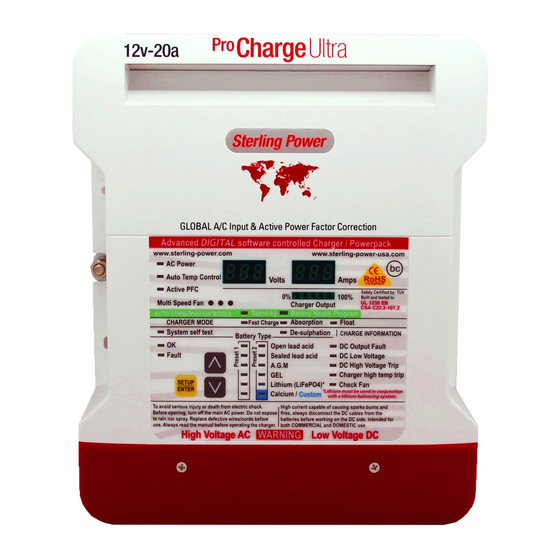

Charge U
Pro
Pro Charge U
12v-20a
Sterling Power
GLOBAL A/C Input & Active Power Factor Correction
Progressive DIGITAL software control
AC Power
Auto Temp Control
Volts
Active PFC
Multi Speed Cooling 1 2 3
AUTO CONSERVATION MODES Stand-by
Fast Charge
CHARGER MODE
System self test
Battery Type
OK
Fault
SETUP
ENTER
To avoid serious injury or death
from electric shock. Before
Warning
High voltage a/c
12 v 60 amp model, all other units pro rata
Input voltage range
Power Factor at 230 v
Efficiency
Full load current ( 110/230v )
Ripple noise ( R.M.S. )
Ground leakage
Generator/ mains power required to run unit (
watts )
12 v 20 amp approx 300 watts
12 v 30 amp approx 450 watts
12 v 40 amp approx 600 watts
12 v 50 amp approx 750 watts
12 v 60 amp approx 900 watts
24 v 20 amp approx 600 watts
24 v 30 amp approx 900 watts
volt metre accuracy
amp metre accuracy
Tested to CE standards
EN61000-3-2 EN61000-3-3
EN55014-1
EN60335-2-29
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision of instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance
LTRA
www.sterling-power.com
RoHS
Amps
compliant
0% 100%
Charger Output
Battery Health Program
Absorption Float
De-sulphation Charger information
Open lead acid DC Output Service
Sealed lead acid DC Low Voltage
A.G.M DC High Voltage Trip
High Charger temp trip
GEL
Check Fan
Lithium Lifep04
Calcium / Custom
High current capable of
causing sparks burns and
Low voltage d/c
90-270 v 40-70 hz
+/- 1.5%
+/- 1%
EN 55014-2
0.95
88.5%
10 /4.8
50mv
0.75 ma
