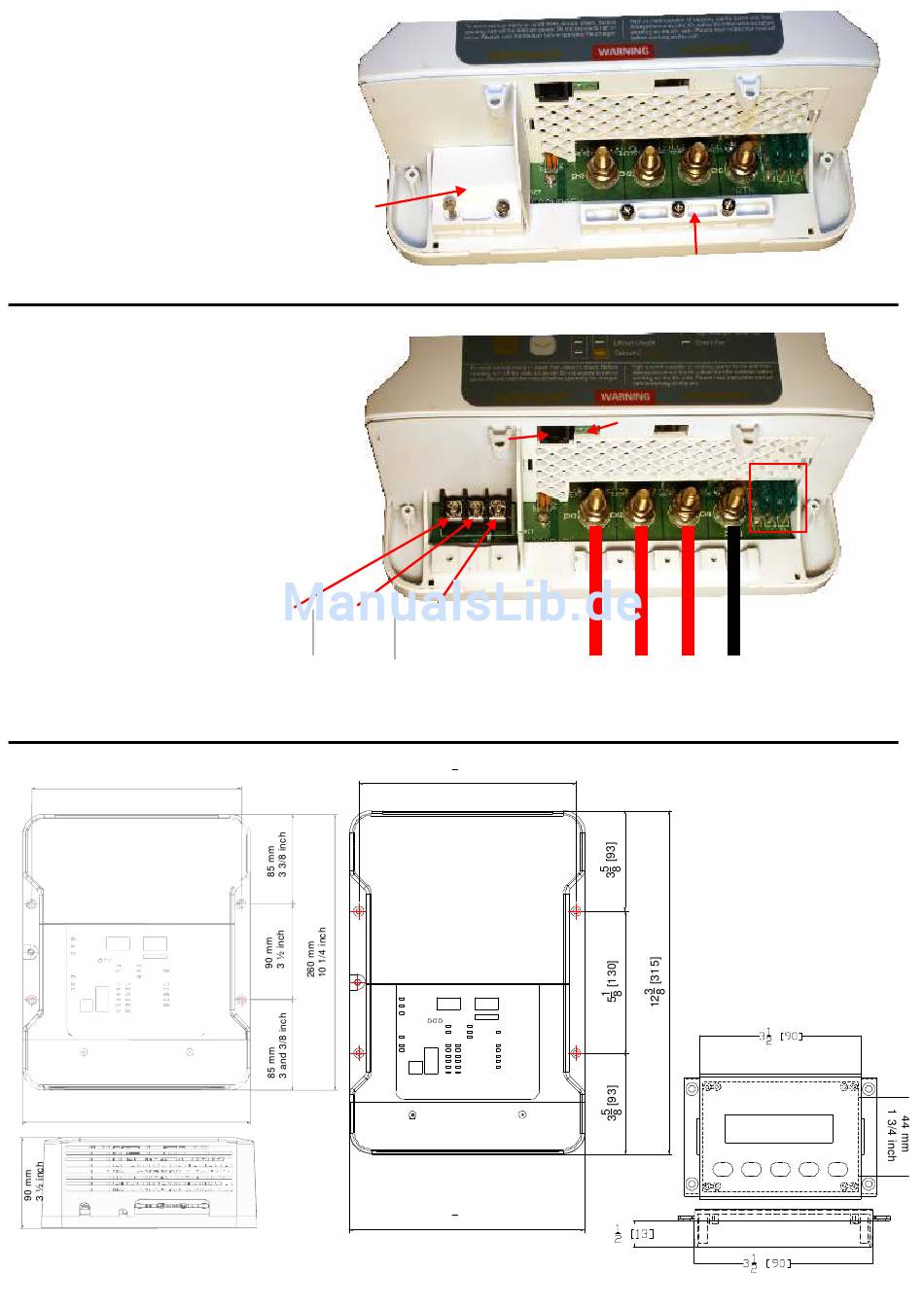

Remove the 2 screws on the bottom
of the front cover marked number 24
on the previous pages quick guide
this will reveal the main wiring area
Remove the 2 screws on the A/C area and the 3 screws on
the d/c clamps to enable the appropriate wires to
be attached A/C input 90-160 volts a/c
Ensure secure connections and correct crimping
tools etc are used
D/C 12 or 24 v depending on unit
Remote control
Insert the Sterling remote control
into the remote socket ( telephone type )
Please note that when the remote is inserted the
front program controls on the local panel no longer
operate, control is in the remote. remove the
remote to use local controls
Battery Temperature sensor
Connect the battery temp
sensor to the position
as shown, connect the
sensor end to the neg stud
terminal on one of the batteries
which you think will be in the hottest environment
198 mm 7 3/4 inch
12 v 10-40 amp
24 v 20 amp
215 mm
8 ½ inch
High Voltage
A/c cover plate
and clamp
Remote control
Live
Neutral
Live
Neutral Ground ( USA )
ProMariner
12 v 50-60 amp
www.busse-yachtshop.de | info@busse-yachtshop.de
A
Earth ( European )
3
7
[198]
4
24 v 30 amp
Pro Nautic iQ
12-60
8 1
[215]
2
D/C cable clamp
Battery temperature sensor connection
1
2
3
Common Negative
red red red
Black (Europe) Yellow (USA)
Pos terminals on
3 x battery banks
dimensions
in inches
and ( mm )
Cut out
90 x 62 mm
FUSES
D/C
