AC circuit breaker
Any outputs not being used should be linked
across to one that is, this is not a requirement
for these new models but is good practice as it
helps spread loads etc

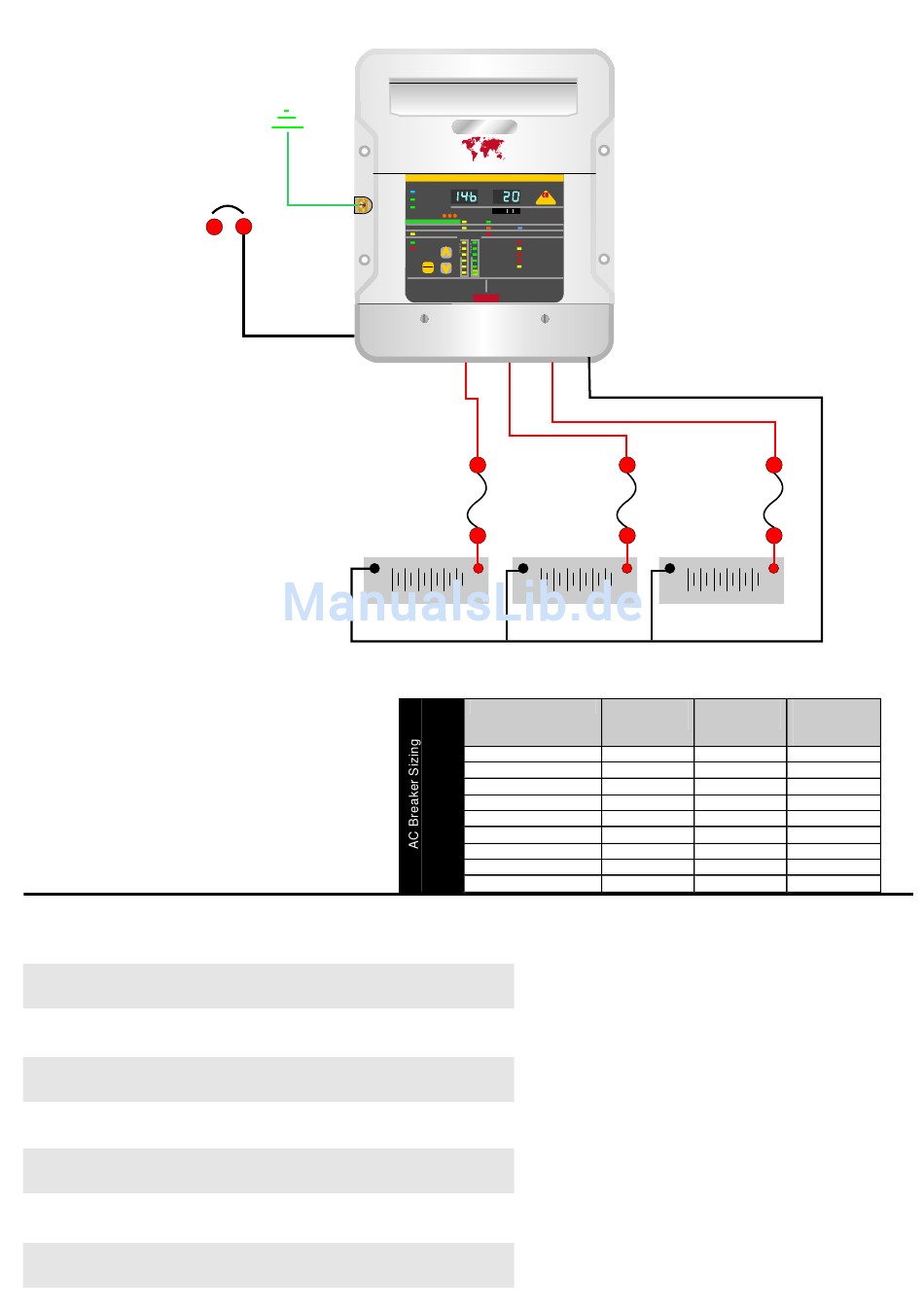

D/C - Fuse selection, as per the
diagram each positive output from the
charger to the battery must be fused .
Chose a fuse that is about 20% higher
amperage rating than the maximum
rating of the charger, and round it up,
remember this fuse is primarily
protecting the cables and not the
product, eg. a 20 amp charger would
have about a 25 amp fuse, a 60 amp
charger about a 75 amp fuse. A full
range of fuses and fuse holders are
avaiable from Sterling
A/C installation /
spade
connections and a proper crimping tool
attach the a/c cables Live ( line ) Neutral and Earth /
Ground, repeat the procedure for the breaker side of the
install, support the cable every 18 inches/ 0.5 metre. and
protect from sharp edges when passing through bulkheads
and all other openings as per any standards which apply to
the installation
The closer to the batteries you fit the charger the better as not only do you save
expensive cable you also get better performance from the charger.
The cable should be properly rated 105 deg C fire resistant. do not use solid cable or
speaker wire
10 amp Length of conductor ( cable ) to and from power source
Distance 3m (10 ft) 5m (15ft)
AWG 14
15 amp
Distance
3m (10 ft) 5m (15ft)
AWG
12
20 amp
Distance 3m (10 ft) 5m (15ft)
AWG 10
30 amp
Distance 3m (10 ft) 5m (15ft)
AWG 10
40 amp
Distance 3m (10 ft) 5m (15ft)
AWG 8
50 amp
Distance 3m (10 ft) 5m (15ft)
AWG 6
60 amp
Distance 3m (10 ft) 5m (15ft)
AWG 6
12v-20a
Earth /chassis
boats bonding
_
12 or 24 v battery bank
wiring, using ring or captive
7m (22ft) 8m (25ft)
12 10 10
7m (22ft) 8m (25ft)
10 10 8
7m (22ft) 8m (25ft)
10 8 6
7m (22ft) 8m (25ft)
8 6 6
7m (22ft) 8m (25ft)
6 6 4
7m (22ft) 8m (25ft)
6 6 4
7m (22ft) 8m (25ft)
4 4 2
