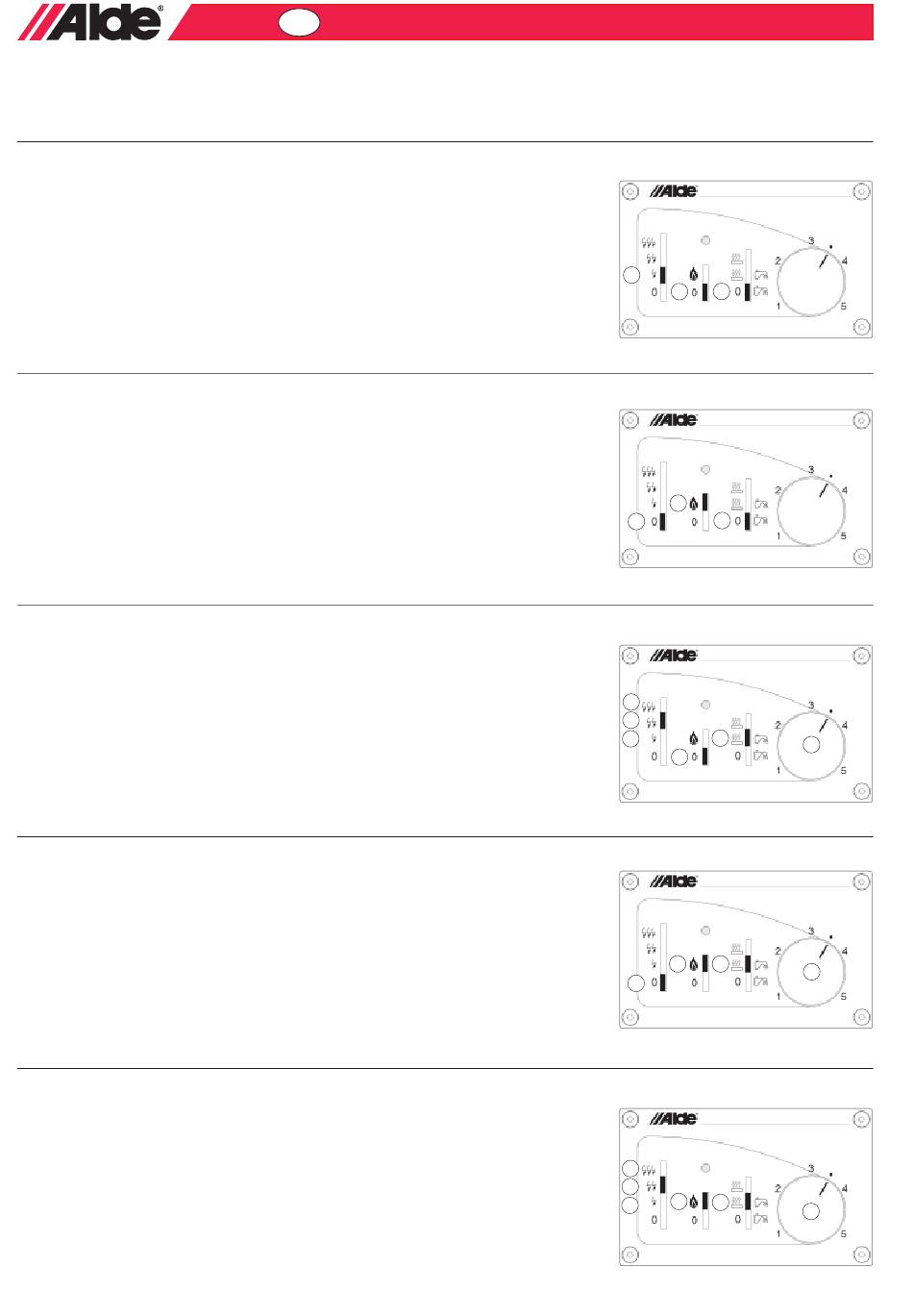

SETTINGS FOR OPERATION OF THE HEATING SYSTEM AND WARM WATER HEATER
For more information on the settings on the panel, please refer to the "Control Panel" section.
WARM WATER ONLY WITH 230 V HEATING CARTRIDGE
1. Slide the circulation pump switch to position (H).
2. Slide the LPG switch to position (E).
3. Slide the electric cartridge switch to position (B).
(When the system is being used for warm water only, the electronics limit output to
1 kW, irrespective of the output actually selected).
WARM WATER ONLY WITH LPG BOILER
1. Open the LPG shut-off valve.
2. Slide the circulation pump switch to position (H).
3. Slide the LPG switch to position (F).
4. Slide the heating cartridge switch to position (A).
HEATING AND WARM WATER WITH 230 V HEATING
CARTRIDGE
1. Slide the circulation pump switch to position (I).
2. Slide the LPG switch to position (E).
3. Slide the heating cartridge switch to the desired output position (B, C or D).
In the illustration, an output of 2100 W has been selected.
4. Adjust the temperature to the desired level (5-30°C) using the knob of the
room thermostat (K).
HEATING AND WARM WATER WITH LPG BOILER
1. Open the LPG shut-off valve.
2. Slide the circulation pump switch to position (I).
3. Slide the LPG switch to position (F).
4. Slide the heating cartridge switch to position (A).
5. Adjust the temperature to the desired level (5-30°C) using the knob of the
room thermostat (K).
HEATING AND WARM WATER WITH BOTH 230 V HEATING
CARTRIDGE AND LPG BOILER
(Use only when electricity or gas alone is not sufficient)
1. Open the LPG shut-off valve.
2. Slide the circulation pump switch to position (I).
3. Slide the LPG switch to position (F).
4. Slide the heating cartridge switch to the desired output position (B, C or D).
In the illustration, an output of 2100 W has been selected.
5. Adjust the temperature to the desired level (5-30°C) using the knob of the
room thermostat (K).
