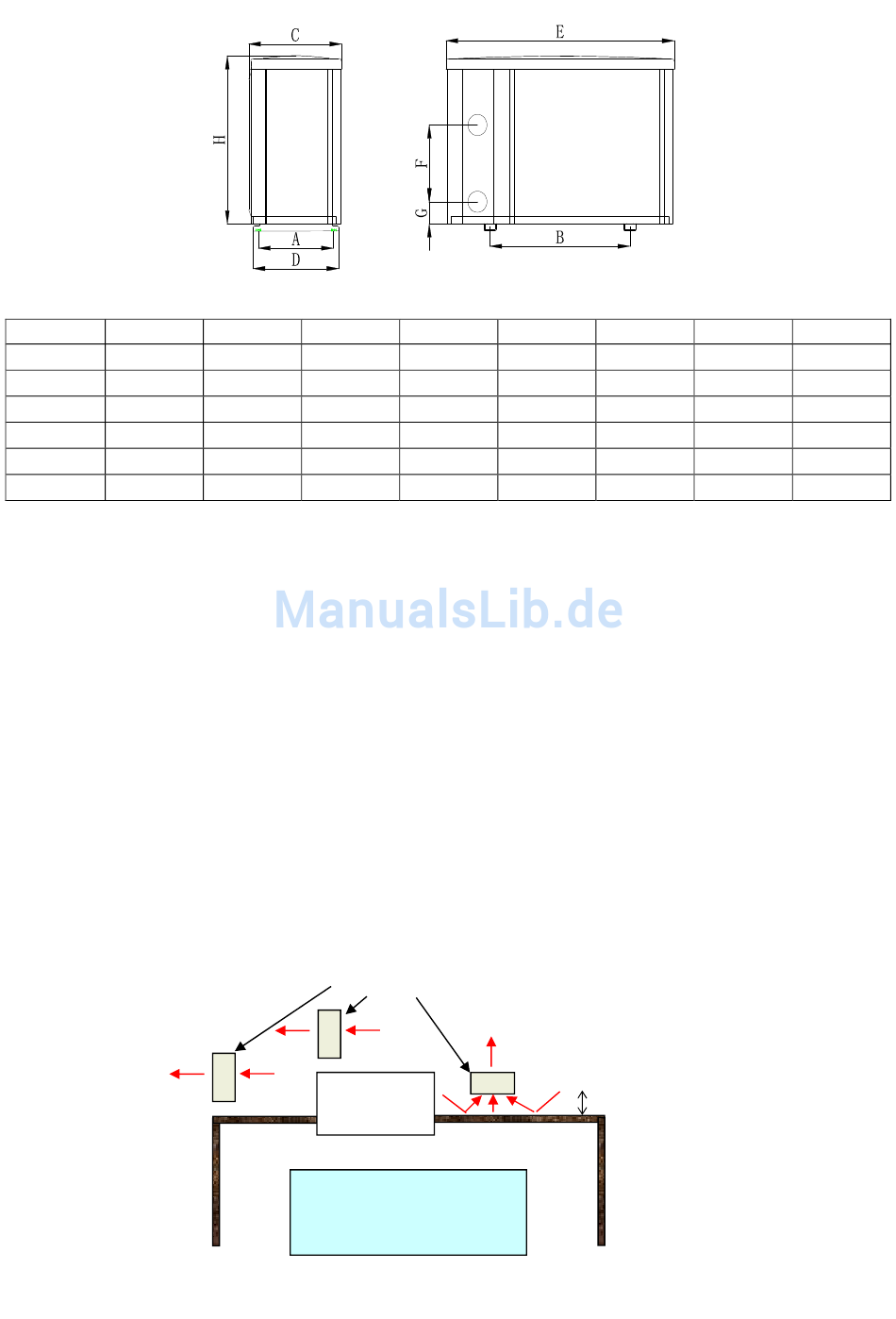

Non-contractual scheme, pool water input / output water on back side
Dim (mm) A
104269 234
104272 234
104273 234
105535 234
105536 234
105537 312

LIST OF ITEMS SUPPLIED

1 heat pump with integrated control panel + 2 fittings + condensate drain kit
-
1 manual
-

STEPS IN THE INSTALLATION PROCESS

Position
- The heat pump must be installed OUSTSIDE in a well ventilated place, far from any sources of
combustibles. In order to reduce noise levels :
- Do not direct ventilation towards neighboring
- Avoid corners and courtyards that increase the reflection of sound transmitted and received
(eg against a wall: + 3 dB (A) in a corner: + 6 dB (A), in a courtyard: + 9 dB (A))
- Install the CAP away from property lines and comply with the established rules private property
- Do not install under windows
Refer to national laws regarding the struggle against neighborhood noise
The water pipe between the pool and the heat pump must not exceed 10m.Provide for the discharge by
gravity of condensates under the machine. For maintenance reasons, the pump must not be placed in an
area where vegetation is present (leaves, pine needles, etc.).
Ideally, the heat pump should be protected against outdoor phenomena (rain, snow, etc.) by a shelter.
NOTPACBYAQUALUX - ind H - 02/15
B C
429 312
429 312
429 312
590 312
590 312
590 392
Heatpump
pummpe
Technical room
Pool
D E
278 800
278 800
278 800
278 961
278 961
357 961
12 /36
F G
250 76
250 76
220 76
280 77
320 77
310 77
50 cm mini
H
558
558
558
658
658
658
