Description

1.1

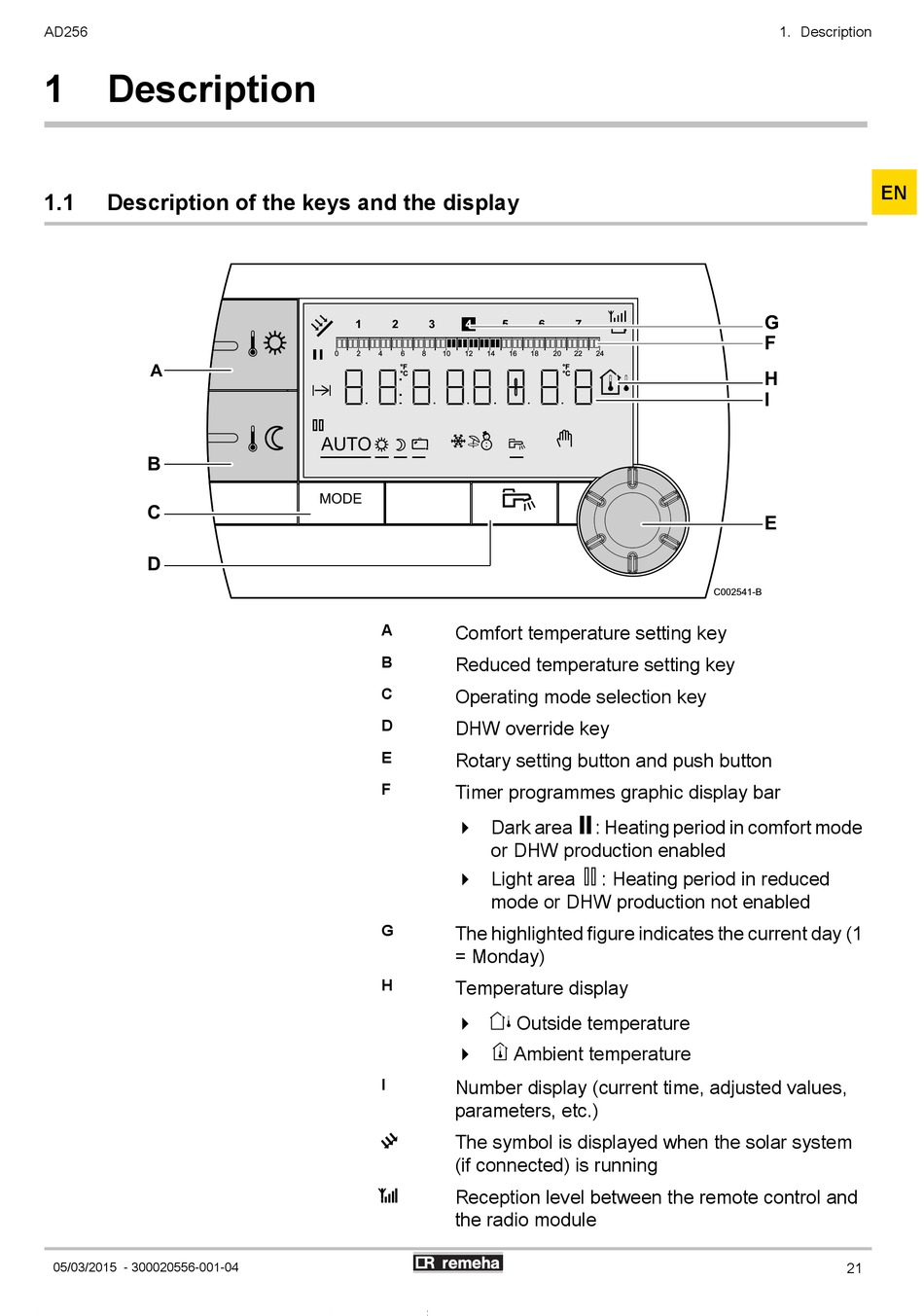

Description of the keys and the display

A
B
C
D
05/03/2015 - 300020556-001-04
1 2 3
%
0 2 4 6 8
°F
°C
$

AUTO %
$
MODE
A
B
C
D
E
F
G
H
I
u
T
4 5 6 7
10 12 14 16 18 20 22 24
°F
°C
!
F
.
#
Comfort temperature setting key
Reduced temperature setting key
Operating mode selection key
DHW override key
Rotary setting button and push button
Timer programmes graphic display bar
4 Dark area b : Heating period in comfort mode
or DHW production enabled
4 Light area v : Heating period in reduced
mode or DHW production not enabled
The highlighted figure indicates the current day (1
= Monday)
Temperature display
4 I Outside temperature
4 O Ambient temperature
Number display (current time, adjusted values,
parameters, etc.)
The symbol is displayed when the solar system
(if connected) is running
Reception level between the remote control and
the radio module
