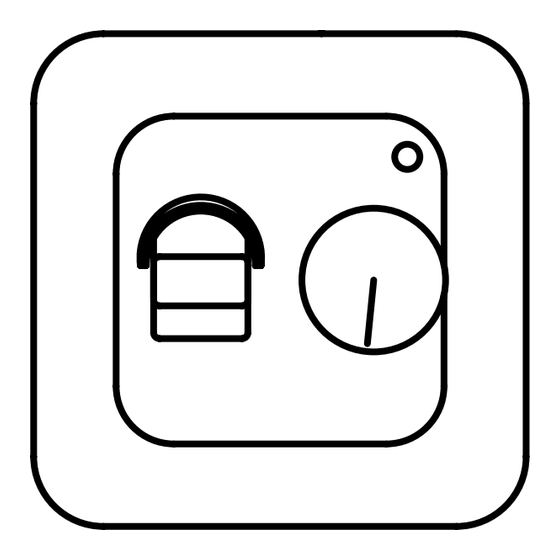

Elektra Type OTN
English
OTN, electronic thermostat for mounting in
standard wall box. The thermostat is adjustable
to required temperature from +5/+40˚C. The
LED shows that the heat is ON.
PRODUKTPROGRAM
OTN-1991-EKL with floor sensor
OTN-1999-EKL with built-in sensor
CE MARKING
OJ declare under their own responsibility that
this product meets the requirements of the
European Council's directive 89/336 and
successive modifications as to electro-magnetic
compatibility and the Council directive 73/23 as
to electrical equipment to be applied within
certain voltage ranges.
Standards applied
EN 50 081-2, EN 50 082-2, EN 60 730-1 and EN
60730-2-9.
The product may only be energised when the
entire installation meets the current directive
requirements.
When the product is installed according to this
instructions guide and the current installation
guidelines, it is covered by factory guarantee.
If the product has been exposed to damage e.g.
in transport, it must be checked and overhauled
by qualified staff before the product is
connected to the power.
TECHNICAL DATA
Voltage . . . . . . .230V AC +10/-15%, 50/60 Hz
Current consumption . . . . . . . . . . . . . . . . . .6 VA
Max. fuse . . . . . . . . . . . . . . . . . . . . . . . . . . .16A
Built-in switch . . . . . . . . . . . . . . . . . .1-pole, 16A
Output relay - make contact . . . . . . . .SPST-NO
Load OTN-1991-EKL . . . . . . . . .16A, 3600W
OTN-1999-EKL . . . . . . . . .16A, 3600W
Regulation principle . . . . . . . . . . . . . . . .ON/OFF
Temperature scale . . . . . . . . . . . . . . . .+5/+40°C
Difference/hysteresis . . . . . . . . . . . . . . . . .0.4°C
Setback temperature . . . . . . . . . . . . . .fixed 5˚C
- control voltage signal . . . . . . . . . . . . .230V AC
Scale limitation . . . . . . . . . . . . . . . . . .min./max.
Error circuit fuse at . . . . . . . . . . . . . . . . . .-20°C
Ambient temperature . . . . . . . . . . . . . . .0/+50°C
Dimensions . . . . . . . . . . .H/80, W/80, D/50 mm
Protection:
OTN-1991-EKL . . . . . . . . . . . . . . .IP20
OTN-1999-EKL . . . . . . . . . . . . . . .IP20
The thermostat is free of maintenance.
CLASSIFICATION
The product is a class II device (reinforced
insulation) and the product must be connected
to the following conductors:
1) Phase (L)
2) Neutral (N)
MOUNTING OF SENSOR
Floor sensor: Placed in installation pipe which is
embedded in floor (fig. 4). The pipe is thickened
in the end and placed as high as possible in the
concrete layer.
Sensor cable may be extended up to 50 m with
separate cable for power current. Two
conductors in a multiconducting cable, which
Elektra type OTN
e.g. is used for supply of heating cable, may not
be used. Voltage signals, which may disturb the
function of the thermostat, may occur. If the
cable is used with screen, the screen may not
be connected to the ground, but must be
connected to terminal 7. The best installation is
attained with a separate cable for the sensor,
which is then mounted in a separate conduit.
PLACEMENT OF THERMOSTAT WITH BUILT-
IN SENSOR
Thermostat is to be mounted on the wall with
free air circulation around it (fig. 5). Furthermore
it has to be placed where it is not influenced by
any other heating sources (e.g. the sun), draft
from doors or windows, or by the temperature
of an exterior wall.
OTN contains a fault interrupter circuit which
interrupts the heating in case of disconnected or
short-circuited sensors.
MOUNTING OF THERMOSTAT (fig. 1-3)
1. Remove the control knob (A).
2. Screw (B) should be unscrewed and the
cover lifted off.
3. Electrical connections can be made as
shown in the wiring diagram.
4. The thermostat can now be filled into the
wall box.
- frame and cover is mounted
- thermostat knob is replaced
SETBACK TEMPERATURE
Setback of temperature setting is activated by a
230 V (L) signal from an external time switch to
terminal 5. Setback temperature is fixed 5˚C.
TEMPERATURE SETTING
OTN has a scale range of +5/+40˚C. To assist
the adjustment, the thermostat has a LED (D)
which will glow RED when the heating is ON.
The thermostat should be set to maximum
temperature setting until the desired
temperature of the room or floor is achieved.
The control knob should then be turned back
until the LED goes out. Fine adjustments can be
made over the next 1/2 days to suit individual
requirements.
THERMOSTAT ADJUSTMENT
When the room temperature has been
stabilized, the thermostat set position may be
adjusted to match actual room temperature.
Measure the temperature of the room with an
accurate thermometer. Remove control knob
and reposition it so that the indicated
temperature line shows the same as the
measured temperature. This adjustment can be
done in steps of 3°C.
MAX./MIN. TEMPERATURE
A locking mechanism is positioned behind the
control knob to limit the amount of adjustment
possible. By loosening the little screw (C), the
scale range can be locked, e.g. between 20˚C
and 25˚C. The red ring indicates the maximum
temperature and the blue ring indicates the
minimum temperature.
FIGURS
Fig. 1 OTN cover with knob.
Fig. 2 Connection of OTN-1991-EKL.
Fig. 3 Connection of OTN-1999-EKL
Fig. 4 Mounting of floor sensor.
Fig. 5 Mounting of thermostat.
Fig. 6 Scheme with sensor values.
Deutsch
OTN ist eine Thermostat-Serie für den Einbau in
standard Wanddosen. Die gewünschte
Temperatur kann zwischen +5°und 40°C
eingestellt werden. Die Leuchtdiode leuchtet
auf, wenn die Heizung eingeschaltet is.
PRODUKTPROGRAMM
OTN-1991-EKL mit Bodenfühler
OTN-1999-EKL mit externem Raumfühler
CE PRÜFZEICHEN
OJ erklärt in eigener Verantwortung, dass
dieses Produkt der Direktive des Europäischen
Rats 89/336 und den nachfolgenden
Änderungen betreffs elektromagnetischer
Kompatibilität sowie auch der Direktive des
Rats 73/23 betreffs Elektroausrüstung zur
Anwendung innerhalb gewissen
Spannungsgrenzen entspricht.
Berücksichtigte Standarde
EN 50 081-2, EN 50 082-2, EN 60 730-1 und EN
60730-2-9.
Das Produkt darf erst in Betrieb genommen
werden, nachdem sichergestellt ist, dass die
Gesamtinstallation die geltenden Forderungen
der Direktive erfüllt.
Nachdem das Produkt nach den Anweisungen
dieser Bedienungsanleitung und den
Installationsvorschriften montiert ist, ist es von
der Werkgarantie umfasst.
Ist das Produkt z.B. im Transport beschädigt
worden, ist es vom qualifizierten Personal zu
besichtigen und zu prüfen, bevor das Produkt
ans Netz angeschlossen wird.
TECHNISCHE DATEN
Betriebsspannung . . . . . . .230V AC +10/-15%,
Stromverbrauch . . . . . . . . . . . . . . . . . . . . . .6 VA
Absicherung . . . . . . . . . . . . . . . . . . . . .max. 16A
Eingebauter Ein/Ausschalter . . . . . .1-polig, 16A
Ausgangsrelais . . .Schliesskontakt- SPST - NO
Ausgangsstrom
OTN-1991-EKL . . . . . . . . .16A, 3600W
OTN-1999-EKL . . . . . . . . .16A, 3600W
Regelverfahren . . . . . . . . . . . . . . . . . . .ON/OFF
Regelbarer Temperaturbereich . . . . . .+5/+40°C
Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . .0,4°C
Einstellbare Nachtabsenkung . . . . . . . .fest 5°C
- Steuerspannung . . . . . . . . . . . . . . . . .230V AC
Skalenbegrenzung . . . . . . . . . . . . . . .min./max.
Fühler-Unterbruch-Sicherung bei . . . . . . .-20°C
Betriebstemperatur . . . . . . . . . . . . . . . .0/+50°C
Abmessungen . . . . . . . . . .H/80, B/80, D/50 mm
Gehäuseschutzart
OTN-1991-EKL . . . . . . . . . . . . . . .IP20
OTN-1999-EKL . . . . . . . . . . . . . . .IP20
Der Thermostat is wartungsfrei.
KLASSIFIKATION
Das Produkt ist ein Klasse II Gerät (verstärkte
Isolation) und das Produkt ist an die folgenden
Leiter anzuschliessen:
Lagernummer: 57784 - 04/02 (BJ)
50/60 Hz
