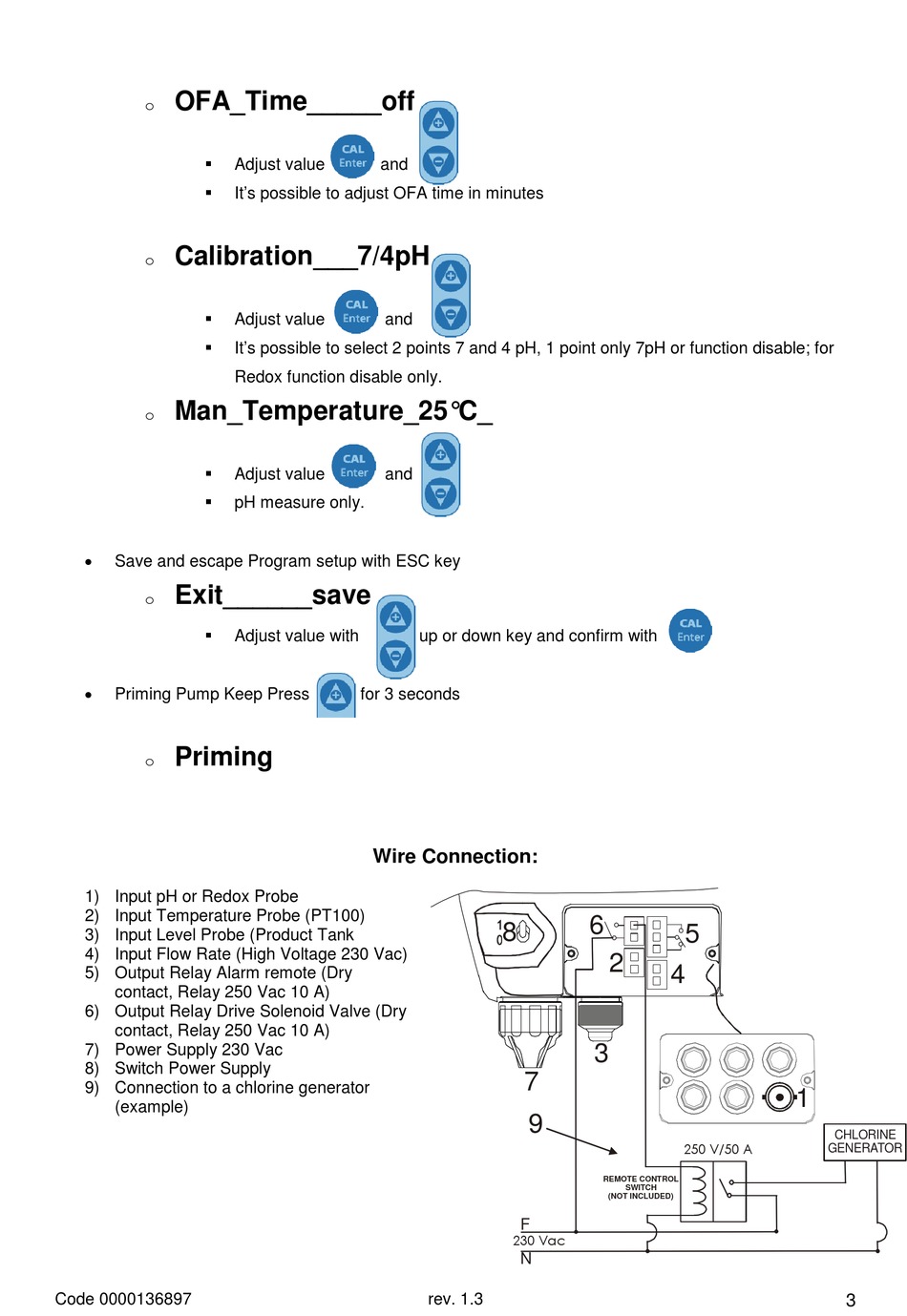

OFA_Time_____off
o
 Adjust value
 It's possible to adjust OFA time in minutes
Calibration___7/4pH
o
 Adjust value
 It's possible to select 2 points 7 and 4 pH, 1 point only 7pH or function disable; for
Man_Temperature_25°C_
o
 Adjust value
 pH measure only.

Save and escape Program setup with ESC key
Exit______save
o
 Adjust value with

Priming Pump Keep Press
Priming
o
1) Input pH or Redox Probe
2) Input Temperature Probe (PT100)
3) Input Level Probe (Product Tank
4) Input Flow Rate (High Voltage 230 Vac)
5) Output Relay Alarm remote (Dry
contact, Relay 250 Vac 10 A)
6) Output Relay Drive Solenoid Valve (Dry
contact, Relay 250 Vac 10 A)
7) Power Supply 230 Vac
8) Switch Power Supply
9) Connection to a chlorine generator
(example)
Code 0000136897
and
and
Redox function disable only.
and
for 3 seconds
Wire Connection:
up or down key and confirm with
6
8
7
9
F
230 Vac
N
rev. 1.3
5
2
4
3
250 V/50 A
REMOTE CONTROL
SWITCH
(NOT INCLUDED)
1
CHLORINE
GENERATOR
3
