Connector M1

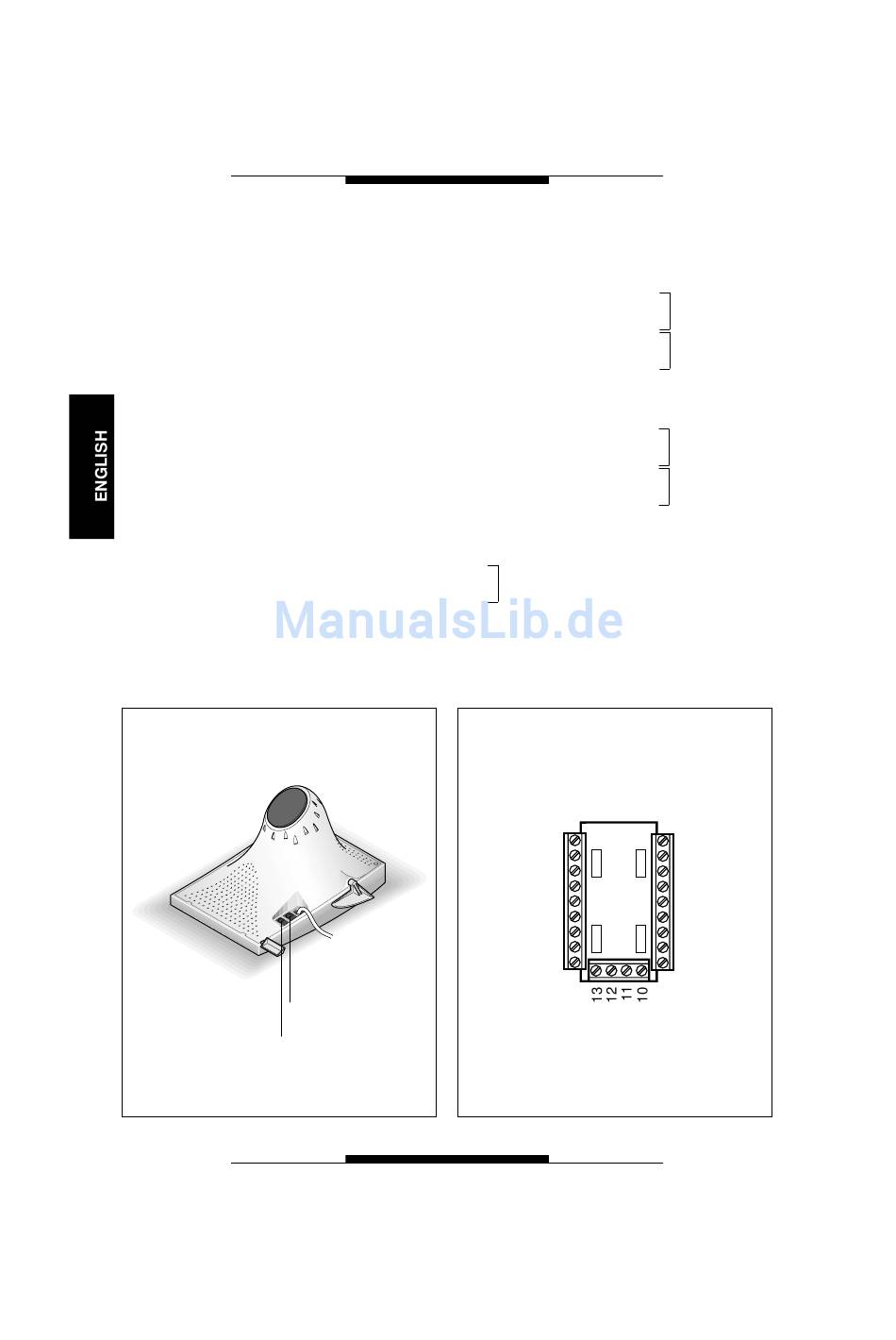

This is used for connecting the unit's recei-
ver (fig. 1).
Connector CN2
This is used for connecting the unit to the
local telephone line (fig. 1).
NOTE. The unit must be connected on ana-
logue telephone lines only and not digital
ISDN lines.
CN1

CONNECTIONS

Function of socket terminal
(see fig. 2)
1 video signal
2 video signal shield
3 video signal
4 video signal shield
( 1
nect a 75 Ω (violet-green-black-gold) resistor
between terminals 1 and 2.
1 positive video signal
2 negative video signal
3 positive video signal
4 negative video signal
( 2
nect the two 56 Ω (green-blue-black-gold)
resistors between terminals 1-5 and 2-5.
5 −
6 +
7 call input from entry panel
8 audio from entry panel
CN2
1
22
) If the video line ends at this monitor, con-
) If the video line ends at this monitor, con-
14 ÷ 17.5V supply voltage to monitor
22
21
20
19
18
17
16
15
14
coaxial
( 1 )
cable
coaxial
cable
twisted
( 2 )
pair
twisted
pair
1
2
3
4
5
6
7
8
9
