Row, block, angled installation
Row (up to 5 tanks),
block (2-25 tanks)
and angled instal-
lation (3-14 tanks)
D
GB
F
I
NL

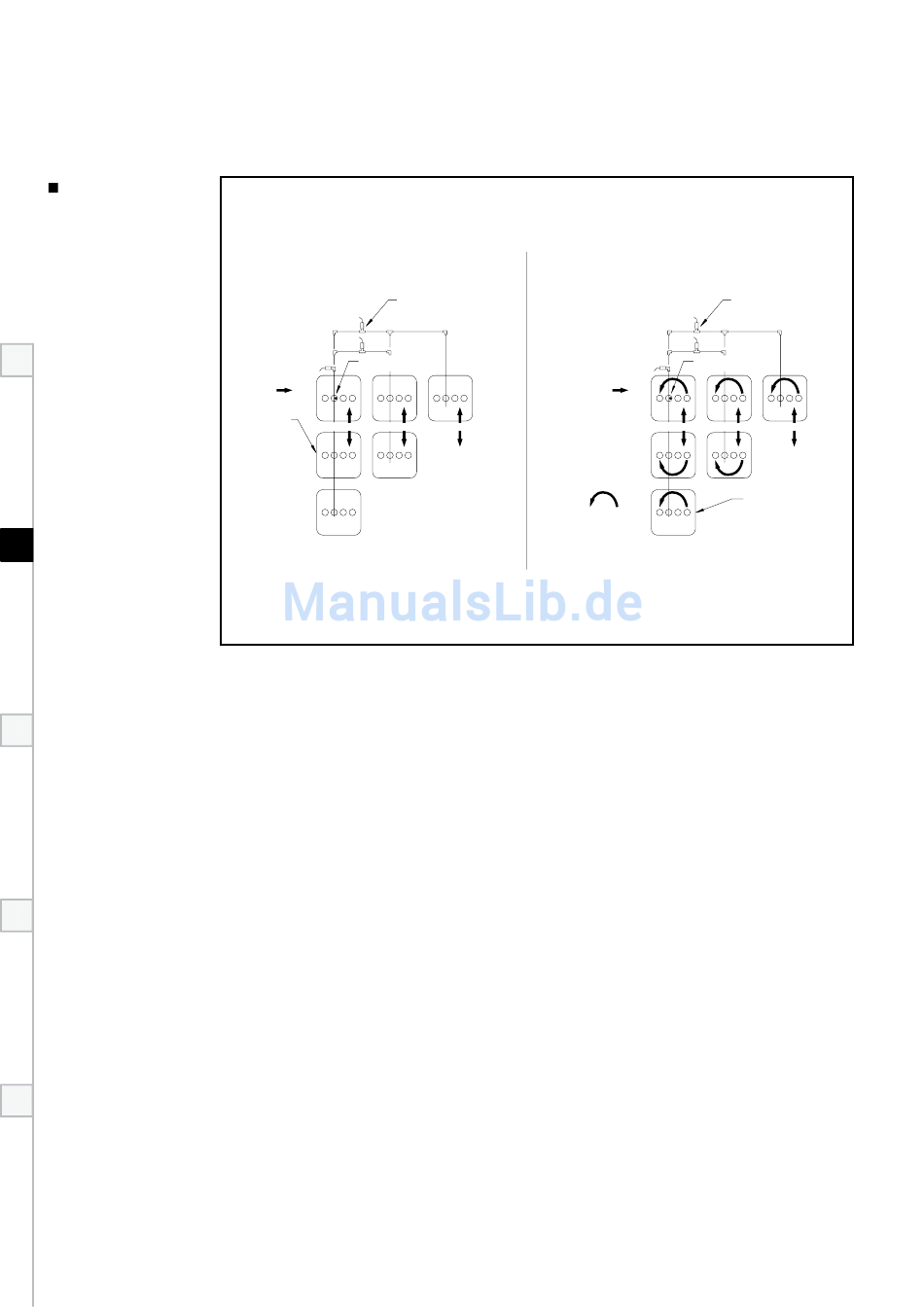

Extraction with DWT L-installation (schematic)
Quick shut-off valve
Pos. of the quick shut-off valve
(connection for single strand system)
with 3 tank rows
with 2 tank rows
overfill prevention device
with 3 tank rows
Supply
Tank front side
(type plate) 3. row 2. row
1. 2. 3. 4.
Connections
Pos. of the quick shut-off valve
with 3 tank rows
with 2 tank rows
with 1 tank rows
Supply
1. row
Move dip pipes
from 1st to 4th
connections!
Reversed installation possible!
24
Quick shut-off valve
(connection for single strand system)
overfill prevention device
3. row 2. row 1. row
Tank front side
(type plate)
1. 2. 3. 4.
Connections
Fig. 3
