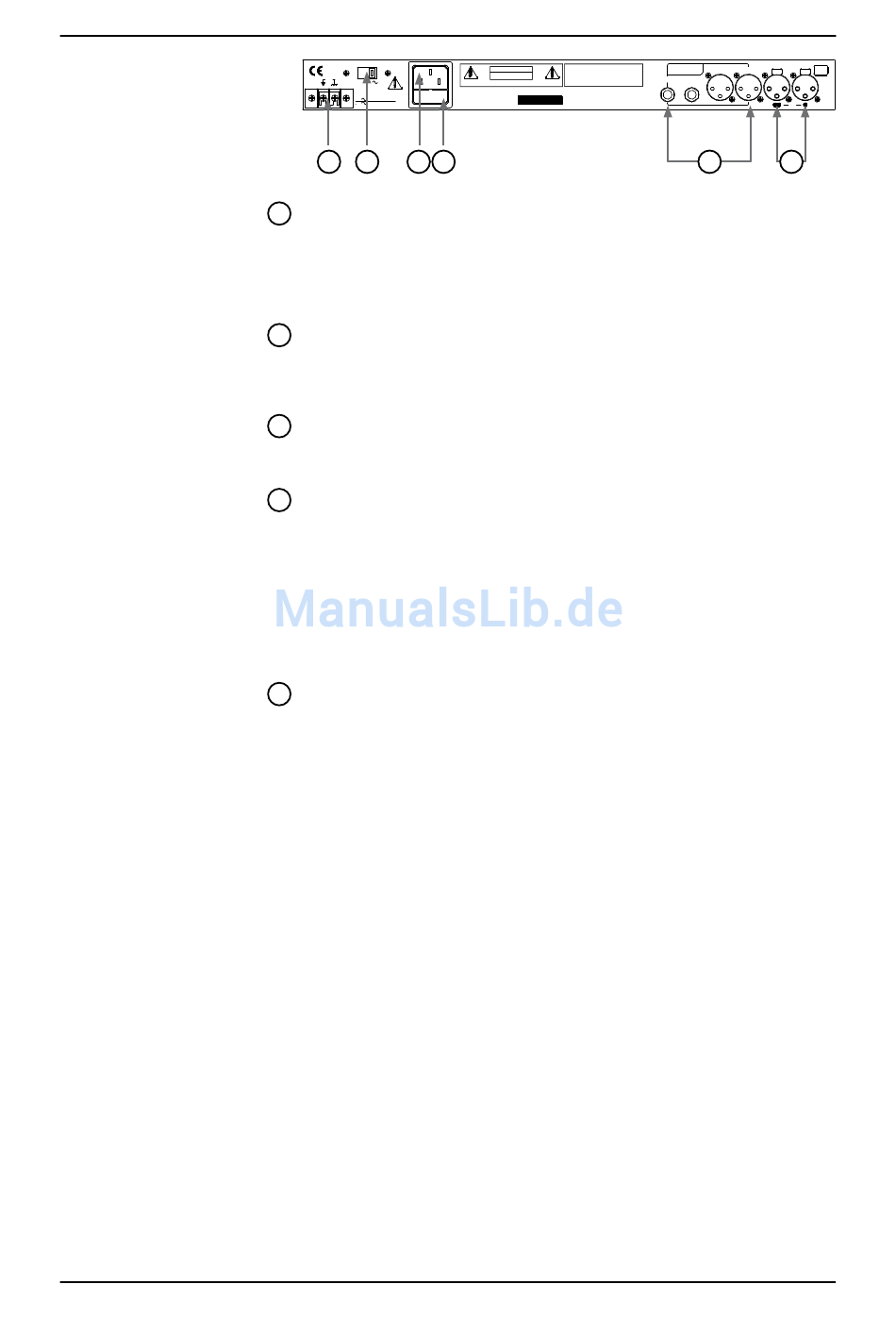

Connections
ground link
Voltage selector Switch
Mains connector
Fuse Drawer
line Output
2
analog
P2
LINK
115/230 V
50/60 Hz, 22W
For continued protection against fire
replace only with same type fuse:
115 T 315 mA L , 250V
230 T 160 mA L , 250V
3 4
1 2
The Signal Ground LINK connects signal ground to earth ground. Signal
1
ground is isolated from earth ground if the LINK jumper is removed.
This jumper will normally be installed. See "Troubleshooting" section for
usage tips.
Prior to connecting the AC mains power cord, verify that the Voltage
2
Selector switch on the rear panel is set for the AC mains voltage in your
area.
3
Plug in a standard IEC mains cable
4
Voltage Selector Position Operating Voltage Range Fuses (2)
11 V 100-12 VAC • 0 Hz T 1 mA L, 20 V
20 V 200-24 VAC • 0 Hz T 10 mA L, 20 V
CAUTION: Replacement fuses should be only of types listed above and
according IEC 012-2 standard.
Output Cable Connection: For ease of connection, two styles of bal-
5
anced output connector (XLR and TRS) are provided. Both connector
types are electrically equivalent and may be used simultaneously to
connect to Line Inputs on mixing consoles, recorders, etc. If both pairs
of outputs are used, care should be taken to avoid system ground loops.
See "Troubleshooting" section for tips on avoiding hum caused by
grounding problems.
The TRS and XLR output connectors are not electronically isolated.
Therefore, if you chose to connect either one of the output connectors
to an unbalanced input, the other connector will automatically be unbal-
anced. When connecting an output of the P2
input, you must connect the negative signal pin (pin  of the XLR or
"ring" of the TRS) to the shield. Failure to do this will result in audible
distortion.
The wiring configuration used for the output connectors
analog
on the P2
is:
For XLR:
Pin 2 is positive (+)
Pin  is negative ()
Pin 1 is shield (GND)
systems
TRUE
This device complies with Part 15 of the FCC Rules.
CAUTION
Operation is subject to the following two conditions:
RISK OF ELECTRIC SHOCK
(1) this device may not cause harmful interference,
DO NOT OPEN
and (2) this device must accept any interference that
ATTENTION
may cause undesired operation.
RISQUE DE CHOC ELECTRIQUE - NE PAS OVRIR
SUNRISE ENGINEERING AND DESIGN INC. TUCSON, ARIZONA U.S.A.
TRUE Systems - P2analog
For TRS:
Tip is positive (+)
Ring is negative ()
Sleeve is shield (GND)
BALANCED MIC 2 MIC 1
OUT 2 OUT 1
ANALOG OUTS
OUT 1
OUT 2
MS
5 6
analog
to an unbalanced
PIN 2 +
PIN 3 -
