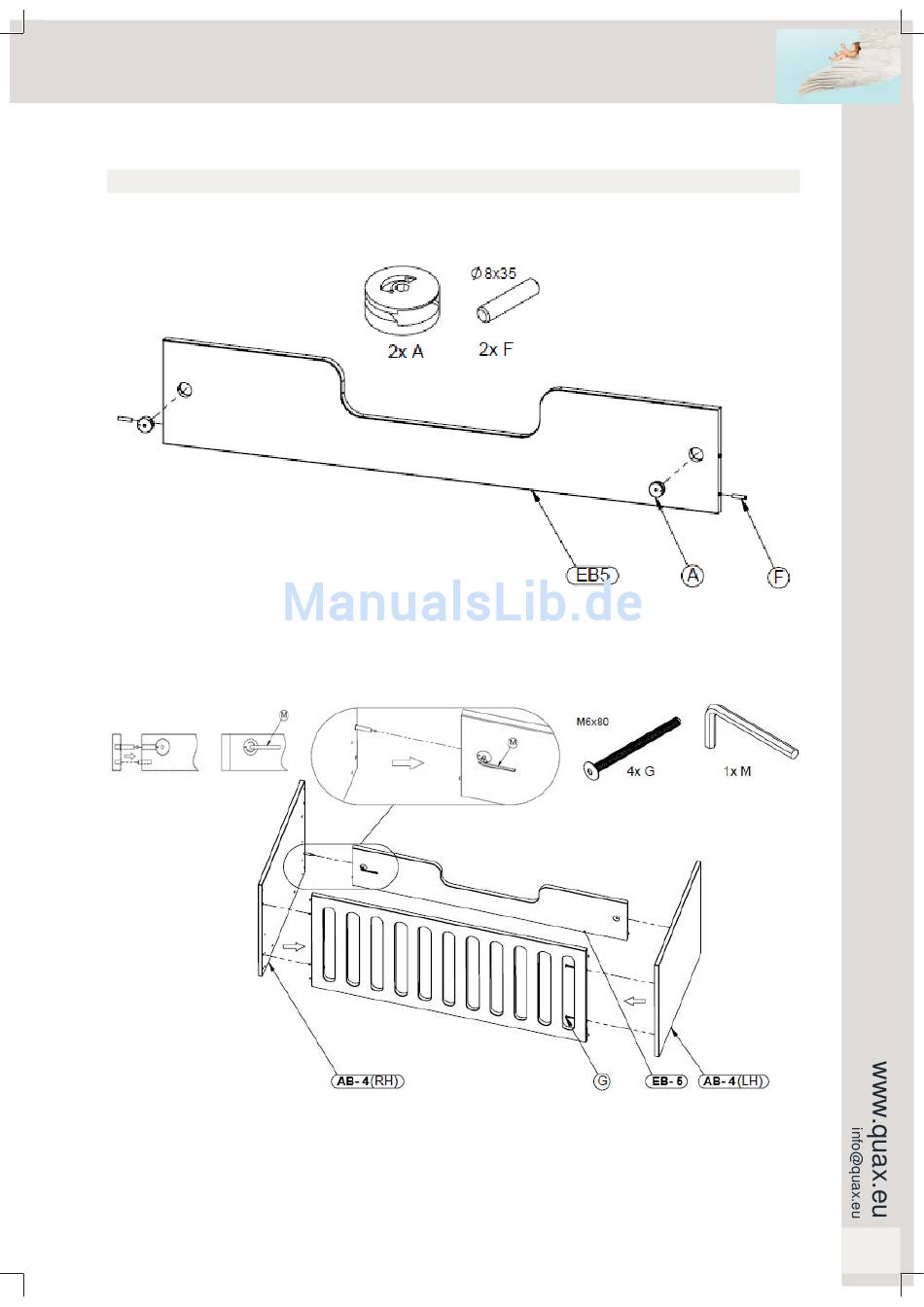

4. Assembling the bedrail
Separate the superstructure from the chassis and remove one side with bars or
the longeron.
Step 1 : Use the bedrail EB5, two wooden dowels F and four eccentrics A
Push two eccentrics (A) in the provided holes at the innerside of the bedrail (EB5). Push two wooden dow-
els (F) in the provided holes at the ends of the bedrail.
Step 2 : Use the bedrail of step 1 and the parts of the superstructure of the bed
Push the bedrail with its wooden dowels into the holes and over the connectors in the end sides and tighten
the eccentrics. Push all the parts back in place and tighten the eccentrics.
Bedrail 140 cm
Bettgitter 140 cm
Barrière 140 cm
Bedrail 140 cm
