4. Assembling the babybed

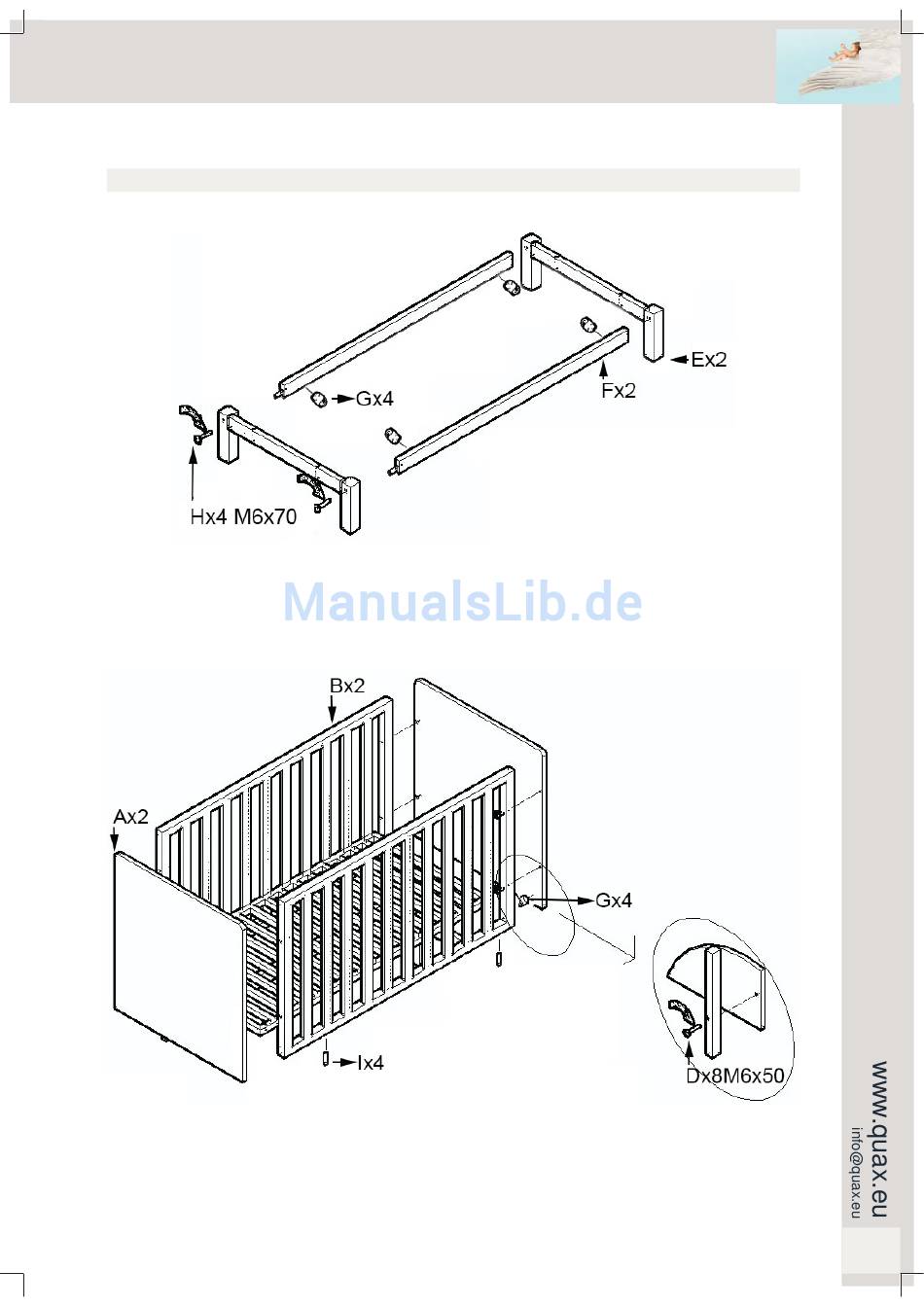

Step 1 : Use both crossbars F, both leg frames E, four eccentrics G and four connectors H

Push the eccentrics (G) in the drillings on the inside of the crossbars (F). Push the leg frames (E) on the

wooden dowels of crossbars (F). Insert the connectors (H) in the drillings of the leg frames and tighten the

eccentrics.

Step 2 : Use both end panels A, both sides B, eight bolts D, four eccentrics G and four wooden dowels I

Push the bolts (D) into the drillings of the sides (B). Place the end panels (A) in front of the bolts of the

sides. Tighten the bolts in the provided nuts of the end panels. Turn the superstructure 180° and insert the

wooden dowels (I) into the drillings of the sides. Push the eccentrics (G) in the holes of the end panels.
