4. Assembling the rocker

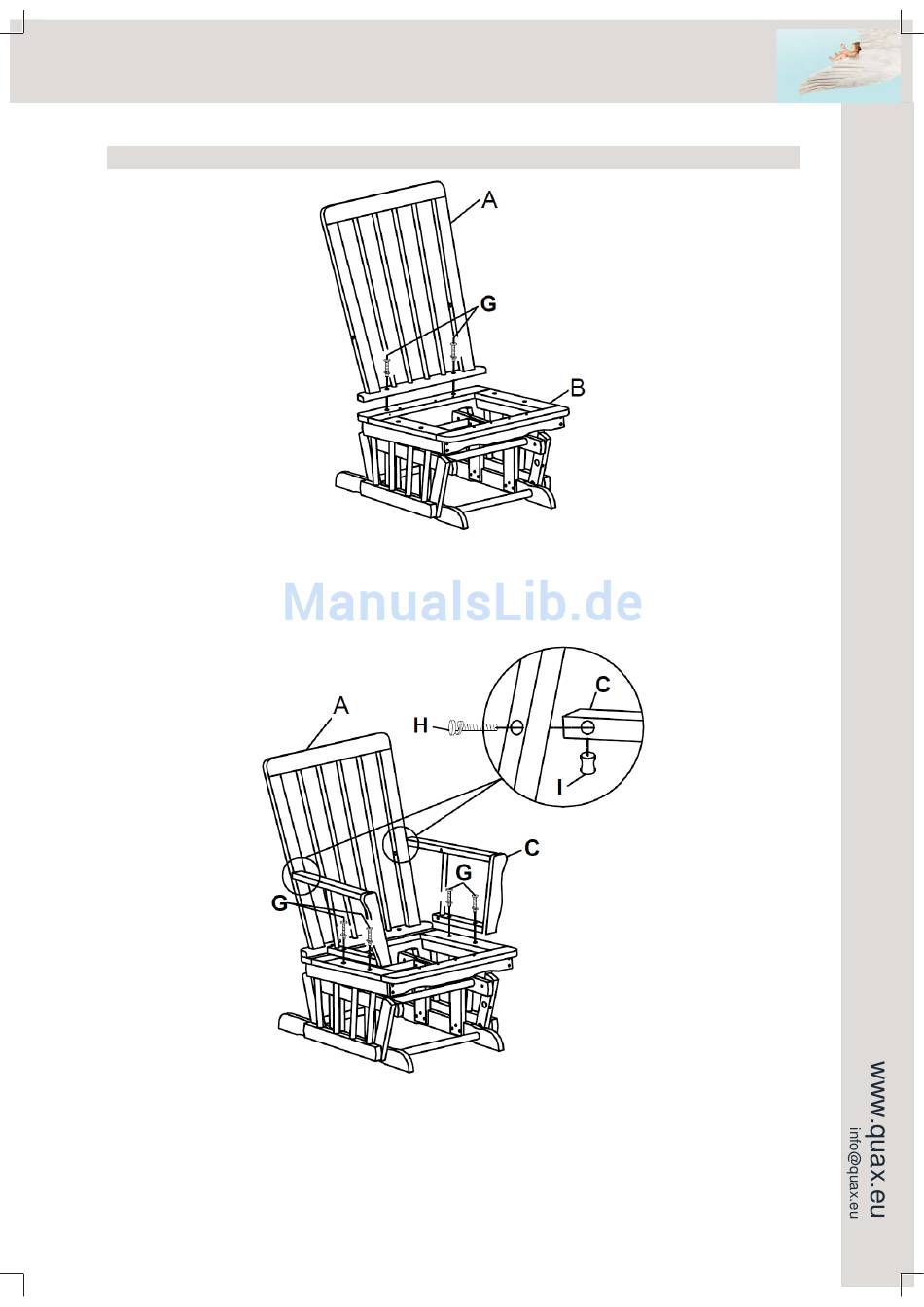

Step 1 : Use the back A, the structure B, two bolts G and the hexagonal key J
Place the back (A) with its provided openings on top of the drillings of the chassis (B). Push the bolts (G)
through the openings in the back and tighten them
(J).
Step 2 : Use the parts of step 1, both armrests C, two bolts G, two cylindrical nuts I and the two bolts H
Place the armrests (C) with their provided openings on top of the drillings of the chassis (B). Push the bolts
(G) through the openings in the armrests and tighten them in the chassis using the hexagonal key (J). Push
the cylindrical nuts (I) in the provided openings at the bottom and the rear of the armrests (C). Push the
bolts (H) through the openings at the innerside of the back, in the armrests and in the cylindrical nuts and
fi x them. Now tighten all connections fi rmly.
