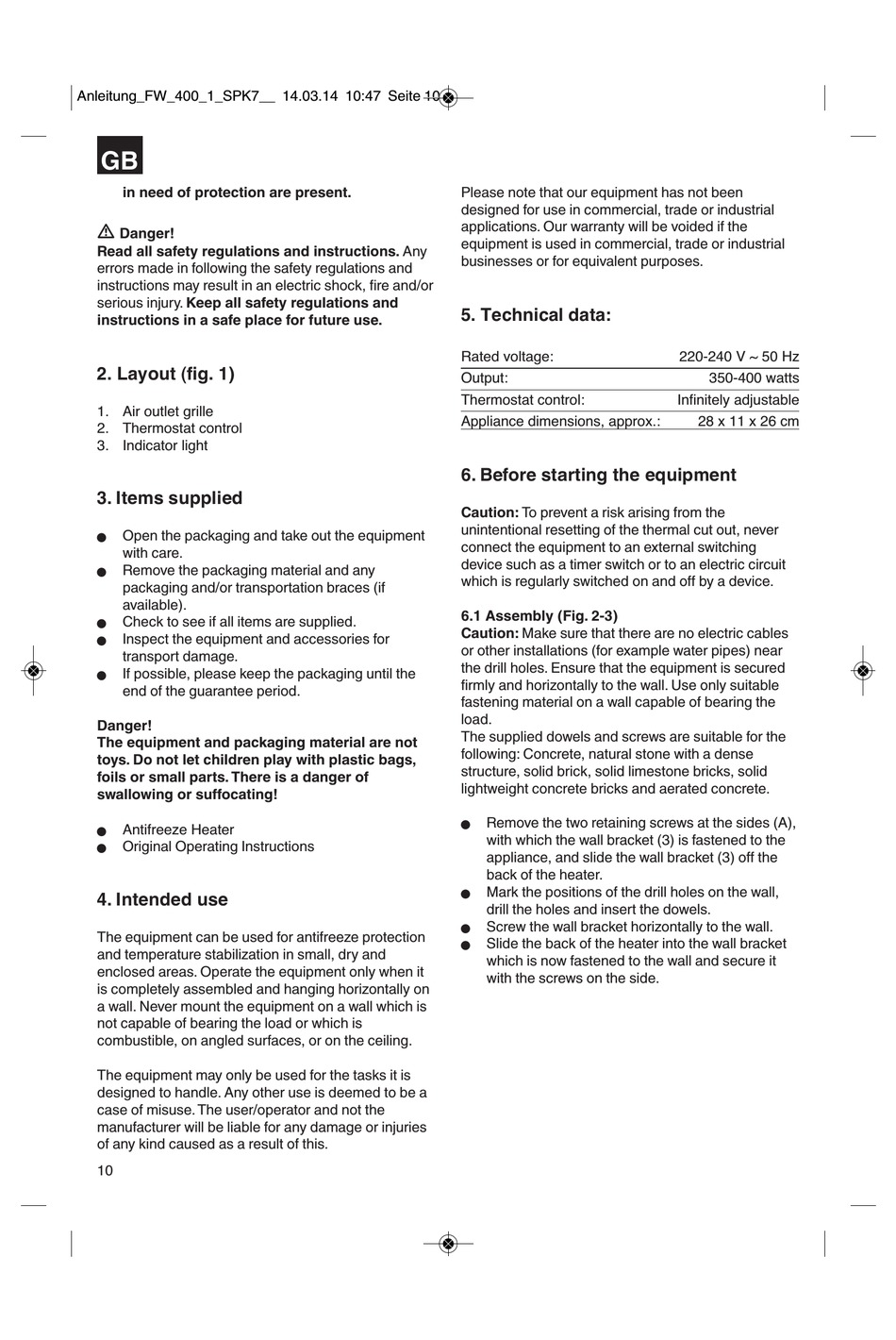

Anleitung_FW_400_1_SPK7__ 14.03.14 10:47 Seite 10
GB
in need of protection are present.
Danger!
Read all safety regulations and instructions. Any
errors made in following the safety regulations and
instructions may result in an electric shock, fire and/or
serious injury. Keep all safety regulations and
instructions in a safe place for future use.
2. Layout (fig. 1)
1. Air outlet grille
2. Thermostat control
3. Indicator light

3. Items supplied

Open the packaging and take out the equipment
n
with care.
Remove the packaging material and any
n
packaging and/or transportation braces (if
available).
Check to see if all items are supplied.
n
Inspect the equipment and accessories for
n
transport damage.
If possible, please keep the packaging until the
n
end of the guarantee period.
Danger!
The equipment and packaging material are not
toys. Do not let children play with plastic bags,
foils or small parts. There is a danger of
swallowing or suffocating!
Antifreeze Heater
n
Original Operating Instructions
n

4. Intended use

The equipment can be used for antifreeze protection
and temperature stabilization in small, dry and
enclosed areas. Operate the equipment only when it
is completely assembled and hanging horizontally on
a wall. Never mount the equipment on a wall which is
not capable of bearing the load or which is
combustible, on angled surfaces, or on the ceiling.
The equipment may only be used for the tasks it is
designed to handle. Any other use is deemed to be a
case of misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries
of any kind caused as a result of this.
10
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
equipment is used in commercial, trade or industrial
businesses or for equivalent purposes.

5. Technical data:

Rated voltage:
Output:
Thermostat control:
Appliance dimensions, approx.:

6. Before starting the equipment

Caution: To prevent a risk arising from the
unintentional resetting of the thermal cut out, never
connect the equipment to an external switching
device such as a timer switch or to an electric circuit
which is regularly switched on and off by a device.
6.1 Assembly (Fig. 2-3)
Caution: Make sure that there are no electric cables
or other installations (for example water pipes) near
the drill holes. Ensure that the equipment is secured
firmly and horizontally to the wall. Use only suitable
fastening material on a wall capable of bearing the
load.
The supplied dowels and screws are suitable for the
following: Concrete, natural stone with a dense
structure, solid brick, solid limestone bricks, solid
lightweight concrete bricks and aerated concrete.
Remove the two retaining screws at the sides (A),
n
with which the wall bracket (3) is fastened to the
appliance, and slide the wall bracket (3) off the
back of the heater.
Mark the positions of the drill holes on the wall,
n
drill the holes and insert the dowels.
Screw the wall bracket horizontally to the wall.
n
Slide the back of the heater into the wall bracket
n
which is now fastened to the wall and secure it
with the screws on the side.
220-240 V ~ 50 Hz
350-400 watts
Infinitely adjustable
28 x 11 x 26 cm
