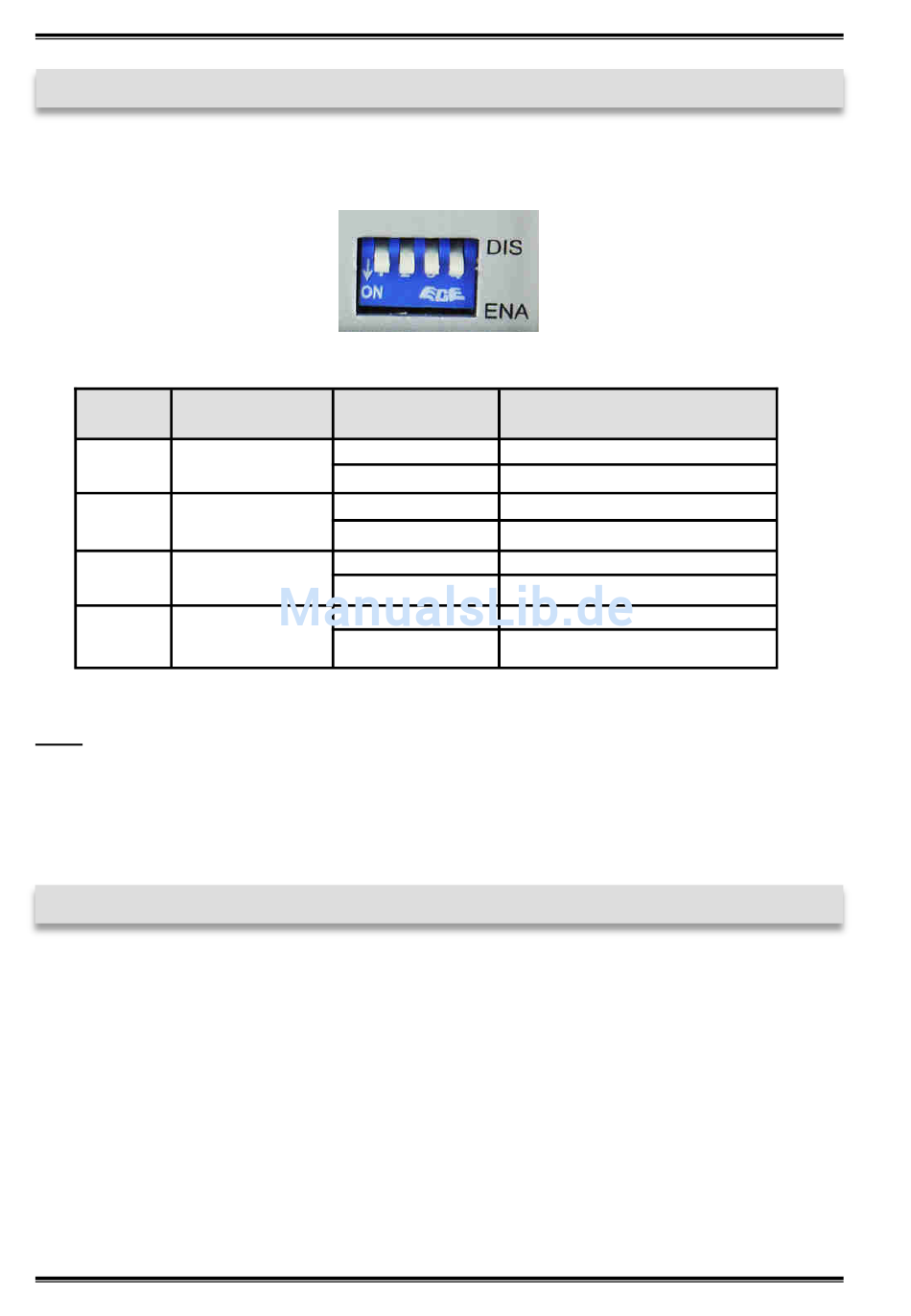

3. Layout, Connections & DIP-Switch

3.3 DIP-Switch

DIP-
Ethernet Port
Switch
1
2
3
4
Note!
*DIP-Switch 1 controls the Onboard Windows Driver. If DIP-Switch 1 is enabled, then also
the driver is enabled. Otherwise the DIP-Switch 1 is disabled, then also the driver is disab-
led.

4. Hardware Installation

Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. If you want to install the EX-1329 on a wall or on a DIN-RAIL, then please go ahead
with the steps 5, 6 & 7 on page 7 before proceeding to step 2.
2. Set the DIP-Switches 2, 3 & 4 to disabled and only the DIP-Switch 1 to enabled and
connect the included USB cable to the USB C-Port of the hub.
3. Connect the optional power supply to the DC connector at the hub.
4. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
