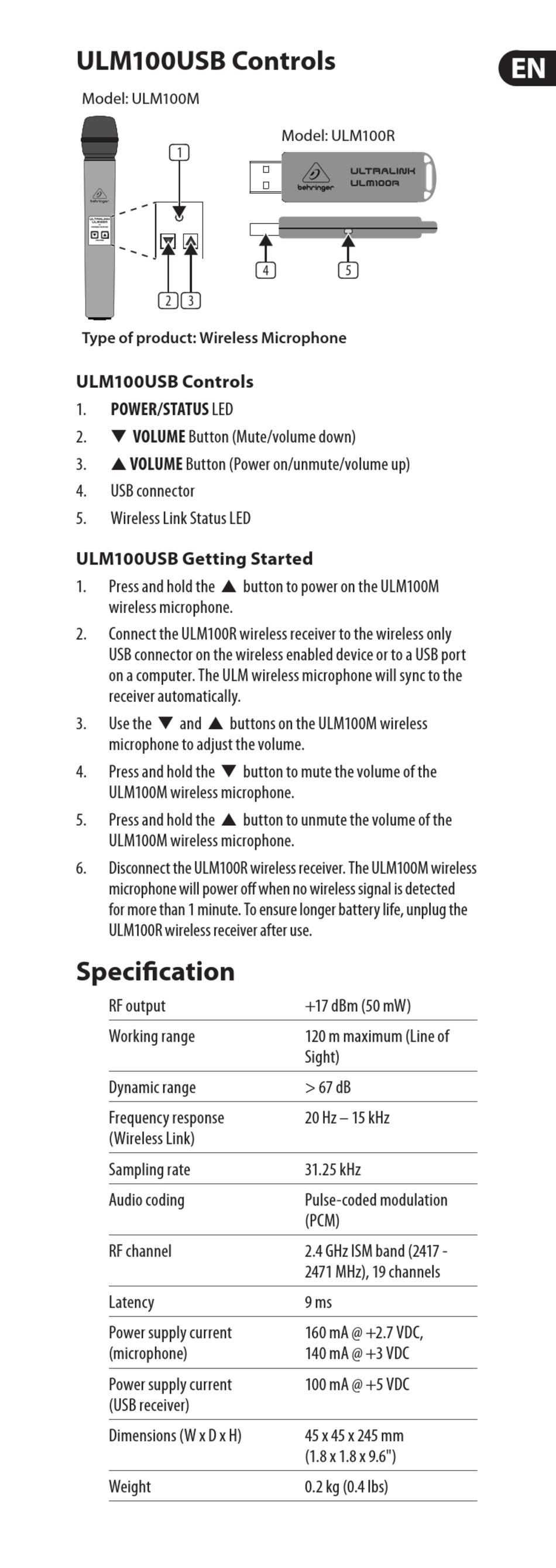

ULM100USB Controls
Model: ULM100M
(1)
(2) (3)
Type of product: Wireless Microphone
ULM100USB Controls
POWER/STATUS LED
1.
2. ▼ VOLUME Button (Mute/volume down)
▲ VOLUME Button (Power on/unmute/volume up)
3.
4. USB connector
5. Wireless Link Status LED
ULM100USB Getting Started
1. Press and hold the ▲ button to power on the ULM100M
wireless microphone.
2. Connect the ULM100R wireless receiver to the wireless only
USB connector on the wireless enabled device or to a USB port
on a computer. The ULM wireless microphone will sync to the
receiver automatically.
3. Use the ▼ and ▲ buttons on the ULM100M wireless
microphone to adjust the volume.
4. Press and hold the ▼ button to mute the volume of the
ULM100M wireless microphone.
5. Press and hold the ▲ button to unmute the volume of the
ULM100M wireless microphone.
6. Disconnect the ULM100R wireless receiver. The ULM100M wireless
microphone will power off when no wireless signal is detected
for more than 1 minute. To ensure longer battery life, unplug the
ULM100R wireless receiver after use.

Specification

RF output
Working range
Dynamic range
Frequency response
(Wireless Link)
Sampling rate
Audio coding
RF channel
Latency
Power supply current
(microphone)
Power supply current
(USB receiver)
Dimensions (W x D x H)
Weight
Model: ULM100R
(4) (5)
+17 dBm (50 mW)
120 m maximum (Line of
Sight)
> 67 dB
20 Hz – 15 kHz
31.25 kHz
Pulse-coded modulation
(PCM)
2.4 GHz ISM band (2417 -
2471 MHz), 19 channels
9 ms
160 mA @ +2.7 VDC,
140 mA @ +3 VDC
100 mA @ +5 VDC
45 x 45 x 245 mm
(1.8 x 1.8 x 9.6")
0.2 kg (0.4 lbs)
