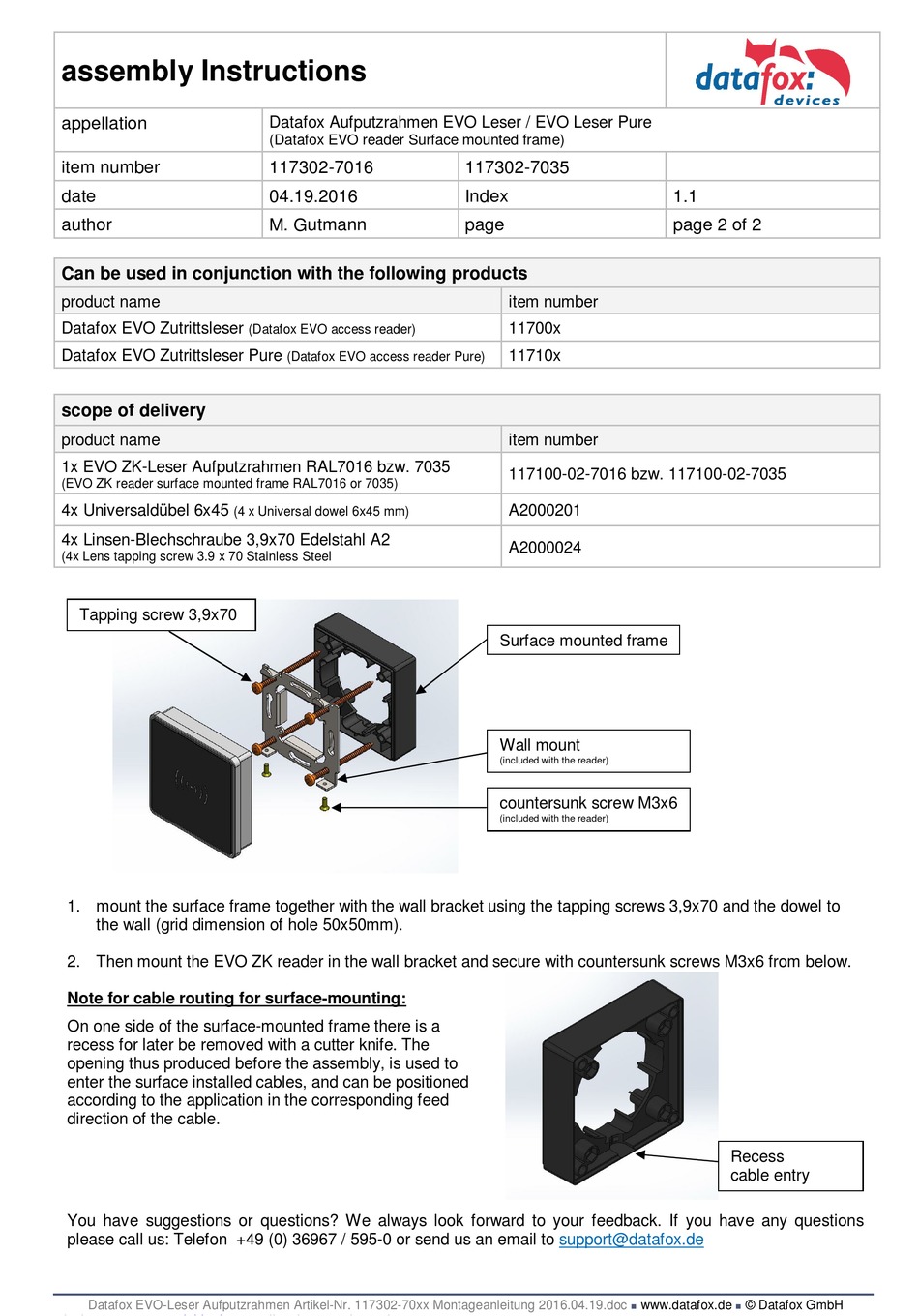

Datafox EVO Montageanleitung Seite 2

assembly Instructions
appellation
item number
date
author
Can be used in conjunction with the following products
product name
Datafox EVO Zutrittsleser
Datafox EVO Zutrittsleser Pure
scope of delivery
product name
1x EVO ZK-Leser Aufputzrahmen RAL7016 bzw. 7035
(EVO ZK reader surface mounted frame RAL7016 or 7035)
4x Universaldübel 6x45
(4 x Universal dowel 6x45 mm)
4x Linsen-Blechschraube 3,9x70 Edelstahl A2
(4x Lens tapping screw 3.9 x 70 Stainless Steel
Tapping screw 3,9x70
1. mount the surface frame together with the wall bracket using the tapping screws 3,9x70 and the dowel to
the wall (grid dimension of hole 50x50mm).
2. Then mount the EVO ZK reader in the wall bracket and secure with countersunk screws M3x6 from below.
Note for cable routing for surface-mounting:
On one side of the surface-mounted frame there is a
recess for later be removed with a cutter knife. The
opening thus produced before the assembly, is used to
enter the surface installed cables, and can be positioned
according to the application in the corresponding feed
direction of the cable.
You have suggestions or questions? We always look forward to your feedback. If you have any questions
please call us: Telefon +49 (0) 36967 / 595-0 or send us an email to
Datafox EVO-Leser Aufputzrahmen Artikel-Nr. 117302-70xx Montageanleitung 2016.04.19.doc
Datafox Aufputzrahmen EVO Leser / EVO Leser Pure
(Datafox EVO reader Surface mounted frame)
117302-7016
04.19.2016
M. Gutmann
(Datafox EVO access reader)
(Datafox EVO access reader Pure)
117302-7035
Index
page
item number
11700x
11710x
item number
117100-02-7016 bzw. 117100-02-7035
A2000201
A2000024
Surface mounted frame
Wall mount
(included with the reader)
countersunk screw M3x6
(included with the reader)
support@datafox.de
n
1.1
page 2 of 2
Recess
cable entry
www.datafox.de © Datafox GmbH
n
