Observe the label for data connection of the RS-485 interface between the VSM-
102 meter and a gateway: Line A (red) must be installed to the connection with A;
line B (green) to the connection with B.
Polarity reversal will not cause any damage to the meter. There will simply
not be any connection. For other explanations on this subject, including
troubleshooting, see the respective operating instructions for the product.

LCD DISPLAY

The display automatically switches every 5 seconds between the current meter rea-
ding and the output displays. The pushbutton to the right of the LCD can be used to
manually switch between the views; after 20 seconds, the meter automatically swit-
ches the different views again.
The meter has the following views:

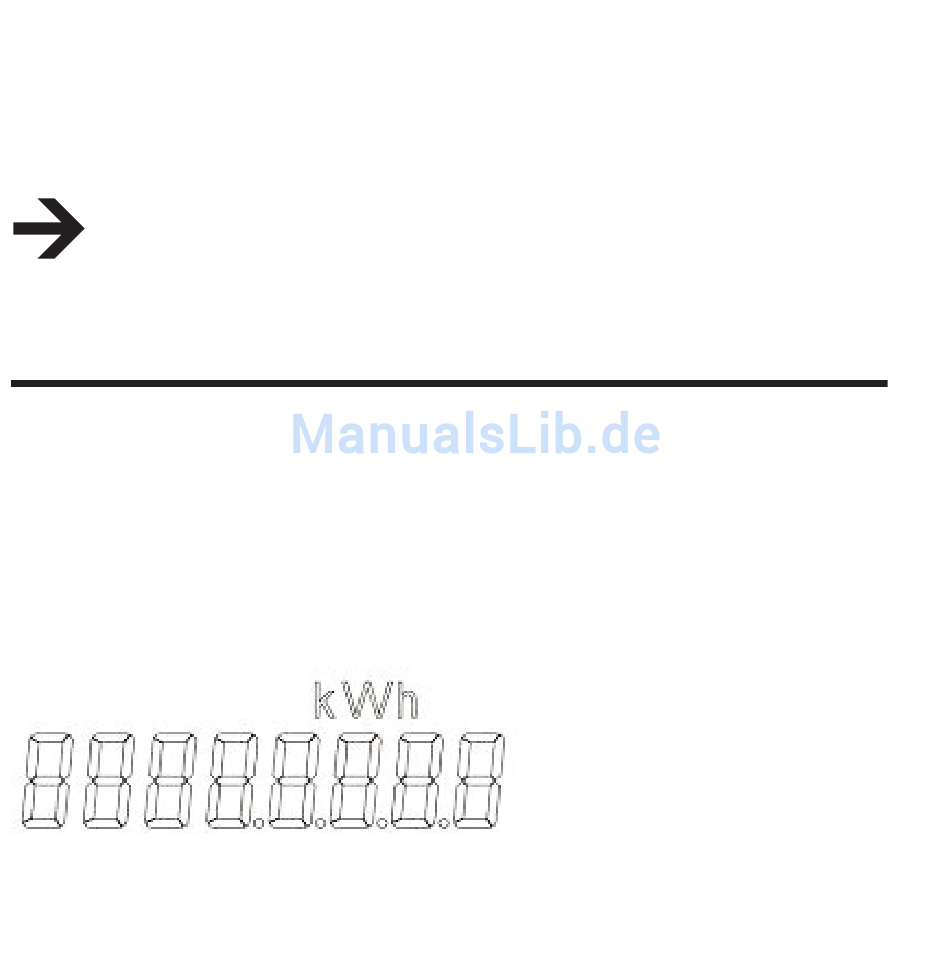

Complete display
