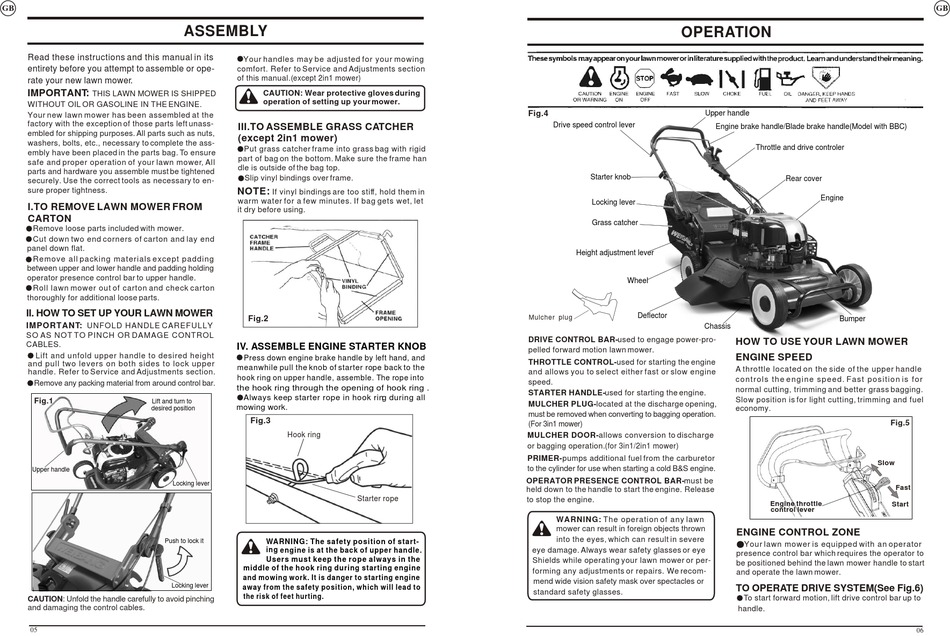

WEIBANG WB 454HB Bedienungsanleitung Seite 5

GB
Read these instructions and this manual in its
entirety before you attempt to assemble or ope-
rate your new lawn mower.
IMPORTANT:
THIS LAWN MOWER IS SHIPPED
WITHOUT OIL OR GASOLINE IN THE ENGINE.
Your new lawn mower has been assembled at the
factory with the exception of those parts left unass-
embled for shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to complete the ass-
embly have been placed in the parts bag. To ensure
safe and proper operation of your lawn mower, All
parts and hardware you assemble must be tightened
securely. Use the correct tools as necessary to en-
sure proper tightness.
I.TO REMOVE LAWN MOWER FROM
CARTON
lRemove loose parts included with mower.
l
Cut down two end corners of carton and lay end
panel down flat.
l
Remove all packing materials except padding
between upper and lower handle and padding holding
operator presence control bar to upper handle.
l
Roll lawn mower out of carton and check carton
thoroughly for additional loose parts.
II. HOW TO SET UP YOUR LAWN MOWER
IMPORTANT: UNFOLD HANDLE CAREFULLY
SO AS NOT TO PINCH OR DAMAGE CONTROL
CABLES.
Lift and unfold upper handle to desired height
and pull two levers on both sides to lock upper
handle. Refer to Service and Adjustments section.
Remove any packing material from around control bar.
Fig.1
Lift and turn to
desired position
l
Upper handle
Locking lever
Push to lock it
Locking lever
CAUTION: Unfold the handle carefully to avoid pinching
and damaging the control cables.
05
ASSEMBLY
lYour handles may be adjusted for your mowing
comfort. Refer to Service and Adjustments section
of this manual.(
except 2in1 mower)
CAUTION: Wear protective gloves during
operation of setting up your mower.
III.TO ASSEMBLE GRASS CATCHER
(except 2in1 mower)
lPut grass catcher frame into grass bag with rigid
part of bag on the bottom. Make sure the frame han
dle is outside of the bag top.
l Slip vinyl bindings over frame.
NOTE:
If vinyl bindings are too stiff, hold them in
warm water for a few minutes. If bag gets wet, let
it dry before using.
Fig.2
IV. ASSEMBLE ENGINE STARTER KNOB
lPress down engine brake handle by left hand, and
meanwhile pull the knob of starter rope back to the
hook ring on upper handle, assemble. The rope into
the hook ring through the opening of hook ring .
lAlways keep starter rope in hook rin g during all
mowing work.
Fig.3
Hook ring
Starter rope
WARNING: The safety position of start-
ing engine is at the back of upper handle.
Users must keep the rope always in the
middle of the hook ring during starting engine
and mowing work. It is danger to starting engine
away from the safety position, which will lead to
the risk of feet hurting.
OPERATION
Fig.4
Upper handle
Drive speed control lever
Starter knob
Locking lever
Grass catcher
Height adjustment lever
Wheel
Deflector
Deflector
Mulcher plug
Chassis
DRIVE CONTROL BAR-used to engage power-pro-
pelled forward motion lawn mower.
THROTTLE CONTROL-used for starting the engine
and allows you to select either fast or slow engine
speed.
STARTER HANDLE-used for starting the engine.
MULCHER PLUG-located at the discharge opening,
must be removed when converting to bagging operation.
(For 3in1 mower)
MULCHER DOOR-allows conversion to discharge
or bagging operation.
(for 3in1/2in1 mower)
PRIMER-pumps additional fuel from the carburetor
to the cylinder for use when starting a cold B&S engine.
OPERATOR PRESENCE CONTROL BAR-must be
held down to the handle to start the engine. Release
to stop the engine.
WARNING: The operation of any lawn
mower can result in foreign objects thrown
into the eyes, which can result in severe
eye damage. Always wear safety glasses or eye
Shields while operating your lawn mower or per-
forming any adjustments or repairs. We recom-
mend wide vision safety mask over spectacles or
standard safety glasses.
Engine brake handle/Blade brake handle(Model with BBC)
Throttle and drive controler
Rear cover
Engine
Bumper
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
A throttle located on the side of the upper handle
controls the engine speed. Fast position is for
normal cutting, trimming and better grass bagging.
Slow position is for light cutting, trimming and fuel
economy.
Fig.5
Slow
Fast
Engine throttle
Start
control lever
ENGINE CONTROL ZONE
Your lawn mower is equipped with an operator
presence control bar which requires the operator to
be positioned behind the lawn mower handle to start
and operate the lawn mower.
TO OPERATE DRIVE SYSTEM(See Fig.6)
To start forward motion, lift drive control bar up to
handle.
