SPECIFICATIONS
• Internal interface: Serial ATA I / II
• External interface: eSATA, USB2.0 (. backward compatible)
• Transfer rates: up to 480Mb/s on USB 2.0 and up to 3.0Gb/s on eSATA
• Power and data transfer indicator: Blue LED
• Case material: aluminum with black leather finish
• Weight: 40g (without a HDD)
• Dimensions: 32mm (L) x 90mm (W) x 6mm (H)
• Power requirements: 5V, 0.5-2.0A (DC)
• Operating Temperatures: 5 to 50 o C
• Storage Temperatures: -40 to 70 o C
• Operating Humidity: 5 to 90%, non-condensing
SYSTEM REQUIREMENT
PC Requirements
• Minimum Intel Processor Pentium II 350MHz, 64MB RAM
• Windows 2000 / XP / VISTA
• Active USB or eSATA port
MAC Requirements
• Minimum Apple G3 processor, 64MB RAM
• Mac OS 9., 9.2, 0..5, 0.2, 0.3
• Active USB or eSATA port
BACK PANEL ARRAGEMENT
LED indicator eSATA port
3
DC5V
E-SATA
USB Port DC 5V Power Input

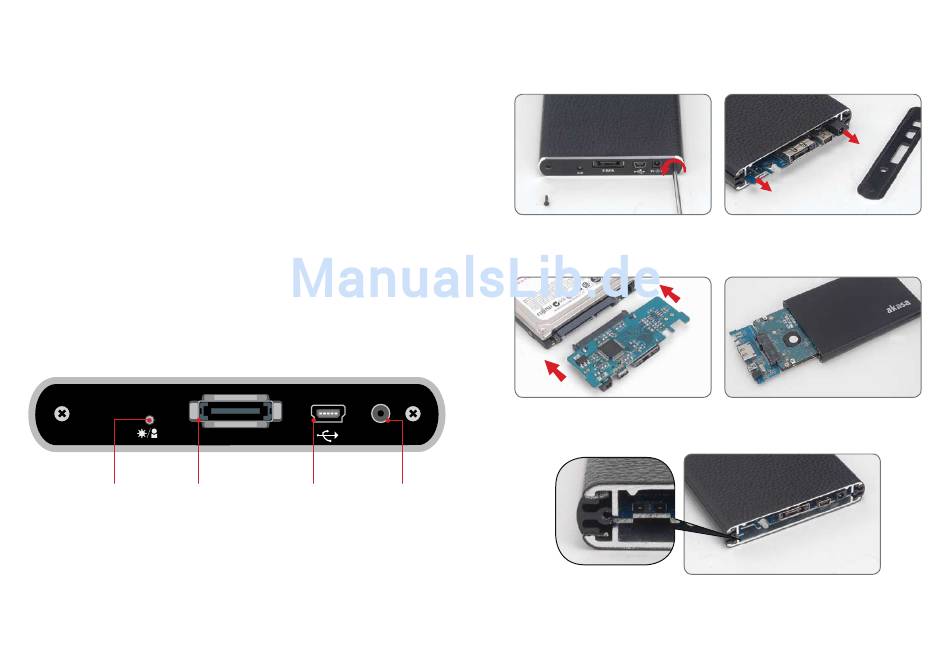

Hard Disk Installation

. Open the back of the enclosure by undoing the securing screws and sliding out the interface
board from the aluminium housing.
2. Line-up the connectors and gently insert the interface board onto the 2.5" SATA hard drive until
the connection is secure. Insert the assembled HDD and interface board into the housing in the
direction shown on the picture below.
3. Push the HDD fully inside until it is flush with the housing.
NOTE: Ensure the interface board fits into the housing grove. If it does not fit correctly,
it is probably inserted upside down.
HDD Installation
