Operating instructions
Barcode Scanner LS6320E
Item no. 1196333
Intended use
Use this barcode scanner to quickly and reliably read standard barcodes such as UPC, EAN
or JAN. The scanned codes can be inserted into documents and forms straight away using a
connected computer. The barcode scanner is ideally suited for use in shops, warehouses or
offices and can be operated with or without its stand.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in
bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged.
In addition, improper use can cause hazards such as short circuiting, fire, electric shock etc.
Read the instructions carefully and keep them. Make this product available to third parties only
together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.

Delivery content

• Barcode scanner with USB cable
• Stand
• Flexible cover tube
• Gooseneck
Latest operating instructions
Download the latest operating instructions via the link www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.

Explanation of symbols

The lightning symbol inside a triangle is used when there is a potential risk of
personal injury, such as electric shock.
An exclamation mark in a triangle indicates important instructions in this operating
manual that absolutely have to be observed.
The arrow symbol indicates specific tips and advice on operation.

Safety instructions

Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
• The product is equipped with a class 1 laser.
• Never look into the laser beam and never point it at people or animals. Laser
radiation can seriously damage your eyes.
• Do not point the laser beam at mirrors or other reflective surfaces. The uncontrolled,
reflected beam may strike people or animals.
• Holder
• Operating instructions
• Quick instructions
• Installation instructions
• Warning! This is category A equipment. This equipment can cause radio
interference in the living area; the operator can be asked to take appropriate
measures in this case.
• Consult an expert when in doubt about operation, safety or connection of the
device.
• Maintenance, modifications and repairs are to be performed exclusively by an
expert or at a qualified shop.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.

Installation

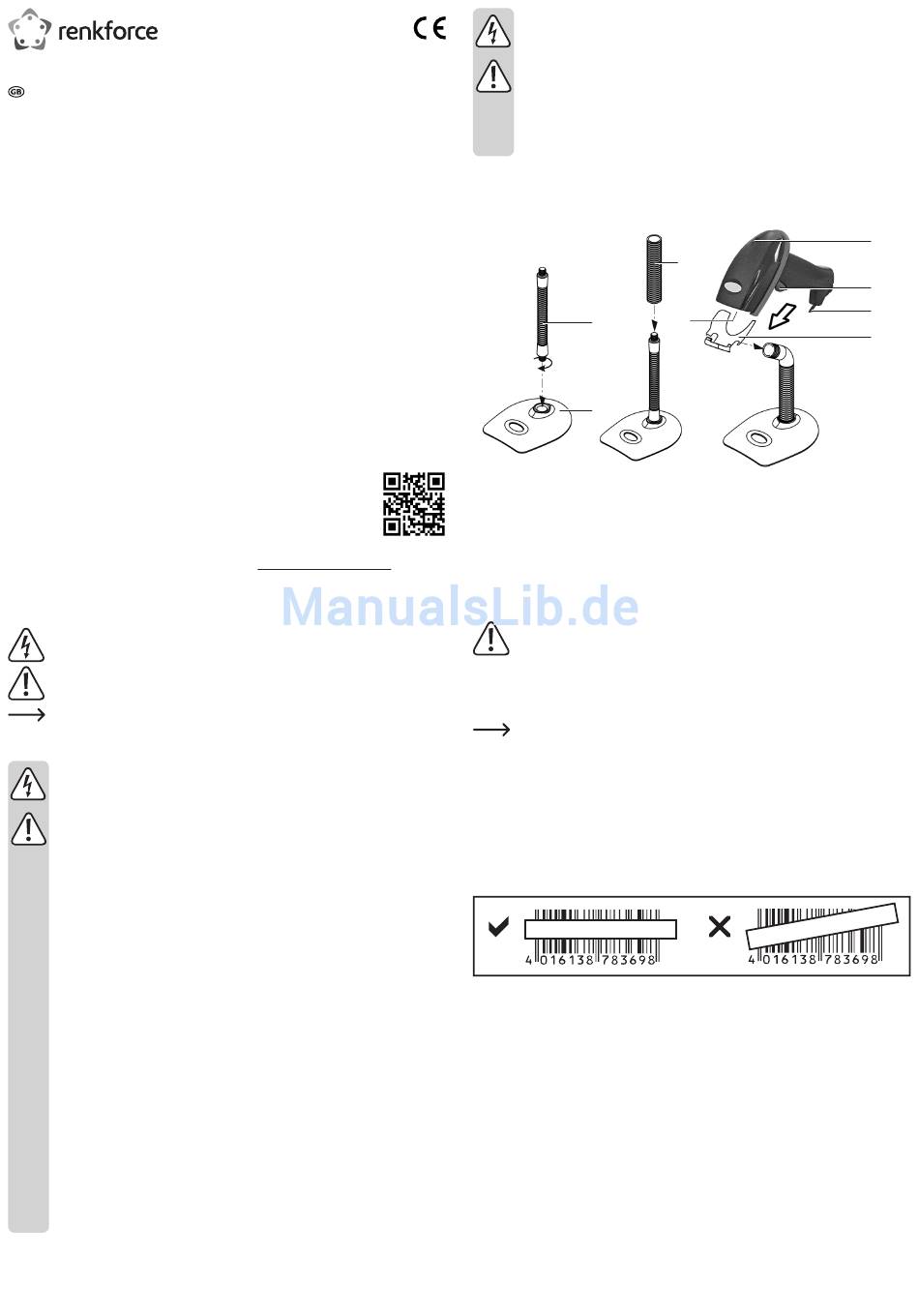

Follow the illustration below on how to proceed with installation:
1
2
1. Screw the gooseneck (1) onto the stand (2) in clockwise direction.
2. Slide the flexible cover tube (3) over the gooseneck.
3. Screw the holder (8) onto the upper end of the gooseneck.
4. The barcode scanner can be inserted into the holder.
5. Position the gooseneck as required.
Startup
Risk of injury!
Never direct the reader (4) towards persons or animals. Laser beams are dangerous.
• Before starting to operate the barcode scanner, note the instructions on scanner settings in
the "Settings" section.
• Connect the USB cable (7) to a USB2.0/USB3.0 interface on your computer.
To disconnect the USB cable from the barcode scanner, insert a thin object, e.g. a
bent paper clip, into the small hole above the connector while simultaneously pulling
the USB cable from the socket.
• Open a document on your computer where you wish to insert the barcode. The barcode will
be inserted at the cursor's position.
• The barcode scanner can be operated with or without its stand.
• Position the reader (4) at a sufficient distance and a tilt angle of approx. 38° to the barcode.
Depending on the size and specification of the barcode the distance between reader and
barcode must be individually adjusted. When aligning the reader observe the following
illustrations.
• Press the release button (6) to read the barcode. When reading has been completed
successfully, an audio signal sounds and the LED indicator (5) temporarily shines green.
The barcode will be automatically read. If the barcode cannot be read, the LED indicator
temporarily shines red.
• The barcode scanner switches to Automatic Read Mode (auto-sensing) when inserted into
the holder (8). The reader unit activates automatically and scans a barcode when one is
recognized. It is not necessary to push the trigger. The barcode scanner switches to Trigger
Mode when removed from the holder (activate reader unit by pushing the trigger).
Tips & notes
• Ensure the barcode to be read is clean.
• The barcode to be read has to be fully visible.
• Keep the tilt angle and distance.
• Hold the reader horizontally to the barcode.
• Check the reader settings each time when turning it on to avoid incorrect results.
3
4
5
6
7
8
