Connections

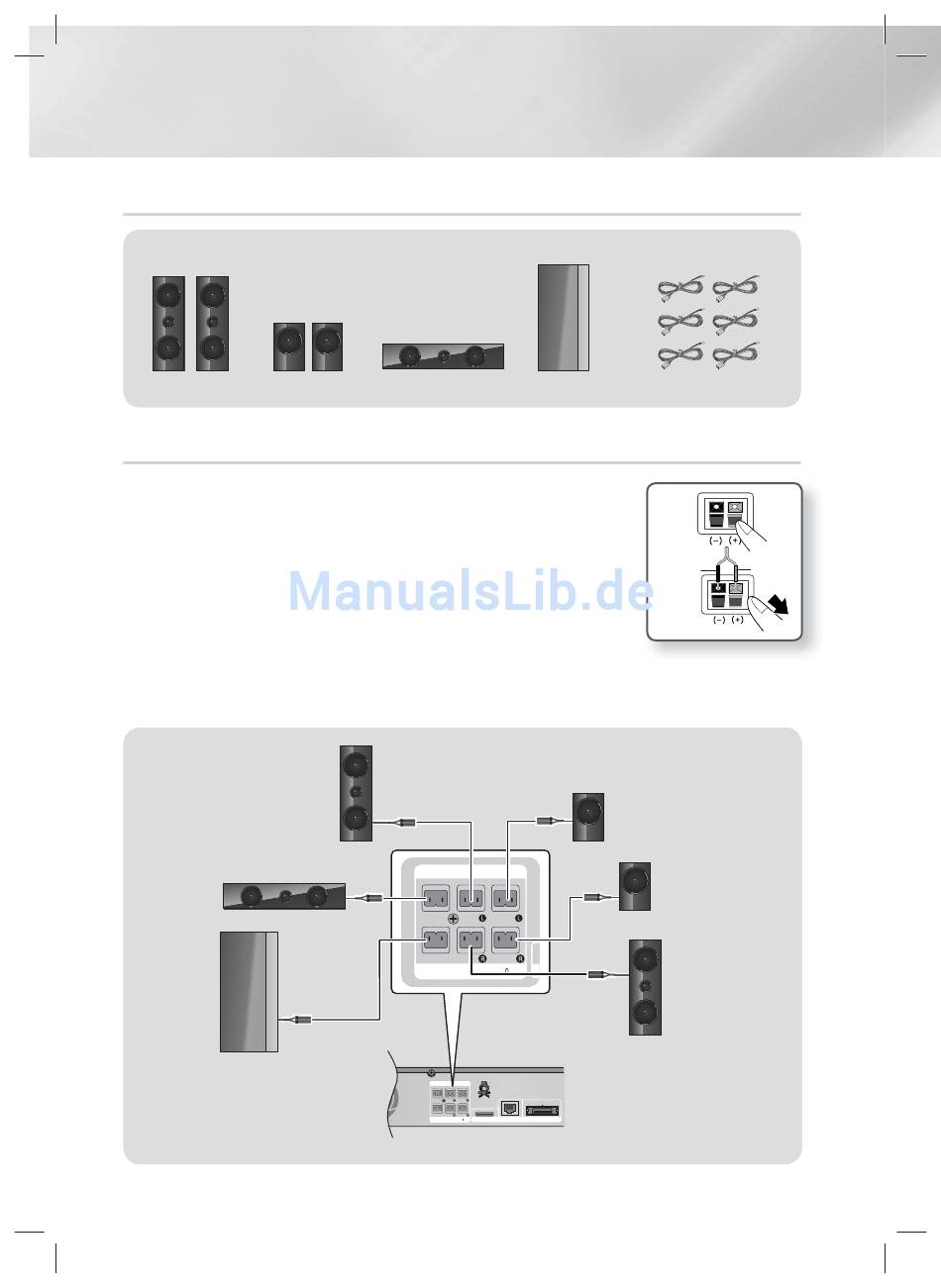

Speaker Components

(L) (R)
FRONT

Connecting The Speakers

1. Match each speaker cable bundle to the correct speaker by matching the
colour coded plug on each bundle to the coloured sticker on the bottom
of each speaker.
2. To attach speaker wire to each speaker:
a. Press down the red tab on the back of the speaker, insert the red wire,
and then release the tab.
b. Press down the black tab on the back of the speaker, insert the black
wire, and then release the tab.
3. Connect the speaker wire plugs to the back of the product by matching
the colours of the speaker plugs to the colours of the speaker jacks.
Front Speaker (L)
Centre Speaker
Subwoofer
16
|
English
HT-E6500_XU_0222.indd 16 HT-E6500_XU_0222.indd 16
(L) (R)
SURROUND CENTRE
SPEAKERS OUT
CENTER
SUBWOOFER
SPEAKER IMPEDANCE : 3
SPEAKERS OUT
CENTER FRONT
SUBWOOFER FRONT
SPEAKER IMPEDANCE : 3
SUBWOOFER
Surround Speaker (L)
FRONT SURROUND
FRONT SURROUND
Front Speaker (R)
SURROUND
SURROUND
iPod LAN WIRELESS
SPEAKER CABLE
Black
Red
Surround Speaker (R)
