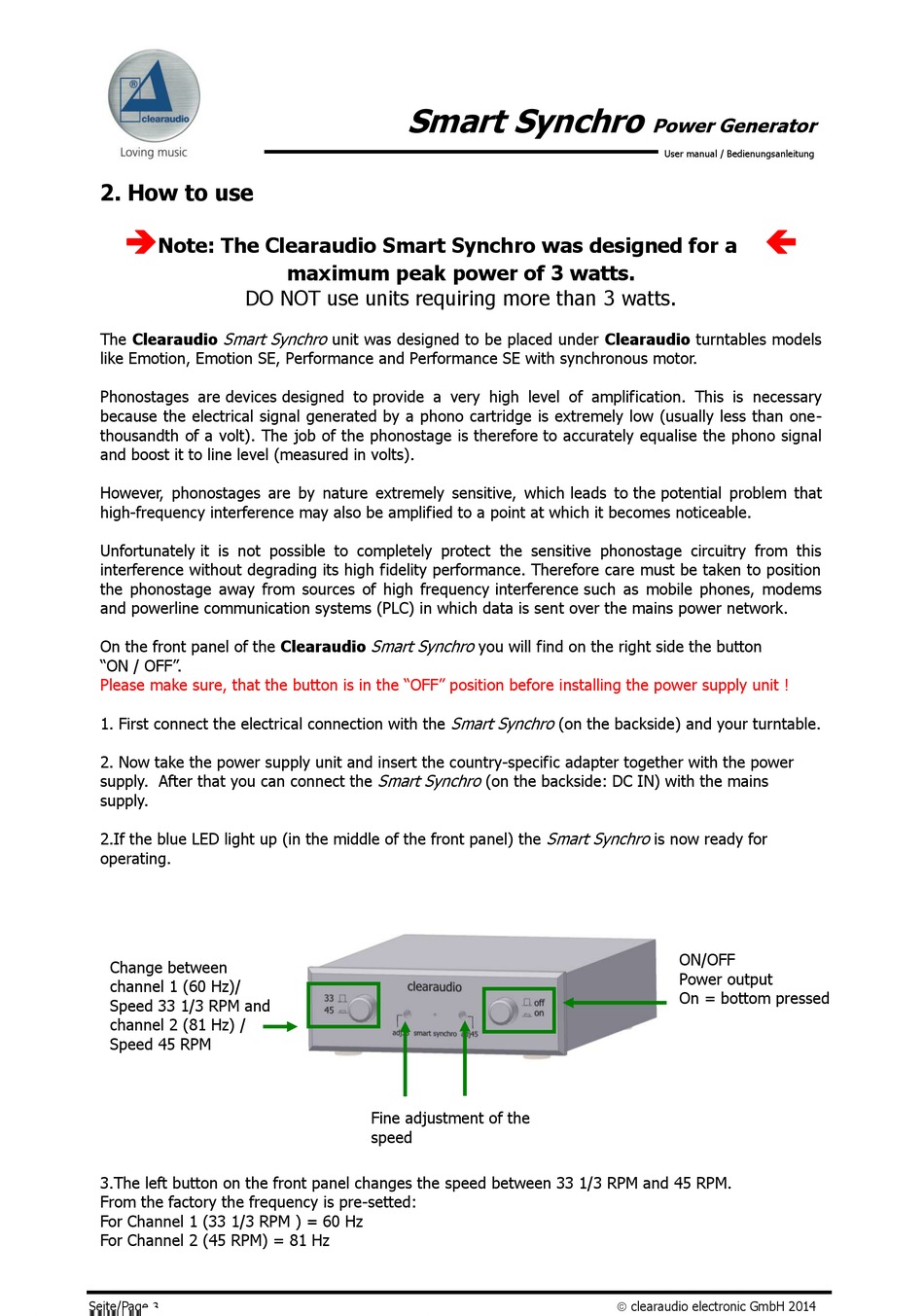

2. How to use


Note: The Clearaudio Smart Synchro was designed for a
DO NOT use units requiring more than 3 watts.
Smart Synchro
The Clearaudio
like Emotion, Emotion SE, Performance and Performance SE with synchronous motor.
Phonostages are devices designed to provide a very high level of amplification. This is necessary
because the electrical signal generated by a phono cartridge is extremely low (usually less than one-
thousandth of a volt). The job of the phonostage is therefore to accurately equalise the phono signal
and boost it to line level (measured in volts).
However, phonostages are by nature extremely sensitive, which leads to the potential problem that
high-frequency interference may also be amplified to a point at which it becomes noticeable.
Unfortunately it is not possible to completely protect the sensitive phonostage circuitry from this
interference without degrading its high fidelity performance. Therefore care must be taken to position
the phonostage away from sources of high frequency interference such as mobile phones, modems
and powerline communication systems (PLC) in which data is sent over the mains power network.
On the front panel of the Clearaudio
"ON / OFF".
Please make sure, that the button is in the "OFF" position before installing the power supply unit !
1. First connect the electrical connection with the
2. Now take the power supply unit and insert the country-specific adapter together with the power
supply. After that you can connect the
supply.
2.If the blue LED light up (in the middle of the front panel) the
operating.
Change between
channel 1 (60 Hz)/
Speed 33 1/3 RPM and
channel 2 (81 Hz) /
Speed 45 RPM
3.The left button on the front panel changes the speed between 33 1/3 RPM and 45 RPM.
From the factory the frequency is pre-setted:
For Channel 1 (33 1/3 RPM ) = 60 Hz
For Channel 2 (45 RPM) = 81 Hz
Seite/Page 3
Smart Synchro
maximum peak power of 3 watts.
unit was designed to be placed under Clearaudio turntables models
Smart Synchro
Smart Synchro
Smart Synchro
Fine adjustment of the
speed
Power Generator
you will find on the right side the button
(on the backside) and your turntable.
(on the backside: DC IN) with the mains
Smart Synchro
 clearaudio electronic GmbH 2014
User manual / Bedienungsanleitung

is now ready for
ON/OFF
Power output
On = bottom pressed
