Operation - Speaka Professional 1574602 Bedienungsanleitung

1 Power indicator
2 Select button
3 IR receiver
4 Output indicator
5 Input4 indicator
6 Input3 indicator
7 Input2 indicator

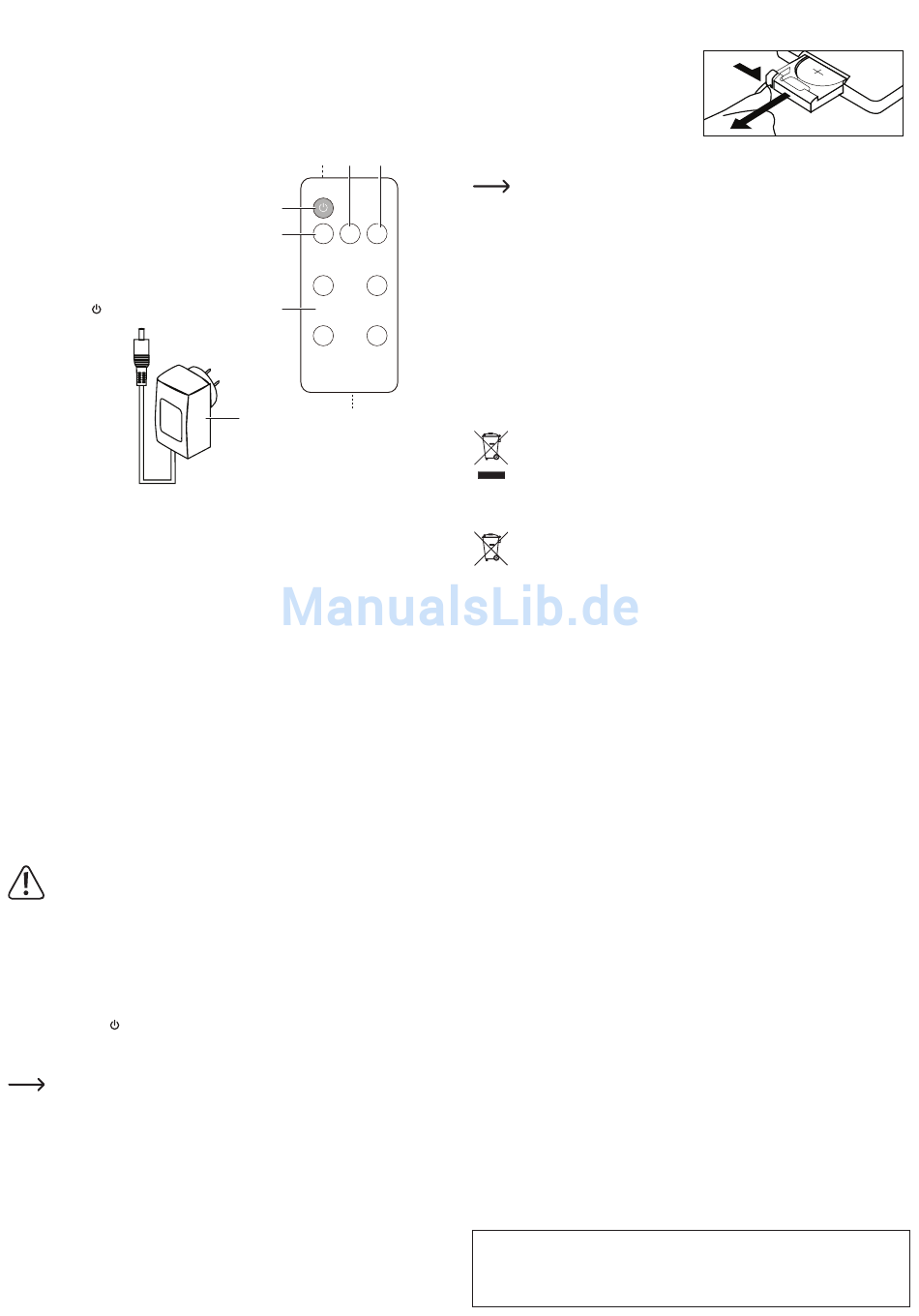

Remote control
15 Remote control transmitter (not shown)
16 SEL (select) button
17 Enter button
18 Battery compartment (not shown)
19 1 - 4 buttons
20 PIP button
21 On/off button
22 Power adapter

Operation

a) Installation and connection
• Switch off all the external devices to be connected before the cables are connected.
• Using the HDMI cable (not provided), connect the HDMI output of the playback devices
(e.g. DVD player, media box) to the HDMI Input sockets (9, 10, 11, 12).
• Using another HDMI cable, connect the output device (e.g. TV or projector) to the
HDMI Output socket (13).
• Connect the plug of the power adapter (22) to a suitable wall socket.
• Connect the plug of the power adapter to the low voltage socket DC 5V (14). The
Power indicator (1) lights up green and device switches on automatically.
• After having connected all cables, switch on all the connected devices. The output indicator (4)
and all connected input indicators light up blue.
b) Using remote control
• This remote control comes with a pre-installed battery. To activate the remote control, remove
the plastic tag.
• Point the transmitter (15) on the remote control in the IR receiver (3) direction.
• The battery can last for up to one year. It depends on different factors, such as battery quality,
ambient conditions, and frequency of use.
• When the remote control signal starts to get weaker, e.g. when signals are transmitted
irregularly or not at all, the battery must be replaced. See chapter "Care and cleaning".
The remote control features a range of max. 8 m. Any objects located between the
remote control and the product might reduce the range.
c) Use
Functions for operating this device are mainly carried out via the remote control. Not all the
functions can be executed by the device itself.
• Switch on the desired HDMI playback device and the output device (e.g. TV).
• Select the desired HDMI input using the Select button (2) on the device or the
keypad 1-4 (19) on the remote control.
• Press on/off button (21) to switch off the device after use. Unplug the power adapter from
the wall socket when not using the device for a longer period of time.
d) Using the PIP function
The Picture-in-Picture (PIP) is a function that allows to display one main source input
on the full TV screen and at the same time one or more inputs are displayed in inset
windows. This feature can be used to watch one program while waiting for another
to start, or advertisement to finish. This feature only works with an HDMI input
resolution of up to 1080p. 4K input is not supported for PIP function.
• Press the PIP button (20) to active the Picture-in-Picture function. All connected inputs are
displayed in the left side of the screen as inset windows.
• Press the SEL button (16) to toggle between available inset windows.
• Press the Enter button (17) to confirm the selection. The selected input is shown on the full
screen.
• To deactivate the PIP function, press the PIP button.
8 Input1 indicator
9 HDMI Input1 socket
10 HDMI Input2 socket
11 HDMI Input3 socket
12 HDMI Input4 socket
13 HDMI Output socket
14 Low voltage socket DC 5V
15 16 17
21
20
PIP SEL Enter
1 2
19
3
4
4 to 1 PIP Switcher
18
22
Care and cleaning
a) Inserting/changing the battery
• Remove the battery holder from the battery
compartment (18) as shown.
• Insert a new battery (type CR2025).
• Make sure the polarity is correct. It is shown
on the back of the remote control.
• Slide the battery holder back into the battery
compartment until it clicks into place.
Replace the battery as soon as the UHD switch no longer responds to commands
from the remote control.
b) Cleaning
• Apart from the occasional battery change for the IR remote control, the product is
maintenance-free.
• Disconnect the product from the power supply before cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
• Clean the outside of the product with a soft, dry, fiber-free cloth.
• Do not immerse the product in water.
Disposal
a) Product
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product in accordance
with applicable regulatory guidelines.
Remove any inserted batteries and dispose of them separately from the product.
b) Batteries
You as the end user are required by law (Battery Ordinance) to return all used
batteries. Disposing of them in the household waste is prohibited.
Contaminated batteries are labelled with this symbol to indicate that disposal in the
domestic waste is forbidden. The designations for the heavy metals involved are: Cd
= Cadmium, Hg = Mercury, Pb = Lead (name on batteries, e.g. below the trash icon
on the left).
Used batteries can be returned to collection points in your municipality, our stores or wherever
batteries are sold.
You thus fulfil your statutory obligations and contribute to the protection of the environment.
Technical data
a) UHD switch
Input voltage/current ..................... 5 V/DC, 1 A
Input.............................................. 4x HDMI
Output ........................................... 1x HDMI
Supported frequency range .......... 25 MHz - 340 MHz TMDS clock
Supported resolution .................... 12-bit Deep Full HD, Full 3D and 4K2K video
Supported audio ........................... Standard Audio, DSD Audio and HD (HBR) Audio
PIP signal support ........................ ≤1080p
Operating conditions ..................... 0 to +40 ºC, 10 % – 85 % RH
Storage conditions ........................ -10 to +70 ºC, 5 % – 90 % RH
Dimensions (W x H x D) ............... 117 x 21 x 64.5 mm
Weight .......................................... 120 g
b) Power adapter
Operating voltage/current ............. 100 - 240 V/AC, 50/60 Hz, 0.4 A
Output voltage/current .................. 5 V/DC, 1 A
c) Remote control
Power supply ................................ 1 x 3 V button cell CR2025
Operational range ......................... max. 8 meters (unobstructed)
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
This publication represents the technical status at the time of printing.
Copyright 2017 by Conrad Electronic SE. *1574602_V1_0817_02_mxs_m_en
