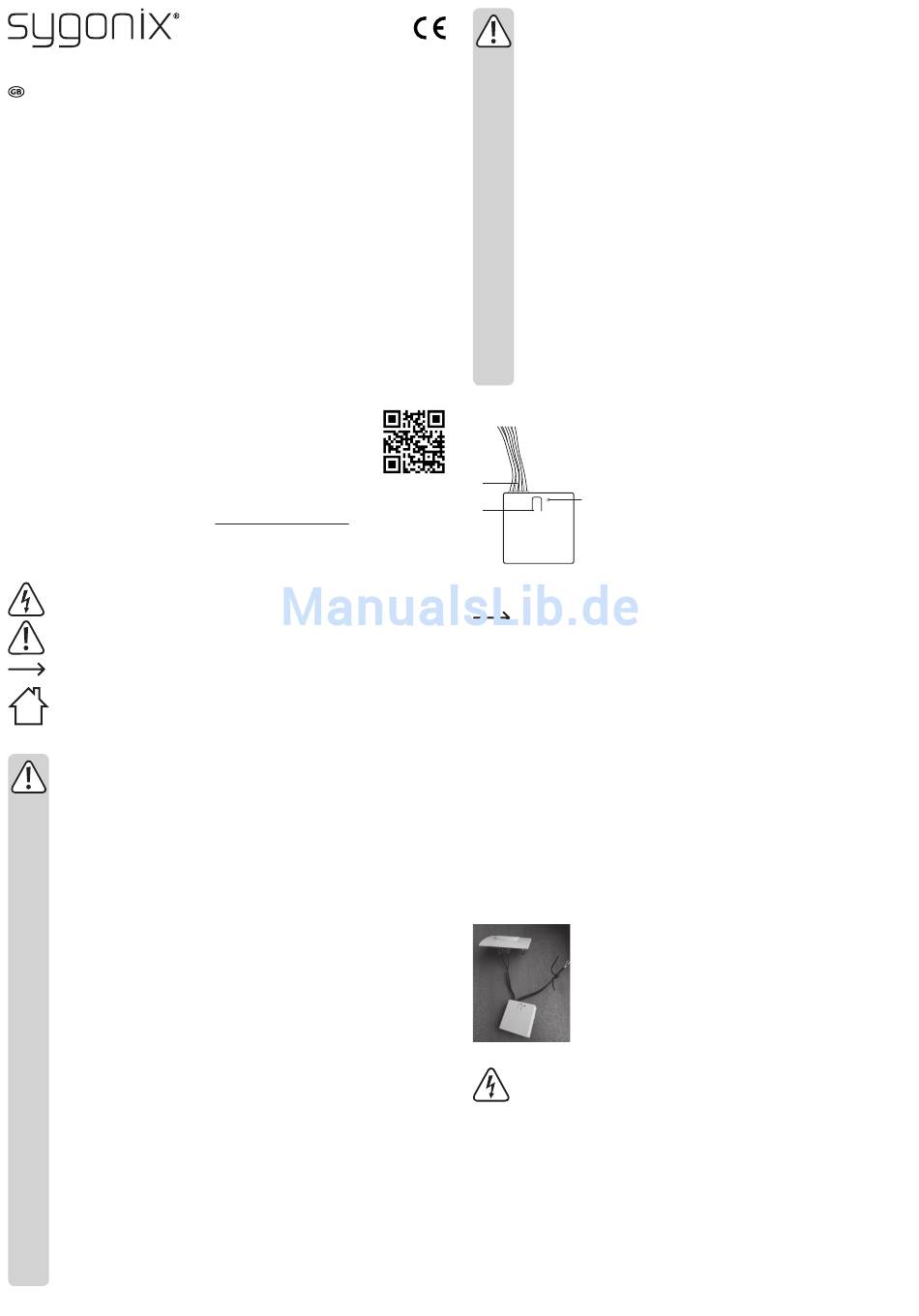

Operating instructions
RSL 2-channel wireless transmitter
Item no. 1553977
Intended use
This product is designed to control up to two compatible receivers (e.g radio-controlled mains
sockets, mains switches or wall switches). It connects to a standard switch and sends signals
to a preprogrammed RSL receiver. You can add a wide range of receivers (the receiver saves
the settings from the transmitter). The transmitter is powered by a 3 V CR2477 lithium battery.
This product is intended for indoor use only. Do not use it outdoors. Contact with moisture
(e.g. in bathrooms) must be avoided.
For safety and approval purposes, you must not rebuild and/or modify this product. Using the
product for purposes other than those described above may damage the product. In addition,
improper use can cause hazards such as a short circuit or fire. Read the instructions carefully
and store them in a safe place. Make this product available to third parties only together with
its operating instructions.
This product complies with statutory national and European regulations. All company names
and product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Wireless transmitter
• Operating Instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR code
on this page. Follow the instructions on the website.
Explanation of symbols
The symbol with the lightning in the triangle indicates that there is a risk to your
health, e.g. due to an electric shock.
This symbol is used to highlight important information in these operating instructions.
Always read this information carefully.
This symbol indicates special information and advice on how to use the product.
This product must only be used in dry, enclosed indoor areas. It must not become
damp or wet, as this may result in a fatal electric shock!
Safety information
Read the operating instructions and safety information carefully. If you do
not follow the safety instructions and information on proper handling in this
manual, we will assume no liability for any resulting personal injury or damage
to property. Such cases will invalidate the warranty/guarantee.
a) General information
• The product is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly, as it may become
dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, stop using it and prevent
unauthorized use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stress.
• Always handle the product carefully. Jolts, impacts or a fall even from a low height
may damage the product.
• Always observe the safety and operating instructions of any other devices which
are connected to the product.
• Consult a technician if you are not sure how to use or connect the product.
• Maintenance, modifications and repairs must be done by a technician or an
authorized repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
• Do not cover the transmitter (e.g. with a curtain), as this may cause it to overheat.
• Do not use the transmitter with a timer, a separate remote control or other devices
that turn the product on automatically. Covering or incorrectly mounting the
product constitutes a fire hazard.
b) Electrical safety
• Never pour any liquids over electrical devices or place objects filled with liquid next
to the product. If liquid or an object does enter the interior of the device, power
down the respective socket (e.g. switch off the circuit breaker), and then remove
the mains plug from the mains socket. Discontinue use and take the product to a
specialist repair centre.
• Never use the product immediately after it has been brought from a cold room
into a warm one. The condensation generated may destroy the product. Allow the
product to reach room temperature before connecting it and putting it to use. This
may take several hours.
• Do not use the product next to a bathtub, shower or swimming pool.
• Do not place the product directly underneath a wall-mounted mains socket.
c) Battery
• Ensure that the battery is inserted in the correct polarity.
• To prevent battery leakage, remove the battery if you do not plan to use the
product for an extended period. Leaking or damaged batteries may cause acid
burns when they come into contact with skin. Always use protective gloves when
handling damaged batteries.
• The battery must be kept out of the reach of children. Do not leave the battery lying
around, as there is a risk that children or pets may swallow it.
• Batteries must not be dismantled, short-circuited or thrown into fire. Never
recharge non-rechargeable batteries, as this may cause an explosion.
Operating elements
1 Function button
2 Connecting wires
3 LED indicator (2 colours/2 channels)
2
3
1
Transmission range
The radio transmitter has a range of up to 70 m in open spaces with no obstructions.
In practice, however, there may be walls, ceilings or other objects between the
transmitter and the receiver, which will reduce the range accordingly. Different
objects have a different impact on the range, therefore no specific range can be
guaranteed. However, the range should be sufficient for use in a detached house.
The range can be considerably reduced by:
- Walls and reinforced concrete ceilings
- Coated / double-glazed windows
- Proximity to metal and conducting objects (e.g. radiators)
- Proximity to people
- Broadband interference (e.g. cordless telephones, mobile phones, wireless headphones
and speakers, radio-controlled weather stations and baby monitors)
- Proximity to electric motors, transformers, power-supply units and computers
- Proximity to poorly shielded or uncovered computers or other electrical appliances
Connection and installation
• Choose a clean, dry location in which to install the transmitter.
• Connect the transmitter to the switch contacts on a standard wall
switch (see diagram). The wall switch turns on when the circuit is
connected.
• The other pair of cables can be connected to another switch in the
same way. The second channel can then be used to control an
additional wireless switch (e.g. an RSL wireless switch, Conrad item
no. 640303).
Remove all other connected wires if you are connecting the product to an existing
wall switch.
• Take appropriate measures to secure the transmitter in place (e.g. using adhesive tape or
a flush-mounted box).
