Read the operating instructions and the enclosed brochure „Guarantee and additional notices"
completely. Follow the instructions they contain. Safely keep these documents for future reference.
Function / Application

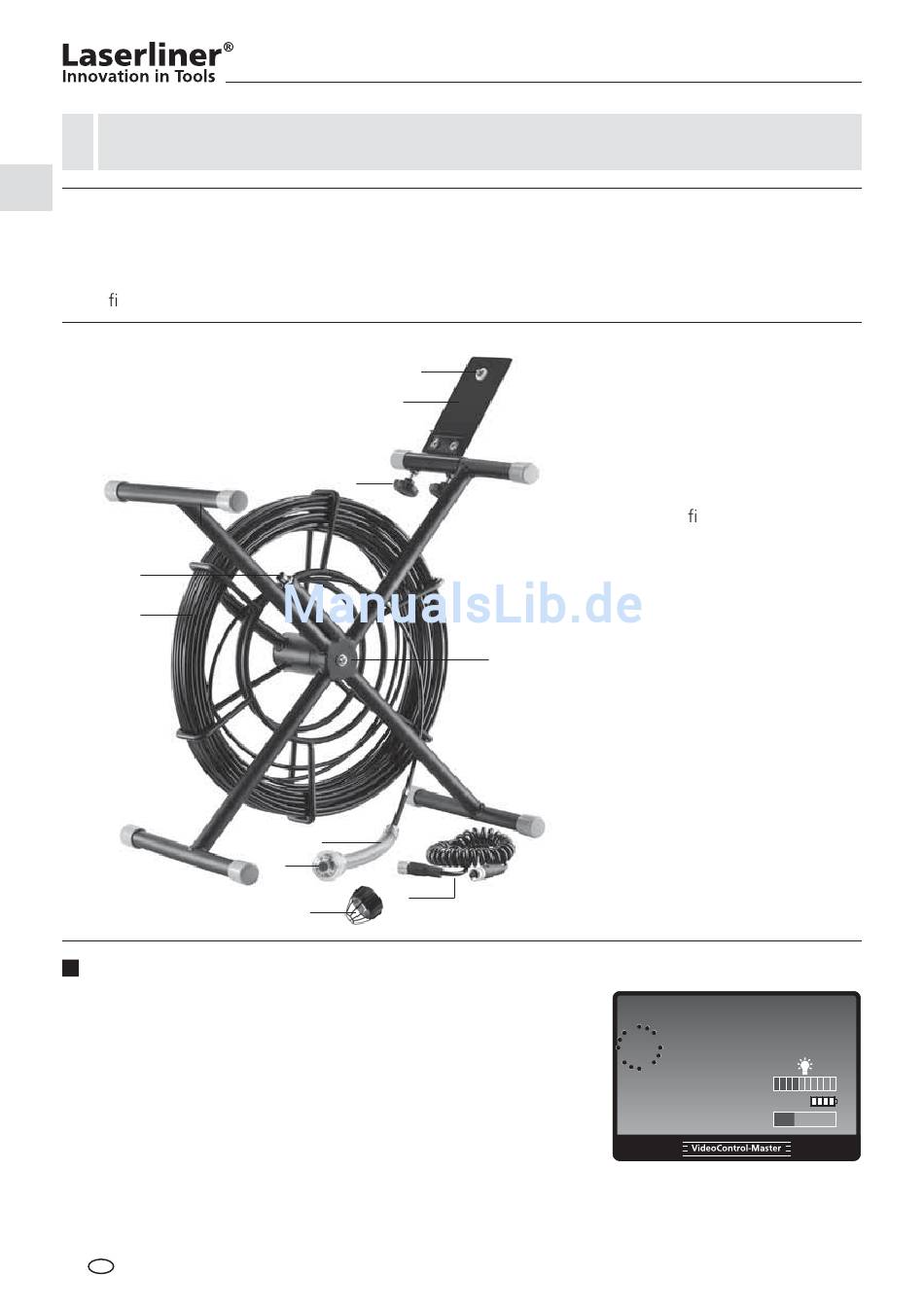

The PipeControlStation-Camera is a camera unit which can be connected to the VideoControl-Master
base unit. The stand-up reel with a cable length of 30 m allows for inspections over great distances.
Working with the base unit, colour video images are sent to the LCD for inspecting all places that
are dif cult to access such as cavities, air shafts, in masonry or in heating and ventilation.
4
5
Length measure
1
The PipeControlStation-Camera features an integrated metre
counter. The reeled off number of metres appears on the display
of the VideoControl-Master (see image). Settings can be changed
by means of the base unit. For more information, see:
VideoControl-Master, Section 8.6 Length measure.
06 GB
1
2
3
6
7
8
9
1 Fastening screw for
VideoControl-Master
2 Holder for
VideoControl-Master
3 Locking screws
4 Connection for control cable
5 Glass- bre reinforced
push rod, 30 m
6 Flexible coil spring
7 Camera head with 12 high-
power LEDs and SavetyLense
8 Control cable
10
9 CameraProtector 28 mm
10 Integrated metre counter
0 cm
CAMERA
2012/01/05 12:50:28
X 1.0
