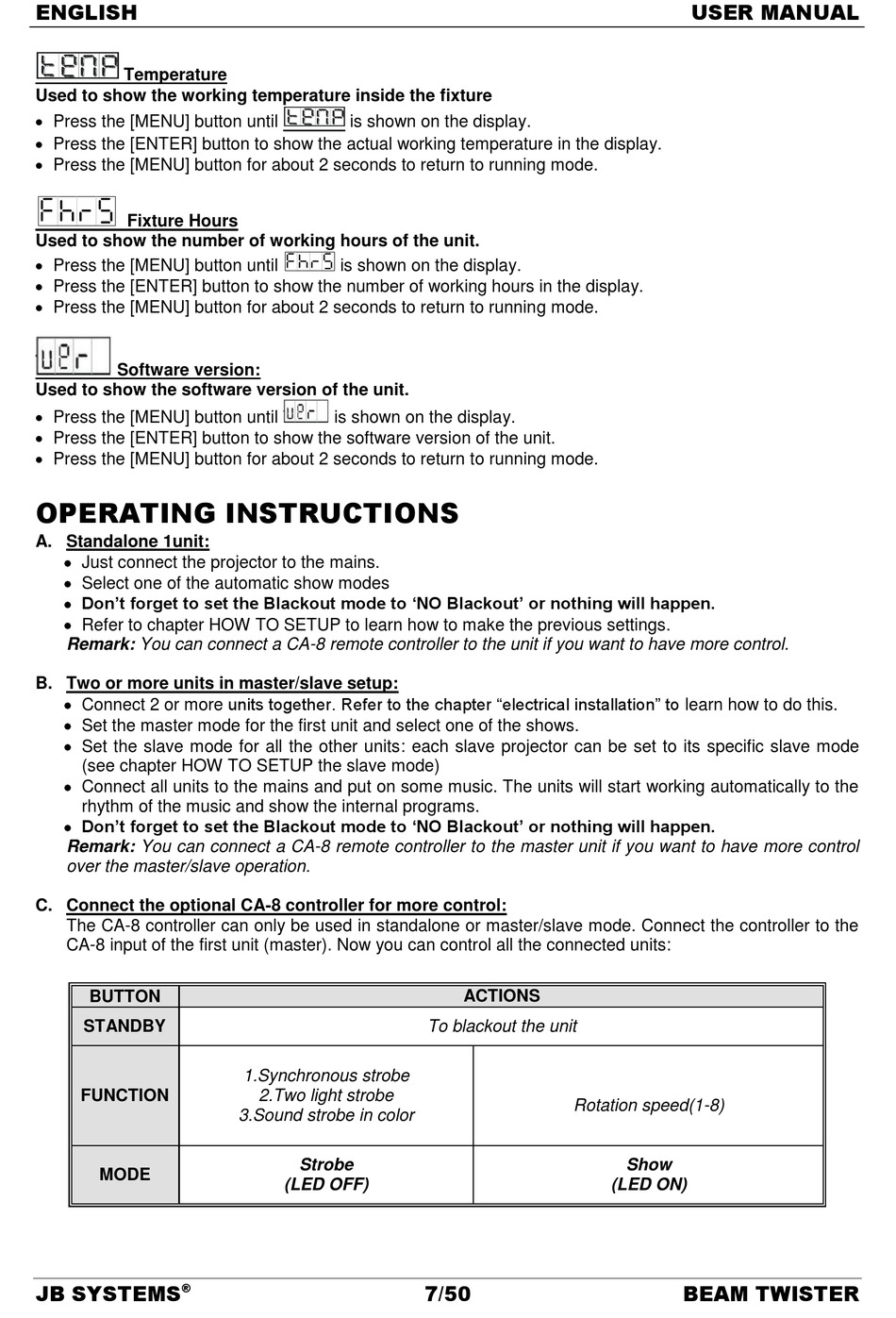

JB Systems Beam Twister Bedienungsanleitung Seite 9

ENGLISH
Temperature
Used to show the working temperature inside the fixture
 Press the [MENU] button until
 Press the [ENTER] button to show the actual working temperature in the display.
 Press the [MENU] button for about 2 seconds to return to running mode.
Fixture Hours
Used to show the number of working hours of the unit.
 Press the [MENU] button until
 Press the [ENTER] button to show the number of working hours in the display.
 Press the [MENU] button for about 2 seconds to return to running mode.
Software version:
Used to show the software version of the unit.
 Press the [MENU] button until
 Press the [ENTER] button to show the software version of the unit.
 Press the [MENU] button for about 2 seconds to return to running mode.
OPERATING INSTRUCTIONS
A. Standalone 1unit:
 Just connect the projector to the mains.
 Select one of the automatic show modes
 Don't forget to set the Blackout mode to 'NO Blackout' or nothing will happen.
 Refer to chapter HOW TO SETUP to learn how to make the previous settings.
Remark: You can connect a CA-8 remote controller to the unit if you want to have more control.
B. Two or more units in master/slave setup:
 Connect 2 or more units together. Refer to the chapter "electrical installation" to learn how to do this.
 Set the master mode for the first unit and select one of the shows.
 Set the slave mode for all the other units: each slave projector can be set to its specific slave mode
(see chapter HOW TO SETUP the slave mode)
 Connect all units to the mains and put on some music. The units will start working automatically to the
rhythm of the music and show the internal programs.
 Don't forget to set the Blackout mode to 'NO Blackout' or nothing will happen.
Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control
over the master/slave operation.
C. Connect the optional CA-8 controller for more control:
The CA-8 controller can only be used in standalone or master/slave mode. Connect the controller to the
CA-8 input of the first unit (master). Now you can control all the connected units:
BUTTON
STANDBY
FUNCTION
MODE
JB SYSTEMS
®
is shown on the display.
is shown on the display.
is shown on the display.
1.Synchronous strobe
2.Two light strobe
3.Sound strobe in color
Strobe
(LED OFF)
ACTIONS
To blackout the unit
Rotation speed(1-8)
7/50
USER MANUAL
Show
(LED ON)
BEAM TWISTER
