ENGLISH

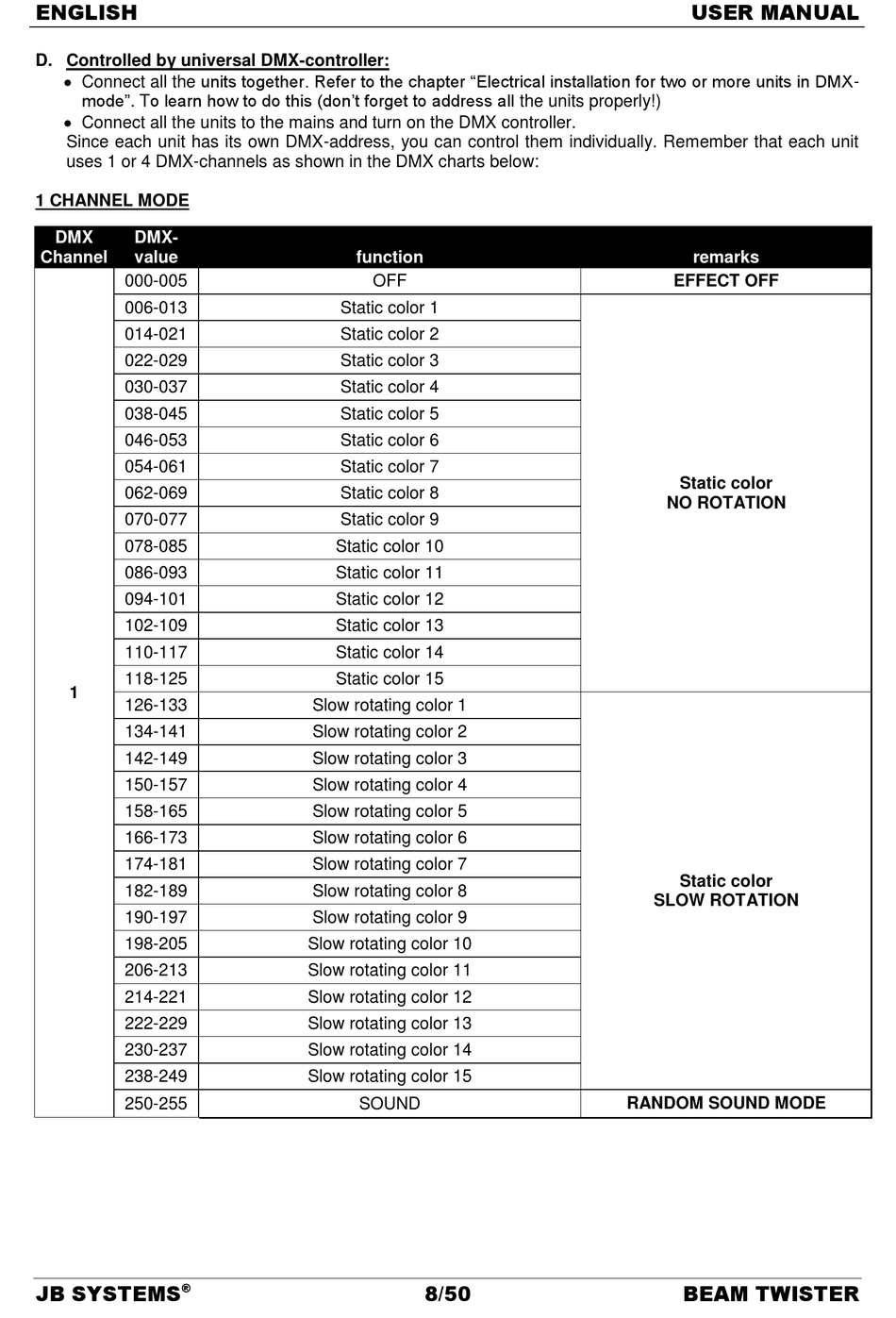

D. Controlled by universal DMX-controller:
 Connect all the units together. Refer to the chapter "Electrical installation for two or more units in DMX-
mode". To learn how to do this (don't forget to address all the units properly!)
 Connect all the units to the mains and turn on the DMX controller.
Since each unit has its own DMX-address, you can control them individually. Remember that each unit
uses 1 or 4 DMX-channels as shown in the DMX charts below:
1 CHANNEL MODE
DMX DMX-
Channel value
000-005
006-013
014-021
022-029
030-037
038-045
046-053
054-061
062-069
070-077
078-085
086-093
094-101
102-109
110-117
118-125
1
126-133
134-141
142-149
150-157
158-165
166-173
174-181
182-189
190-197
198-205
206-213
214-221
222-229
230-237
238-249
250-255
JB SYSTEMS
®
function
OFF
Static color 1
Static color 2
Static color 3
Static color 4
Static color 5
Static color 6
Static color 7
Static color 8
Static color 9
Static color 10
Static color 11
Static color 12
Static color 13
Static color 14
Static color 15
Slow rotating color 1
Slow rotating color 2
Slow rotating color 3
Slow rotating color 4
Slow rotating color 5
Slow rotating color 6
Slow rotating color 7
Slow rotating color 8
Slow rotating color 9
Slow rotating color 10
Slow rotating color 11
Slow rotating color 12
Slow rotating color 13
Slow rotating color 14
Slow rotating color 15
SOUND
8/50
USER MANUAL
remarks
EFFECT OFF
Static color
NO ROTATION
Static color
SLOW ROTATION
RANDOM SOUND MODE
BEAM TWISTER
