Scope of delivery
fixDock (1x) - fixDock backbox (1x) - cardboard frame (1x) - aluminium frame (1x) - mounting screw (4x) -
mountning ring long (2x) mountning ring short (2x) installation instructions (1x) - sucker (1x)
Important information
All connection and installation work must be conducted by certified electricians in compliance with the general rules and
directives for electrical installations.
The fixDock has a smooth and shiny surface which is prone to scratches. Handle with care to avoid damage. Do not clean
with liquids or fluids. We recommend wearing soft cotton wool gloves during installation.
• Select a suitable place to mount the device
• Do not mount or use the fixDock in wet or moist environments
• The place chosen to mount the device must provide enough recess depth to allow use of the backbox and the entry
of the leads.
• Mount the device in a place that enables reception of a suitably strong Wi-Fi signal so that the tablet can also be used
when it is docked.

Mounting

For instructions of installing the back box, please refer to page 2.
1. Prepare a connector in the back box to accommodate the original tablet power adapter
2. Connect the original tablet power adapter
3. Connect the power adapter to the power supply
4. Fix the tablet with the enclosed moutnig rings.

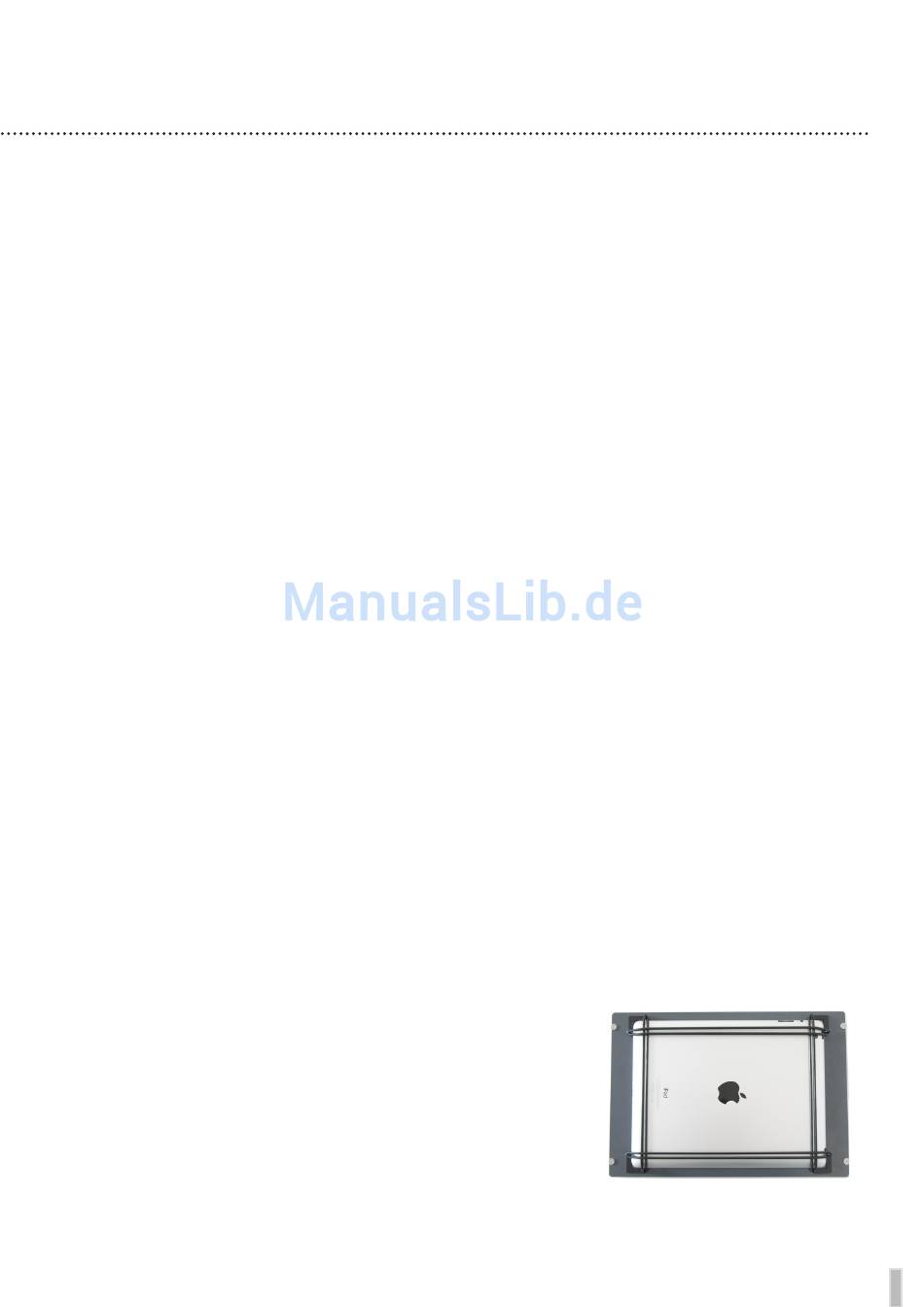

5. Push the fixDock into the aluminium frame. Make sure you do not damage the power leads.
Ensure a proper locking of the magnetic mounting system.
6. Switch on main power supply.
7. To remove the dock from the aluminium frame use the enclosed sucker!
