General information

The f ixDock can be installed both verti-
cally and horizontally.
During installation of the backbox (flush-
mounted housing) the installer must exe-
cute an installation without deformation.
Swelling mounting mediums should be
avoided to minimize the risk of deformati-
on. During installation the protective card
has to be placed into the backbox.

Description of function

The fixDock may only be used with the
flush-mounted backbox. Operation wit-
hout the backbox will void the warranty.
Missuse of the backbox is prohibited.
Mounting in Masonry

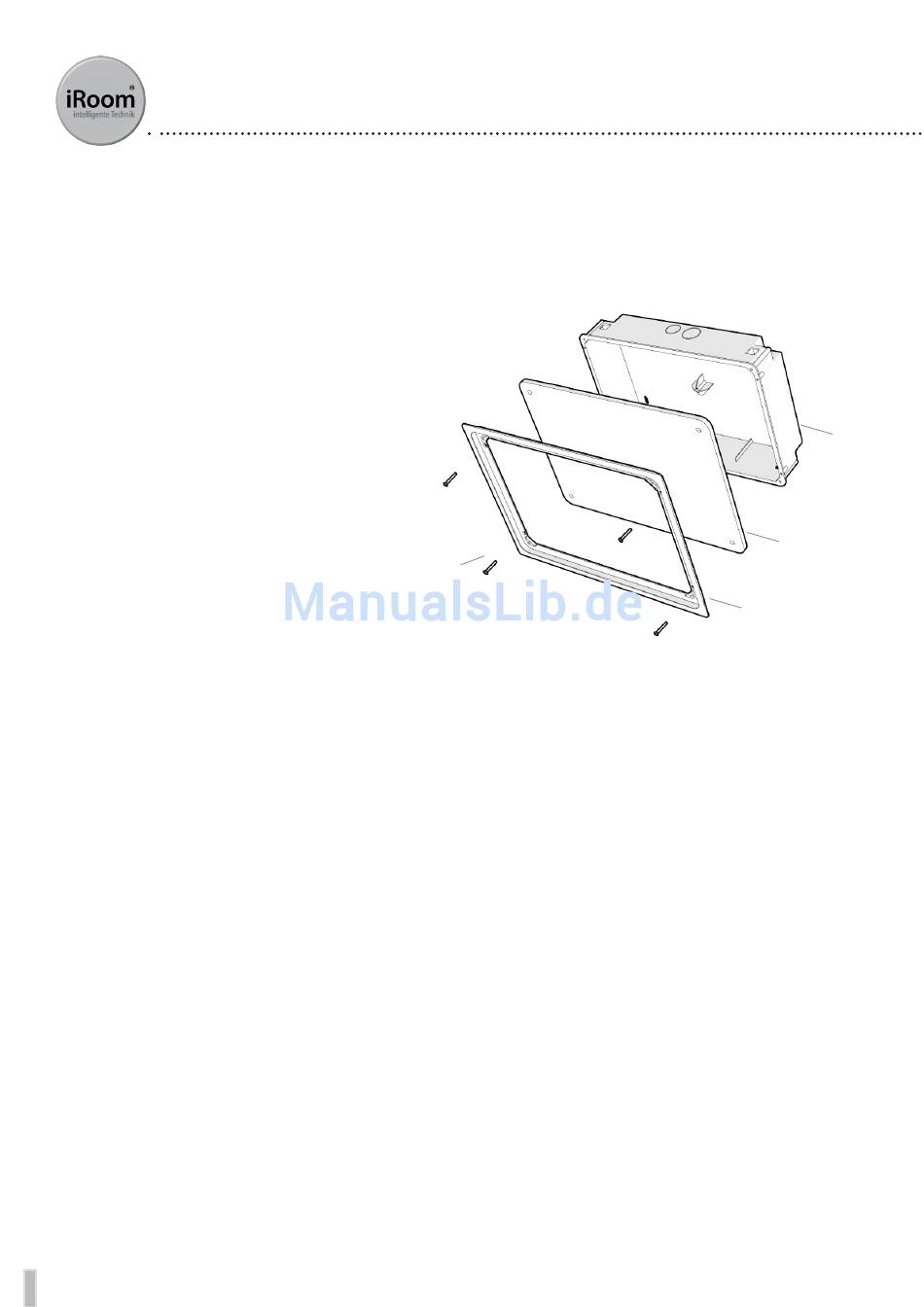

1. Attach the cardboard frame (4) to the backbox (3)
and bolt them together with the included mounting
screws (1) (3 x 20mm)
2. Prepare a recess in the wall
(W/H/D: 215,0 / 305,0 / 75,0 mm - 8.46" / 12.00" /
2.95")
3. Remove the break-out for the cable exits on the
backbox
4. Feed in the power leads through the hole in the back
box. Use a suitable cable grip sleeve.
5. Place the backbox in the recess. Do not deform the
backbox.
6. Plaster in the backbox and ensure a straight, flush
wall and distortion-free installation of the back box.
Otherwise it may cause mechanical problems.
7. After finishing plasterwork and wall finishing remo-
ve the cardboard frame and attach the aluminum
frame (2)!
2

Installation instructions

1
Recess dimensions backbox
(W/H/D): 215,0 / 305,0 / 75,0 mm ........ 8.46" / 12.00" / 2.95"
Mounting in Cavity walls
1. Attach the aluminum frame (2) to the backbox (3)
and bolt together the frame and the backbox with
the included mounting screws (1) (3 x 20mm)
2. Prepare a recess in the wall
(W/H/D: 215,0 / 305,0 / 75,0 mm - 8.46" / 12.00" /
2.95")
3. Remove the break-out for the cable exits on the
backbox
4. Feed in the power leads through the hole in the back
box . Use a suitable cable grip sleeve.
5. Place the backbox in the recess. Do not deform the
backbox.
6. Cut some small thread gaps in the safety strips that
cover the recess spaces for the mounting clips. Do
not remove the safety strips! Feed the mounting
clips into the recesses and screw them tight. Ensure
a straight, flush wall and distortion-free installation of
the flush box. Otherwise it may cause mechanical
problems.
fixDock backbox
3
4
2
