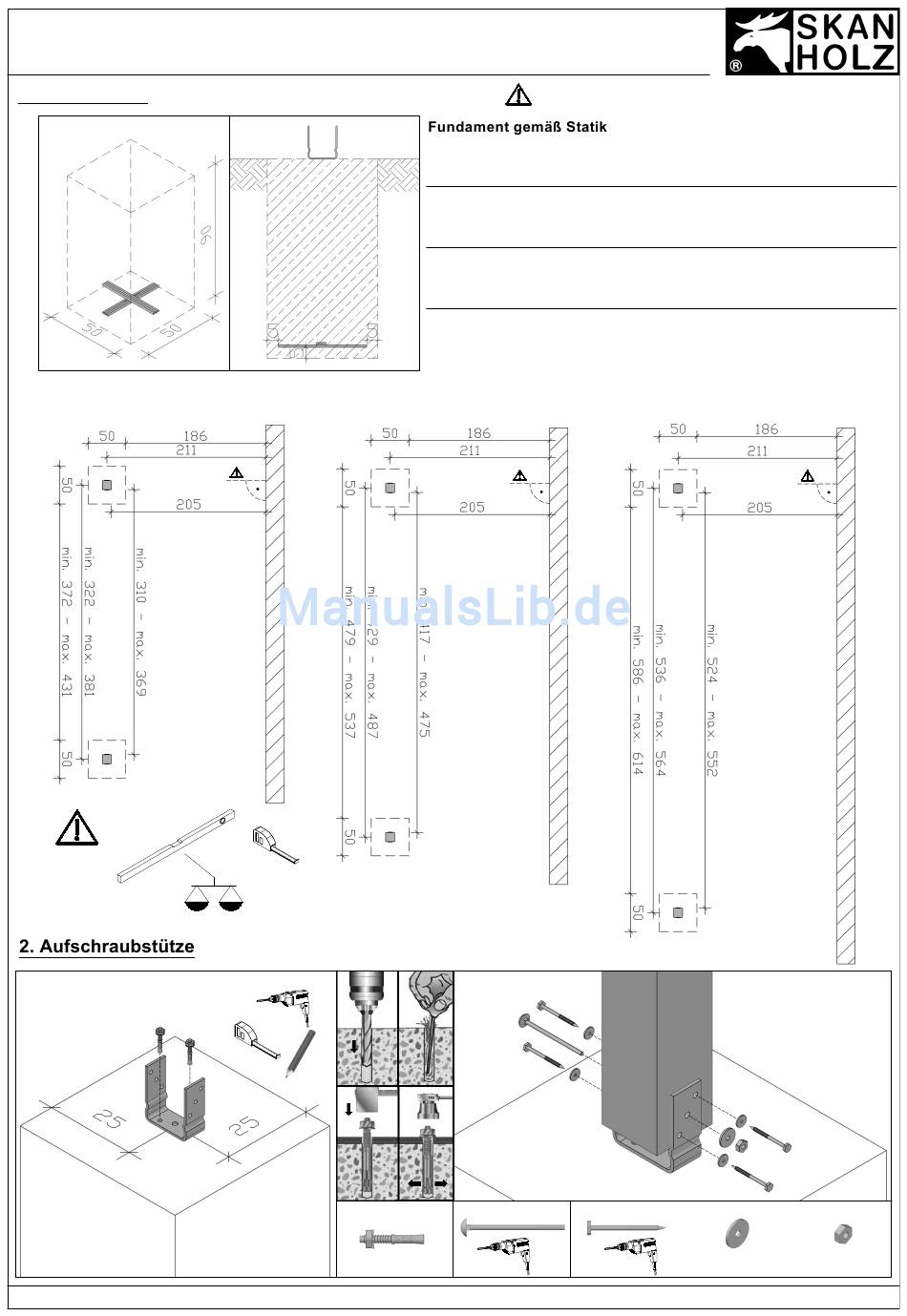

Aufbauanleitung Tiefe 250cm
Assembly instructions / Instructions de montage / Montagehandleiding
1. Fundamente / Foundations / Fondations / Stichtingen
201259
(434x250cm)
2
© SKAN HOLZ Europe GmbH, D-21227 Bendestorf. Stand 10/15
201334
2
C133-120 / Anchor / Ancrage / Paalankers
10mm
je 2x C111-3
1
- Beton C25/30 (X0,XC2)
- Betonstahl 500 (M), je 4 Stk. Ø 12 kreuzweise miteinander verbinden
- Betondeckung 5cm,
Foundations suitable for structure (not supplied):
- Concrete C25/30 (X0,XC2)
- reinforcing steel 500 (M), each 4 pieces Ø 12 crosswise under the Post
- Concrete cover 5cm
Fondations conformément à la statique (non inclus):
- Béton C25/30 (X0,XC2)
- acier béton 500 (M), each 4 pcs Ø 12 croix le support chacun
- Couverture béton 5cm
Stichtingen volgens statica (niet inbegrepen):
- Beton C25/30 (X0,XC2)
- versterking van de stalen500 (M), elk 4 Ø 12 stuks
- Betondekking 5cm
(541x250cm)
2
je 1x C110-014
9mm
(nicht im Lieferumfang):
201419
(648x250cm)
je 4x L208-070
je 5x A108-16
10mm
2
je 1x C110-M8
