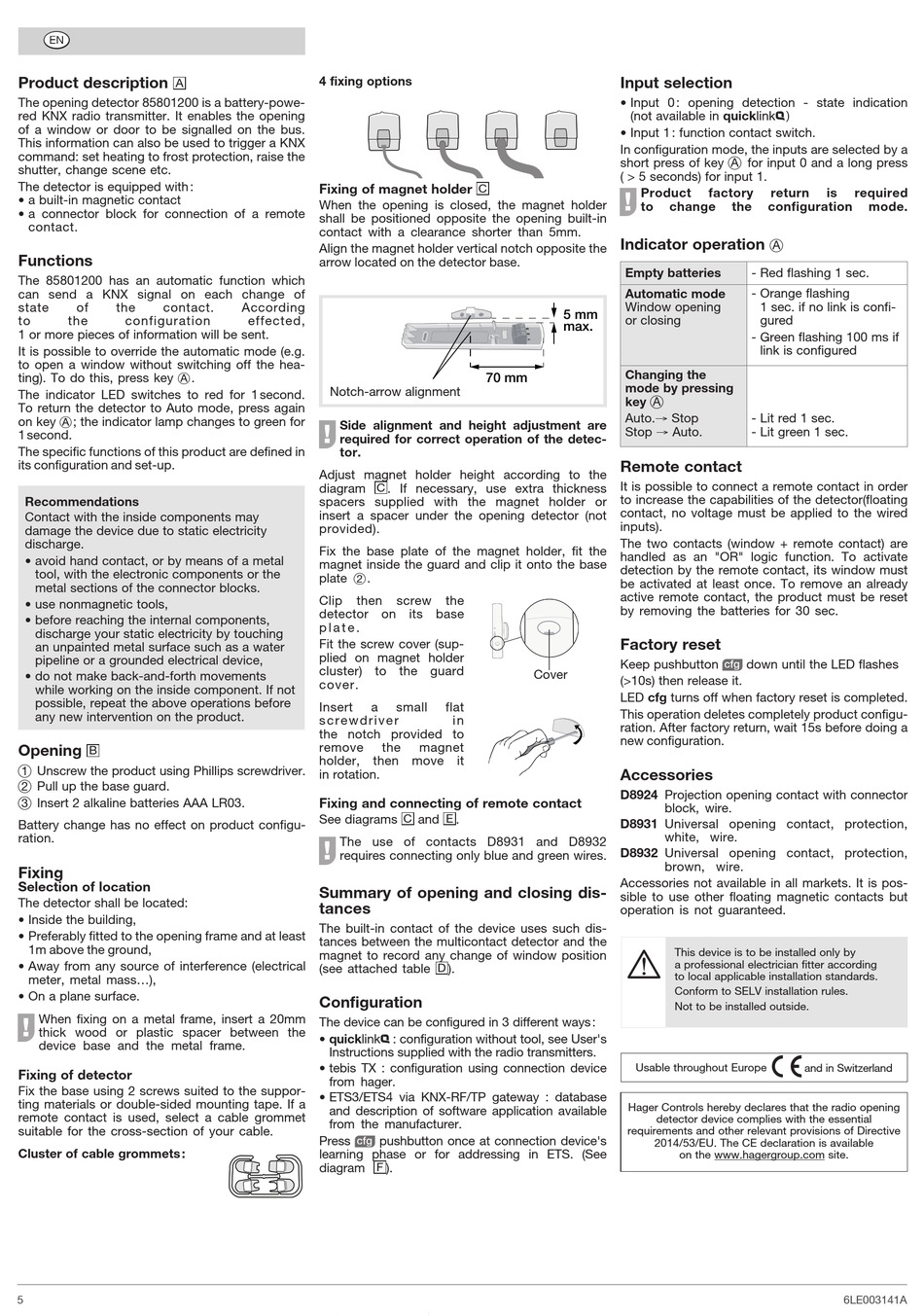

Product description
A
The opening detector 85801200 is a battery-powe-
red KNX radio transmitter. It enables the opening
of a window or door to be signalled on the bus.
This information can also be used to trigger a KNX
command: set heating to frost protection, raise the
shutter, change scene etc.
The detector is equipped with :
• a built-in magnetic contact
• a connector block for connection of a remote
contact.
Functions
The 85801200 has an automatic function which
can send a KNX signal on each change of
state
of
the
contact.
to
the
configuration
1 or more pieces of information will be sent.
It is possible to override the automatic mode (e.g.
to open a window without switching off the hea-
ting). To do this, press key A.
The indicator LED switches to red for 1 second.
To return the detector to Auto mode, press again
on key A; the indicator lamp changes to green for
1 second.
The specific functions of this product are defined in
its configuration and set-up.
Recommendations
Contact with the inside components may
damage the device due to static electricity
discharge.
• avoid hand contact, or by means of a metal
tool, with the electronic components or the
metal sections of the connector blocks.
• use nonmagnetic tools,
• before reaching the internal components,
discharge your static electricity by touching
an unpainted metal surface such as a water
pipeline or a grounded electrical device,
• do not make back-and-forth movements
while working on the inside component. If not
possible, repeat the above operations before
any new intervention on the product.
Opening
B
Unscrew the product using Phillips screwdriver.
1
Pull up the base guard.
2
Insert 2 alkaline batteries AAA LR03.
3
Battery change has no effect on product configu-
ration.
Fixing
Selection of location
The detector shall be located:
• Inside the building,
• Preferably fitted to the opening frame and at least
1m above the ground,
• Away from any source of interference (electrical
meter, metal mass...),
• On a plane surface.
G
When fixing on a metal frame, insert a 20mm
thick wood or plastic spacer between the
device base and the metal frame.
Fixing of detector
Fix the base using 2 screws suited to the suppor-
ting materials or double-sided mounting tape. If a
remote contact is used, select a cable grommet
suitable for the cross-section of your cable.
Cluster of cable grommets :
5
4 fixing options
Fixing of magnet holder
When the opening is closed, the magnet holder
shall be positioned opposite the opening built-in
contact with a clearance shorter than 5mm.
Align the magnet holder vertical notch opposite the
arrow located on the detector base.
According
effected,
Notch-arrow alignment
G
Side alignment and height adjustment are
required for correct operation of the detec-
tor.
Adjust magnet holder height according to the
C
diagram
. If necessary, use extra thickness
spacers supplied with the magnet holder or
insert a spacer under the opening detector (not
provided).
Fix the base plate of the magnet holder, fit the
magnet inside the guard and clip it onto the base
plate 2.
Clip
then
screw
detector on its base
p l a t e .
Fit the screw cover (sup-
plied on magnet holder
cluster) to the guard
cover.
Insert
a
small
s c r e w d r i v e r
the notch provided to
remove
the
holder, then move it
in rotation.
Fixing and connecting of remote contact
See diagrams
C
G
The use of contacts D8931 and D8932
requires connecting only blue and green wires.
Summary of opening and closing dis-
tances
The built-in contact of the device uses such dis-
tances between the multicontact detector and the
magnet to record any change of window position
(see attached table
Configuration
The device can be configured in 3 different ways :
• quicklink& : configuration without tool, see User's
Instructions supplied with the radio transmitters.
• tebis TX : configuration using connection device
from hager.
• ETS3/ETS4 via KNX-RF/TP gateway : database
and description of software application available
from the manufacturer.
Press
pushbutton once at connection device's
R
learning phase or for addressing in ETS. (See
diagram
F
).
C
5 mm
max.
70 mm
the
Cover
flat
i n
magnet
and
E
.
D
).
Input selection
• Input 0 : opening detection - state indication
(not available in quicklink& )
• Input 1 : function contact switch.
In configuration mode, the inputs are selected by a
short press of key
for input 0 and a long press
A
( > 5 seconds) for input 1.
G
Product
factory
return
to
change
the
configuration
Indicator operation
A
Empty batteries
- Red flashing 1 sec.
Automatic mode
- Orange flashing
Window opening
1 sec. if no link is confi-
or closing
gured
- Green flashing 100 ms if
link is configured
Changing the
mode by pressing
key
A
Auto.→ Stop
- Lit red 1 sec.
Stop → Auto.
- Lit green 1 sec.
Remote contact
It is possible to connect a remote contact in order
to increase the capabilities of the detector(floating
contact, no voltage must be applied to the wired
inputs).
The two contacts (window + remote contact) are
handled as an "OR" logic function. To activate
detection by the remote contact, its window must
be activated at least once. To remove an already
active remote contact, the product must be reset
by removing the batteries for 30 sec.
Factory reset
Keep pushbutton
R
down until the LED flashes
(>10s) then release it.
LED cfg turns off when factory reset is completed.
This operation deletes completely product configu-
ration. After factory return, wait 15s before doing a
new configuration.
Accessories
D8924 Projection opening contact with connector
block, wire.
D8931 Universal opening contact, protection,
white, wire.
D8932 Universal opening contact, protection,
brown, wire.
Accessories not available in all markets. It is pos-
sible to use other floating magnetic contacts but
operation is not guaranteed.
This device is to be installed only by
a professional electrician fitter according
TRC301A_T1_09
to local applicable installation standards.
Conform to SELV installation rules.
Not to be installed outside.
å
Usable throughout Europe
Hager Controls hereby declares that the radio opening
detector device complies with the essential
requirements and other relevant provisions of Directive
2014/53/EU. The CE declaration is available
on the www.hagergroup.com site.
is
required
mode.
and in Switzerland
6LE003141A
