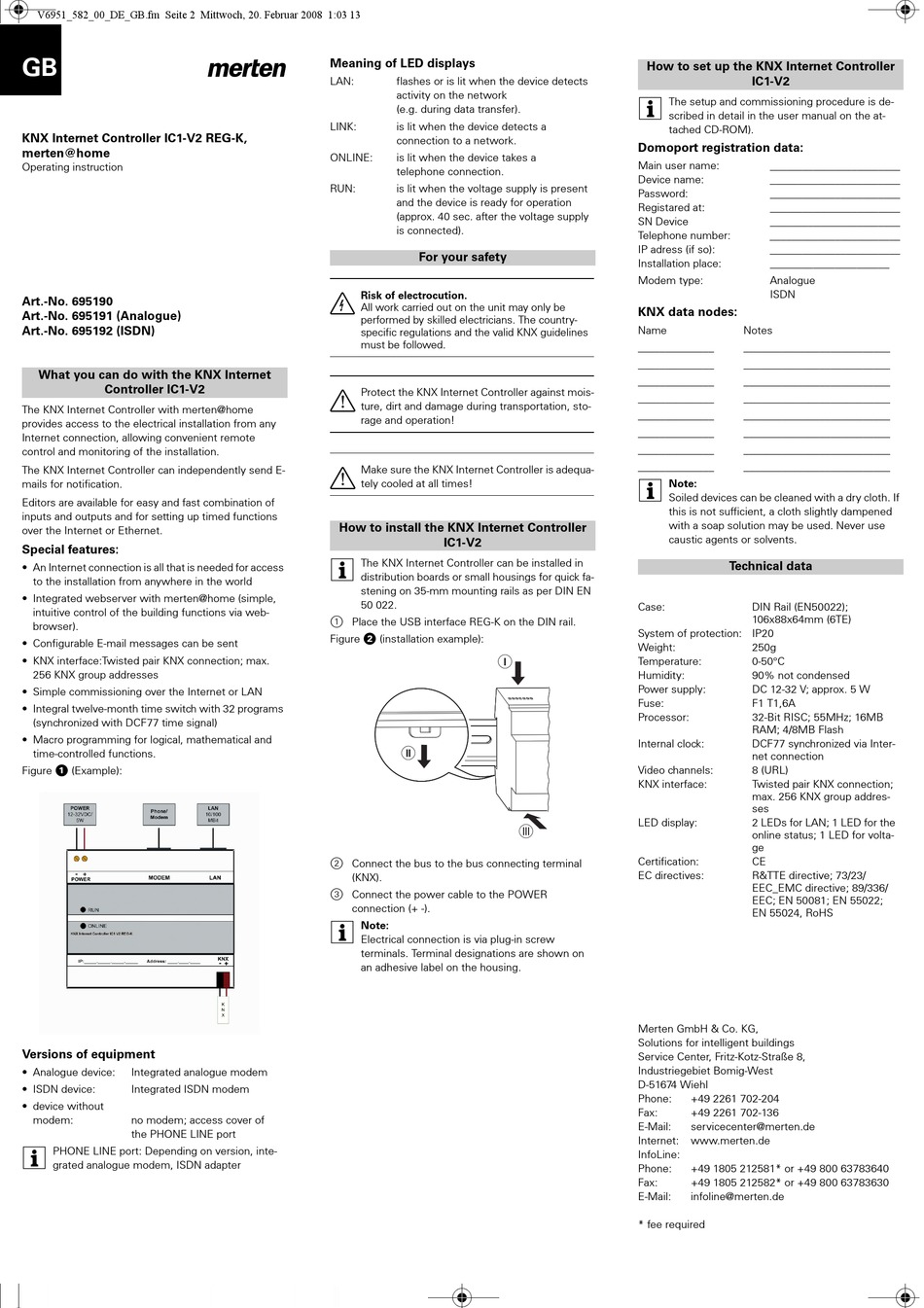

GB
KNX Internet Controller IC1-V2 REG-K,
merten@home
Operating instruction
Art.-No. 695190
Art.-No. 695191 (Analogue)
Art.-No. 695192 (ISDN)
What you can do with the KNX Internet
Controller IC1-V2
The KNX Internet Controller with merten@home
provides access to the electrical installation from any
Internet connection, allowing convenient remote
control and monitoring of the installation.
The KNX Internet Controller can independently send E-
mails for notification.
Editors are available for easy and fast combination of
inputs and outputs and for setting up timed functions
over the Internet or Ethernet.
Special features:
• An Internet connection is all that is needed for access
to the installation from anywhere in the world
• Integrated webserver with merten@home (simple,
intuitive control of the building functions via web-
browser).
• Configurable E-mail messages can be sent
• KNX interface:Twisted pair KNX connection; max.
256 KNX group addresses
• Simple commissioning over the Internet or LAN
• Integral twelve-month time switch with 32 programs
(synchronized with DCF77 time signal)
• Macro programming for logical, mathematical and
time-controlled functions.
Figure ! (Example):
Versions of equipment
• Analogue device:
Integrated analogue modem
• ISDN device:
Integrated ISDN modem
• device without
modem:
no modem; access cover of
the PHONE LINE port
|
PHONE LINE port: Depending on version, inte-
grated analogue modem, ISDN adapter
Meaning of LED displays
LAN:
flashes or is lit when the device detects
activity on the network
(e.g. during data transfer).
LINK:
is lit when the device detects a
connection to a network.
ONLINE:
is lit when the device takes a
telephone connection.
RUN:
is lit when the voltage supply is present
and the device is ready for operation
(approx. 40 sec. after the voltage supply
is connected).
For your safety
¼
Risk of electrocution.
All work carried out on the unit may only be
performed by skilled electricians. The country-
specific regulations and the valid KNX guidelines
must be followed.
½
Protect the KNX Internet Controller against mois-
ture, dirt and damage during transportation, sto-
rage and operation!
½
Make sure the KNX Internet Controller is adequa-
tely cooled at all times!
How to install the KNX Internet Controller
IC1-V2
|
The KNX Internet Controller can be installed in
distribution boards or small housings for quick fa-
stening on 35-mm mounting rails as per DIN EN
50 022.
1 Place the USB interface REG-K on the DIN rail.
Figure " (installation example):
2 Connect the bus to the bus connecting terminal
(KNX).
3 Connect the power cable to the POWER
connection (+ -).
|
Note:
Electrical connection is via plug-in screw
terminals. Terminal designations are shown on
an adhesive label on the housing.
How to set up the KNX Internet Controller
IC1-V2
|
The setup and commissioning procedure is de-
scribed in detail in the user manual on the at-
tached CD-ROM).
Domoport registration data:
Main user name:
________________________
Device name:
________________________
Password:
________________________
Registared at:
________________________
SN Device
________________________
Telephone number:
________________________
IP adress (if so):
________________________
Installation place:
______________________
Modem type:
Analogue
ISDN
KNX data nodes:
Name
Notes
______________
___________________________
______________
___________________________
______________
___________________________
______________
___________________________
______________
___________________________
______________
___________________________
______________
___________________________
______________
___________________________
|
Note:
Soiled devices can be cleaned with a dry cloth. If
this is not sufficient, a cloth slightly dampened
with a soap solution may be used. Never use
caustic agents or solvents.
Technical data
Case:
DIN Rail (EN50022);
106x88x64mm (6TE)
System of protection: IP20
Weight:
250g
Temperature:
0-50°C
Humidity:
90% not condensed
Power supply:
DC 12-32 V; approx. 5 W
Fuse:
F1 T1,6A
Processor:
32-Bit RISC; 55MHz; 16MB
RAM; 4/8MB Flash
Internal clock:
DCF77 synchronized via Inter-
net connection
Video channels:
8 (URL)
KNX interface:
Twisted pair KNX connection;
max. 256 KNX group addres-
ses
LED display:
2 LEDs for LAN; 1 LED for the
online status; 1 LED for volta-
ge
Certification:
CE
EC directives:
R&TTE directive; 73/23/
EEC_EMC directive; 89/336/
EEC; EN 50081; EN 55022;
EN 55024, RoHS
Merten GmbH & Co. KG,
Solutions for intelligent buildings
Service Center, Fritz-Kotz-Straße 8,
Industriegebiet Bomig-West
D-51674 Wiehl
Phone:
+49 2261 702-204
Fax:
+49 2261 702-136
E-Mail:
servicecenter@merten.de
Internet:
www.merten.de
InfoLine:
Phone:
+49 1805 212581* or +49 800 63783640
Fax:
+49 1805 212582* or +49 800 63783630
E-Mail:
infoline@merten.de
* fee required
