(4) Power supply
(5) Power switch
(6) DMX-In socket
(7) USB-socket
(8) Status-LED
(9) RJ-45 socket

5. SETUP

5.1 Installation

Install the device on a plane surface.
Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.
With the POWER-switch, you can switch the device on and off.

5.2 DMX-512 connection

The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the wireless sender or one fixture with another.

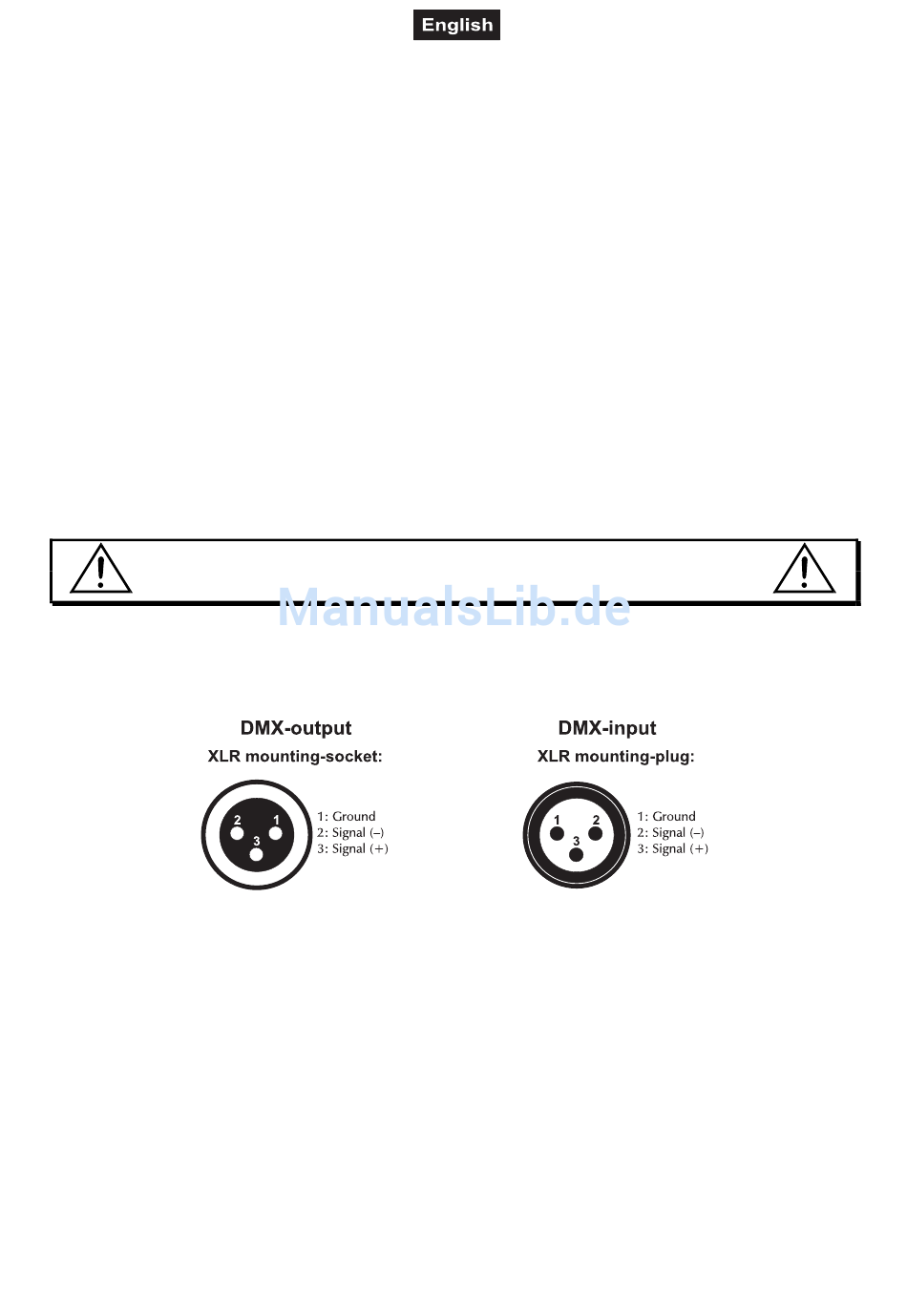

Occupation of the XLR-connection:
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect one output with the input of the next fixture until all fixtures are connected.

6. OPERATION

After you connected the device to the mains, the WDS-1 is ready for use. Switch the device on via the
Power-switch.
